Component Inspection

Automatic Transaxle
P2709 Shift Control Solenoid Valve \'F\' Electrical (SS-B) - Inspection/Repair:_:Component Inspection

Component Inspection

Shift control solenoid valve(SS-B) Inspection
1. Ignition off & Engine Off.
2. Disconnect "ATM solenoid valve connector.

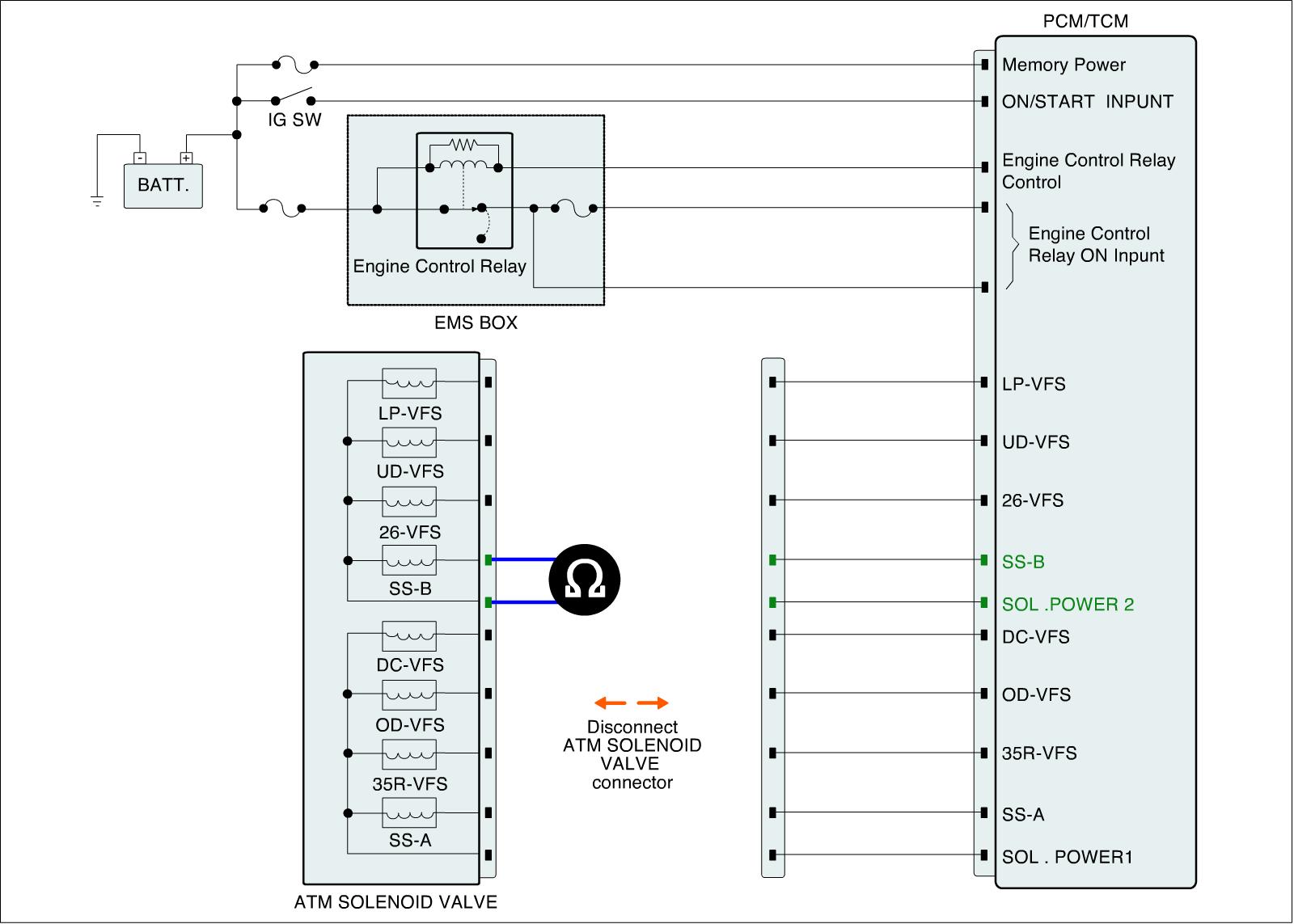

3. Measure a resistance between "Shfit control solenoid valve(SS-B) " terminal and power at ATM solenoid valve connector.

Specification :10 - 11 Ohms( 20°C )

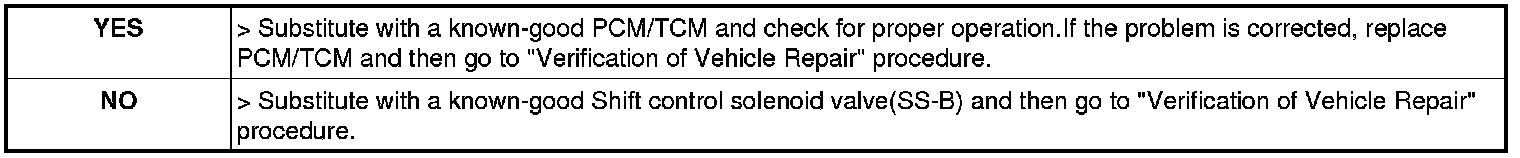

4. Is measured resistance within specification?
