P259E Turbocharger \'A\' Boost Control Position At Low Limit - General Information

Component Location





General Description

Turbo charger controlled by ECU is being applied recently. ECU calculates the optimized fuel ratio by measuring the accurate air mass from turbo charger.
If the boost pressure from intake manifold reaches target pressure value, ECU makes a part of exhaust gas bypass.
Concentrated mix gas makes much higher horse power in explosion cycle.

DTC Description

ECU shows this DTC when closing PWM of EWGA motor control is lower than -98% because of the fault of EWGA position.
* Closing PWM is controlled by (-) duty and opening PWM is (+) duty.

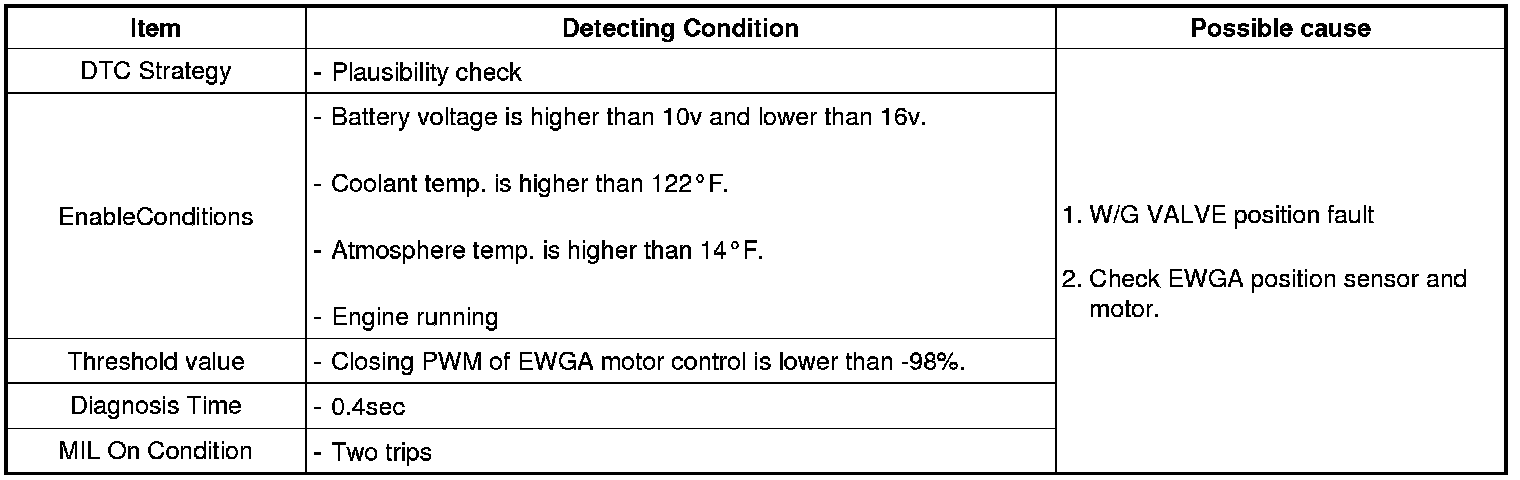

DTC Detecting Condition

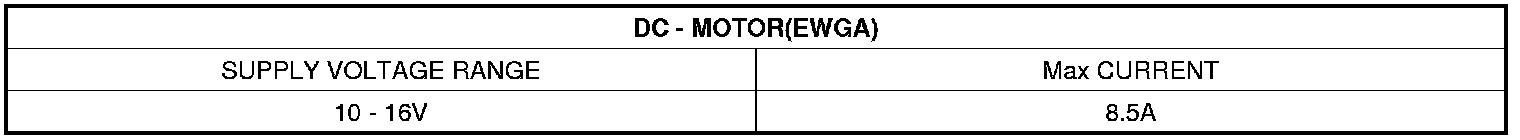

Specification









Diagnostic Circuit Diagram





Signal Waveform & Data
