P2503 No Battery Charge - Inspection/Repair:_:System Inspection

System Inspection

Check Generator circuit
1. Engine starts.
2. Maintain ENG RPM 2,500RPM over 2 minutes.

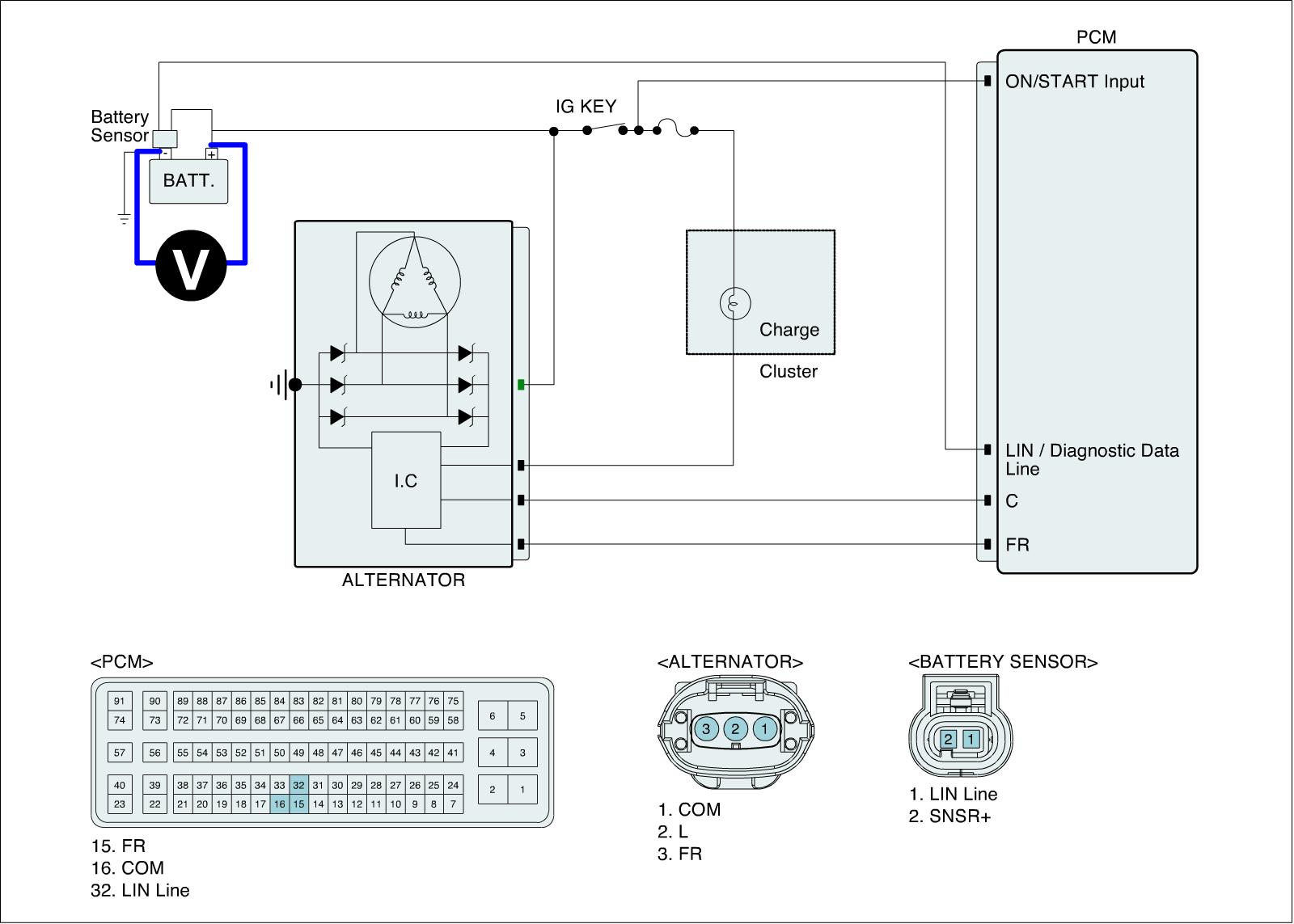

3. Measure voltage between the battery terminal(+) and the battery terminal(-).

Specification :Approx. 12.5 - 14.7V

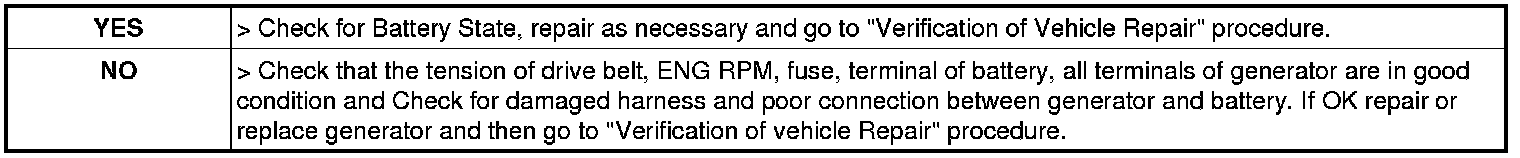

4. Is the measured voltage within specification?
