P2503 No Battery Charge - General Information

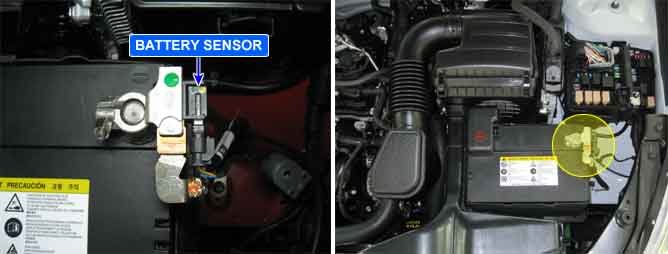

Component Location





General Description

Many control units have applied to vehicle as it becomes more eletrolnical. These units control their own system based on information from diverse sensors. Therefore necessity of common use of diverse sensor information and importance of stable power supply are gathering strength. Battery sensor is mounted on battery (-) terminal. It transmits battery voltage, current, temperature information to PCM. PCM controls generating voltage by duty cycle based on these signals.

DTC Description

PCM sets this code when the battery charging current from battery sensor is too low.

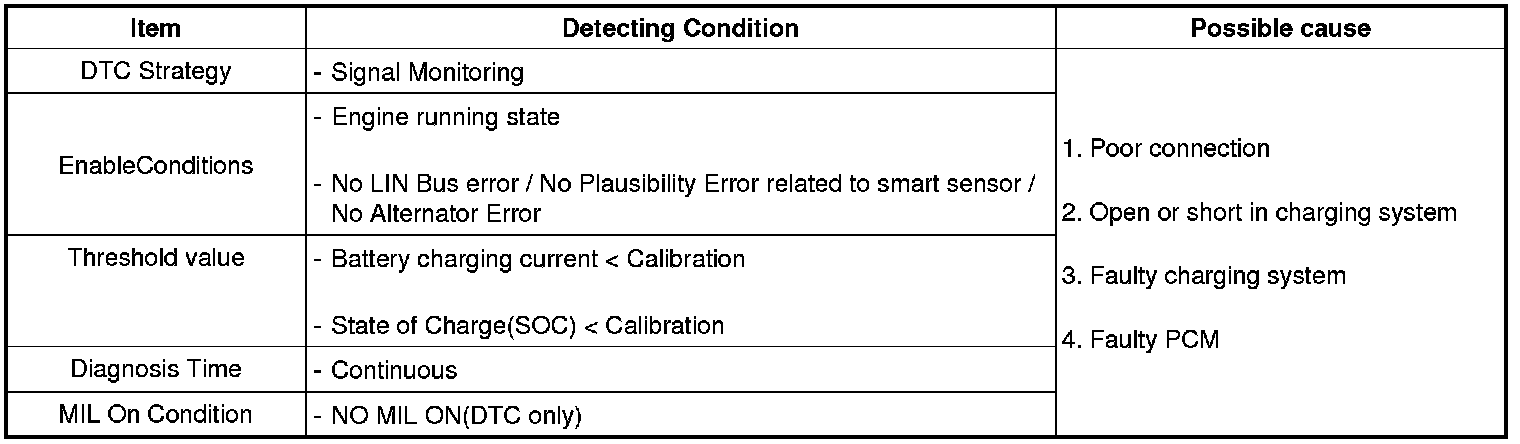

DTC Detecting Condition

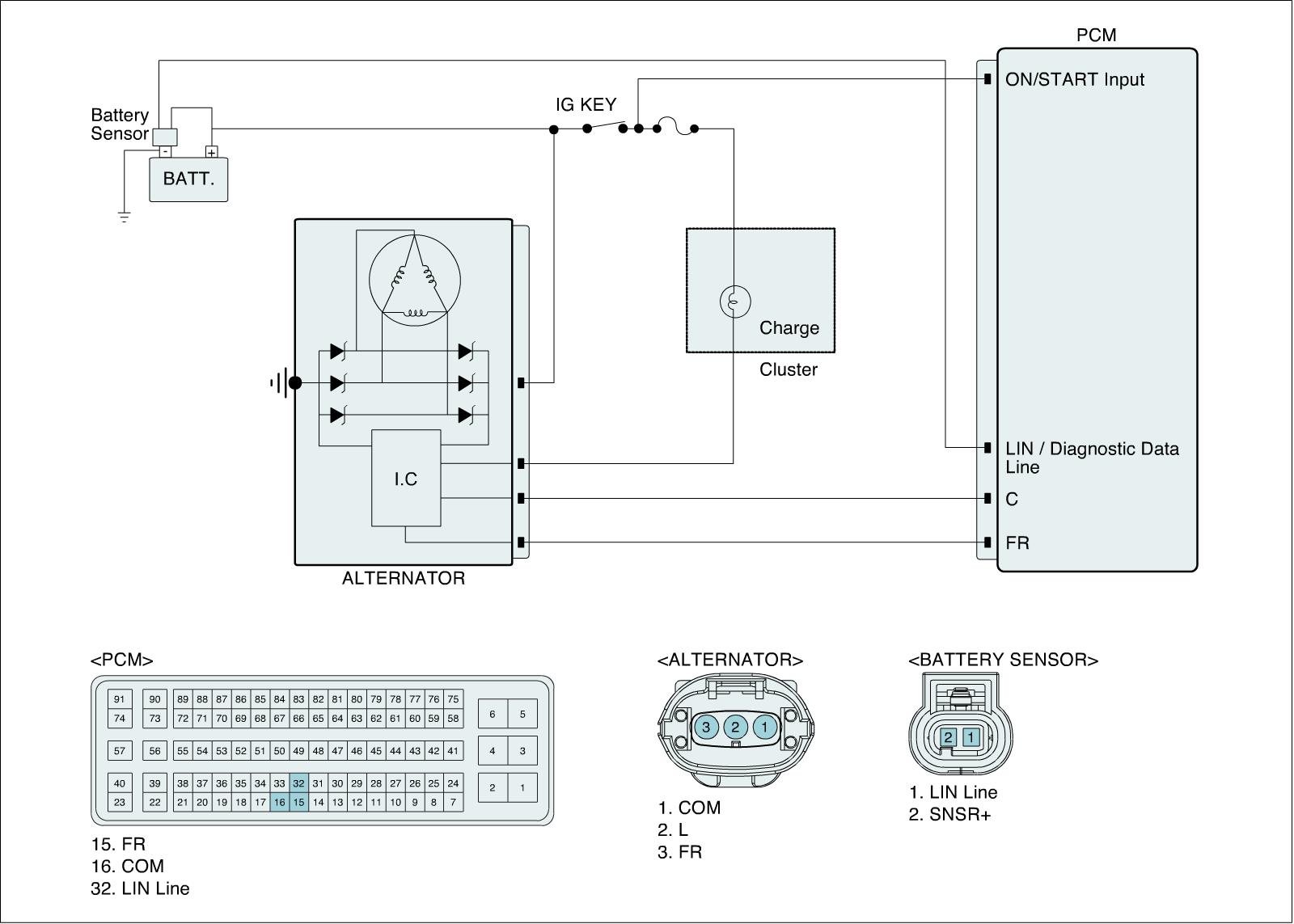

Diagnostic Circuit Diagram





Signal Waveform & Data

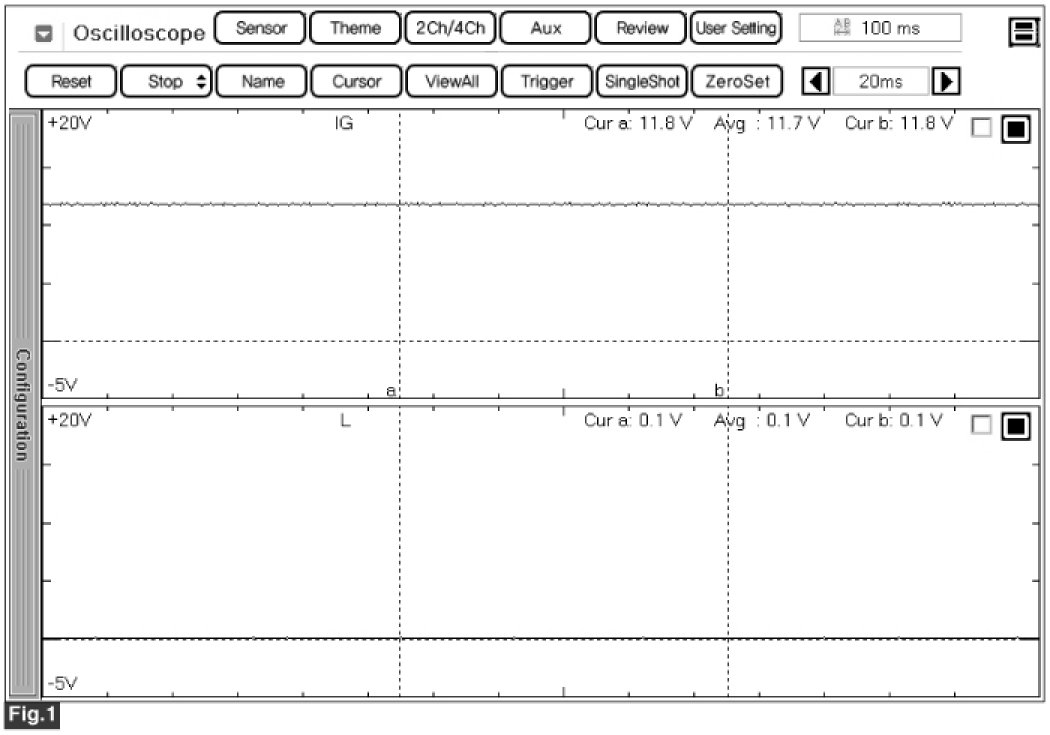

Fig.1) Normal waveforms of IG, L terminal of alternator during charge warning lamp is ON.

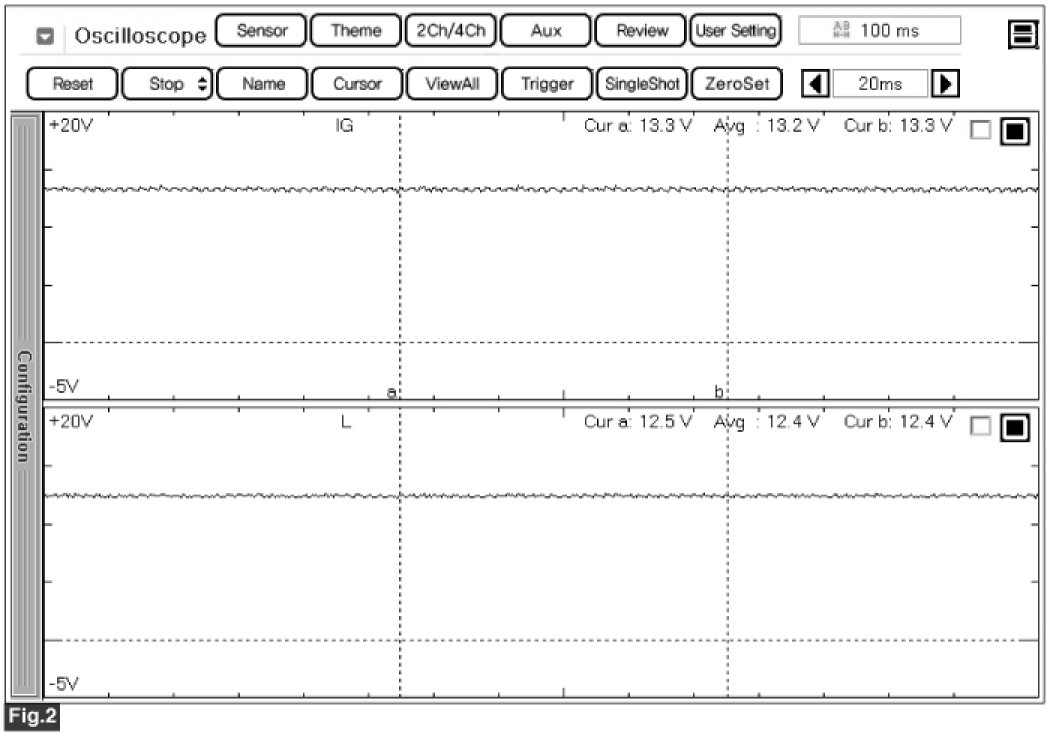

Fig.2) Normal waveforms of IG, L terminal of alternator during charge warning lamp is OFF.

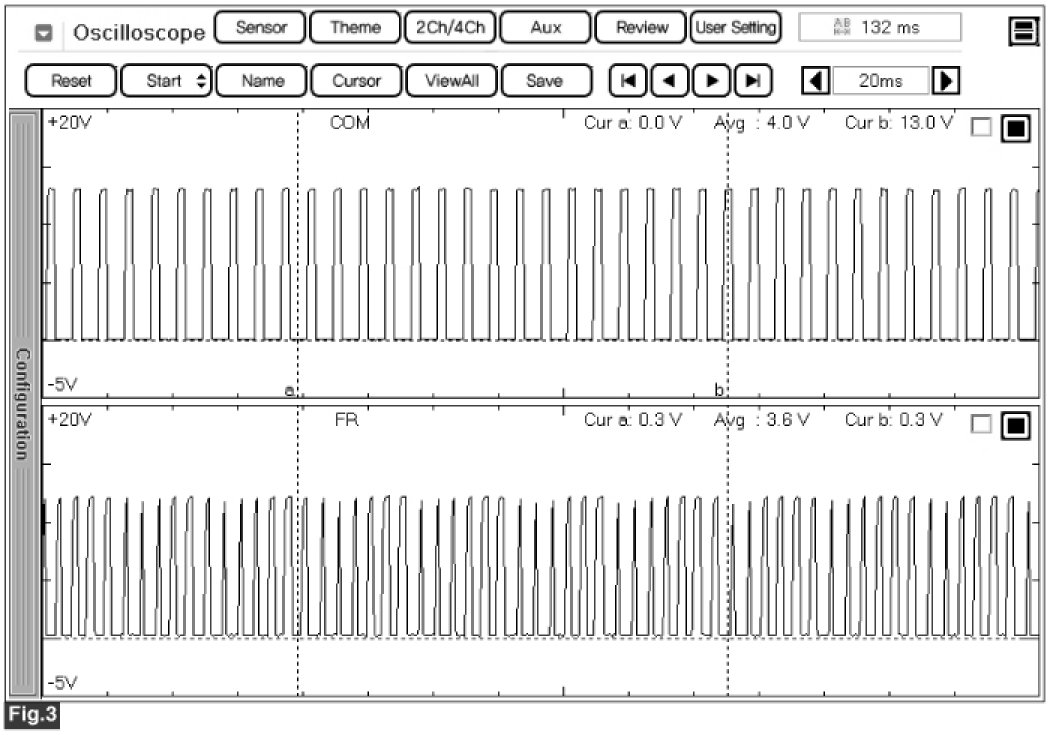

Fig.3) Normal waveforms of COM, FR terminal of alternator at idle.

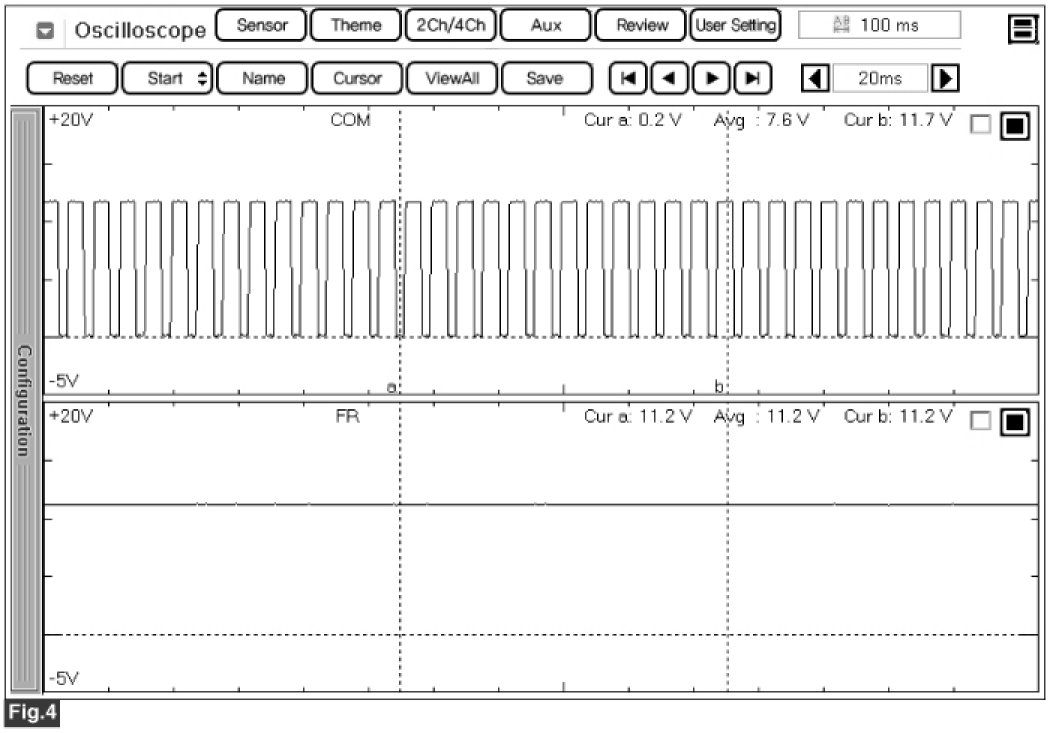

Fig.4) Normal waveforms of COM, FR terminal of alternator under connector disconnected condition.
