Component Inspection

Engine Control
P2502 Battery Voltage Rationality - Inspection/Repair:_:Component Inspection

Component Inspection

1. Replace battery sensor.
2. IG "OFF".
3. Connect GDS to Data Link Connector(DLC).
4. Clear DTC and Test-drive under enable conditions above-mentioned.

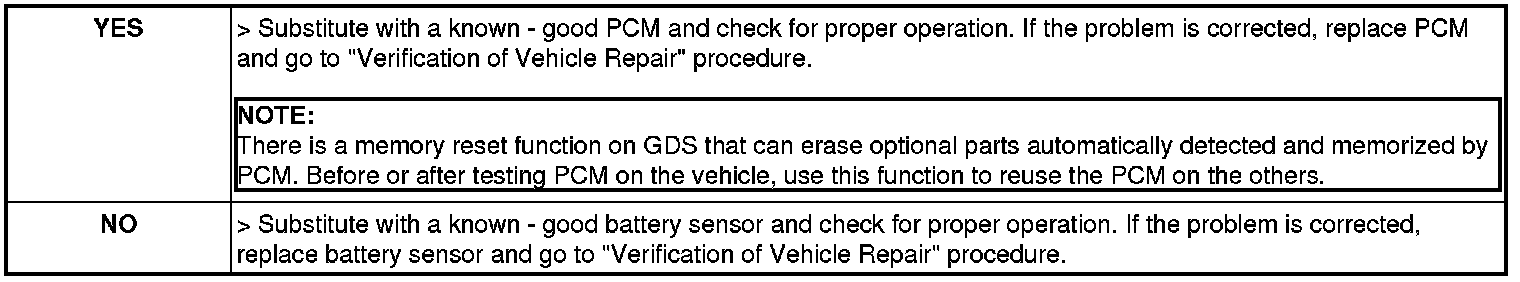

5. Does the GDS show DTC "P2502"?
