Component Inspection

Engine Control
P2261 Turbocharger/Supercharger Bypass Valve - Mechanical - Inspection/Repair:_:Component Inspection

Component Inspection

1. Select 'Actuation Test' mode and execute 'Turbo Charger Bypass Valve' item.

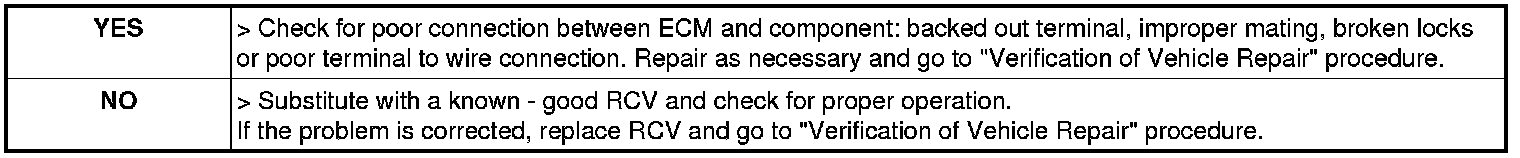

2. Is the waveform normal?





3. Resistance Inspection
(1) Ignition "OFF".

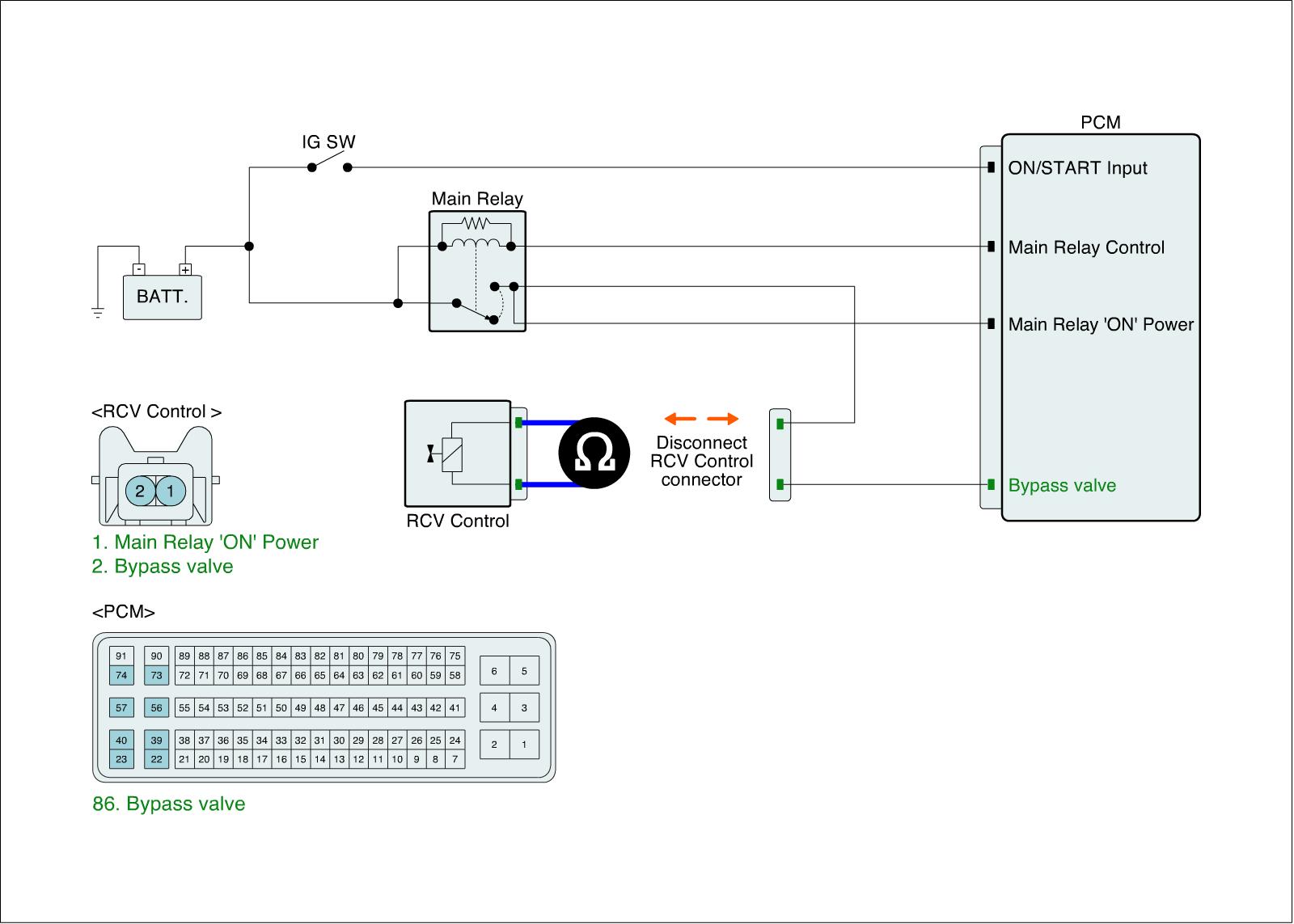

(2) Measure resistance between power terminal and control terminal of the sensor connector (Component side)
Specification :

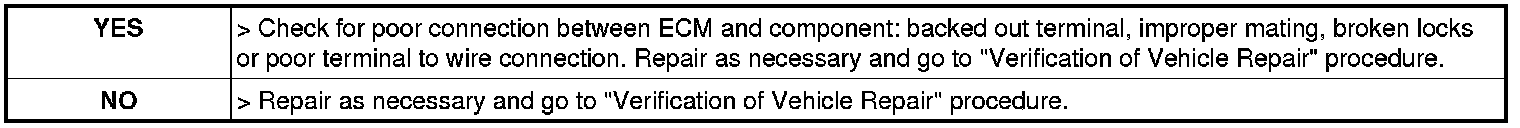

(3) Is resistance within the specification?
