Component Inspection





Engine Control
P2149 Fuel Injector Group \'B\' Supply Voltage Circuit/Open - Inspection/Repair:_:Component Inspection

Component Inspection

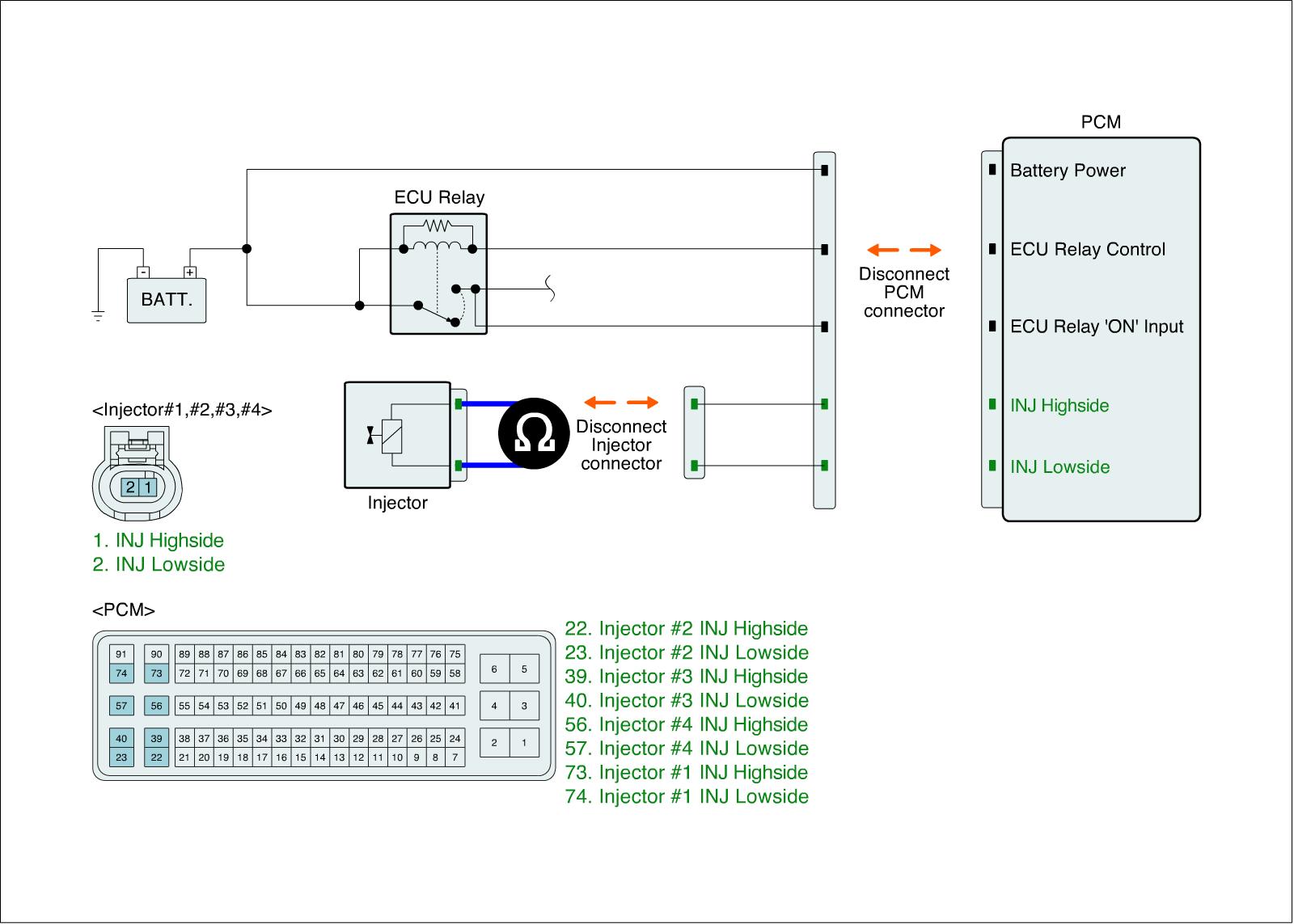

1. IG OFF.
2. Disconnect the Injector connector.
3. Measure the resistance of the Injector.
Specification :

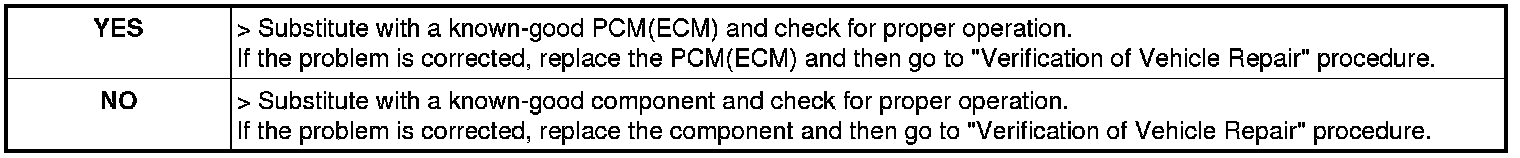

4. Is the measured resistance within specifications?
