General Information

Engine Control
P2135 Throttle/Pedal Position Sensor/Switch A/B Voltage Correlation - General Information

Component Location





General Description

The Electronic Throttle Control(ETC) system consists of the throttle body, Throttle Position Sensor(TPS)1&2 and Accelerator Position Sensor(APS) 1&2.
TPS1&2 are sharing the same source voltage and ground. The throttle valve opening is control by throttle motor which is controlled by Engine Control Module(PCM). The opposite position indicator shows inverted signal characteristics. TPS1 output voltage increases smoothly in proportion with the throttle valve opening angle after starting. TPS2 output voltage decreases in inverse proportion with the throttle valve opening angle after starting. TPS provides feedback to the PCM to control the throttle motor in order to control the throttle valve opening angle properly in response to the driving condition.

DTC Description

ECU shows P2135 when TPS1 and TPS2 voltage correlation is higher than 8 degree.

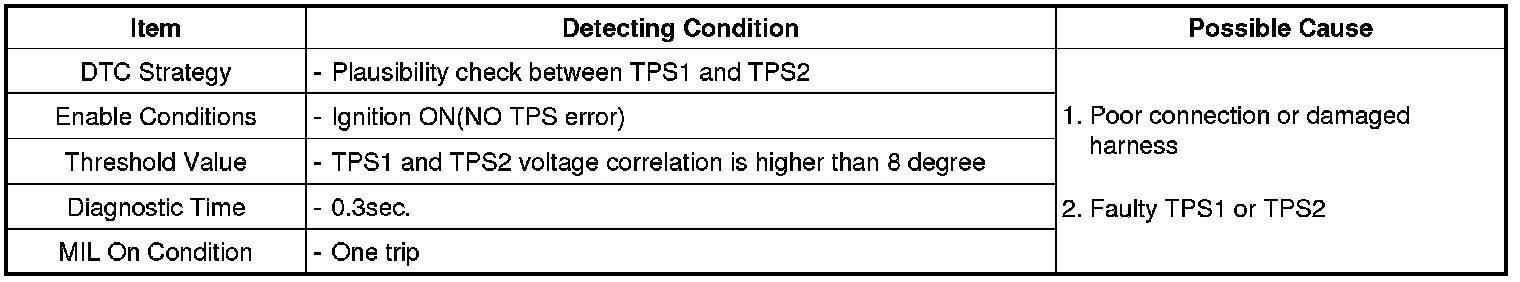

DTC Detecting Condition





Diagnostic Circuit Diagram





Signal Waveform & Data

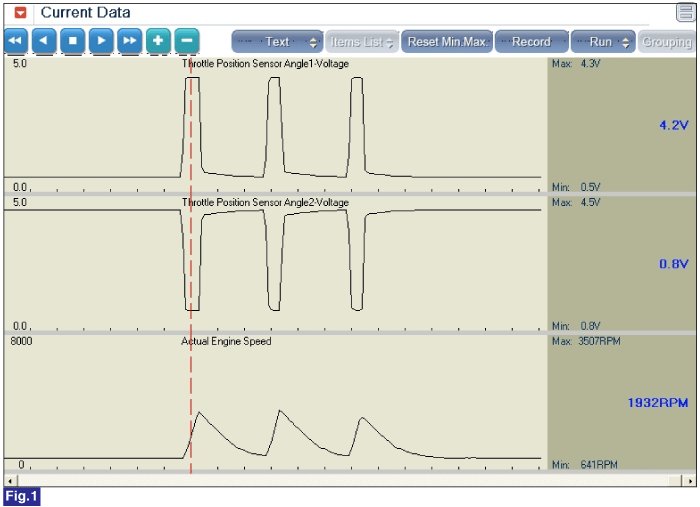

Fig 1) Comparison of TPS1 and TPS2 during engine acceleration
