Scantool Diagnostics

Immobilizer
P1699 Immobilizer-Twice Overtrial - Scantool Diagnostics

Monitor Scantool Data

1. Check status.
(1) IGN "ON" & Engine "OFF".
(2) Monitor the "PCM, Key and Smartra Status" Parameter on the Scantool.

Specification :'LEARNT'




Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

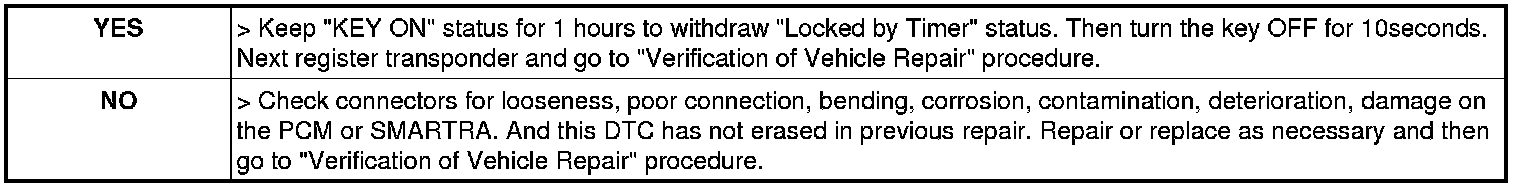

(3) Is the "ECU STATUS" Parameter "Locked" ?
