P1696 Immobilizer-Authentication Fail - Scantool Diagnostics

Monitor Scantool Data

1. IG KEY "ON" & Engine "OFF".
2. Erase DTC after connecting GDS.
3. Check Smart Key PCM status parameter if DTC is retrieved.

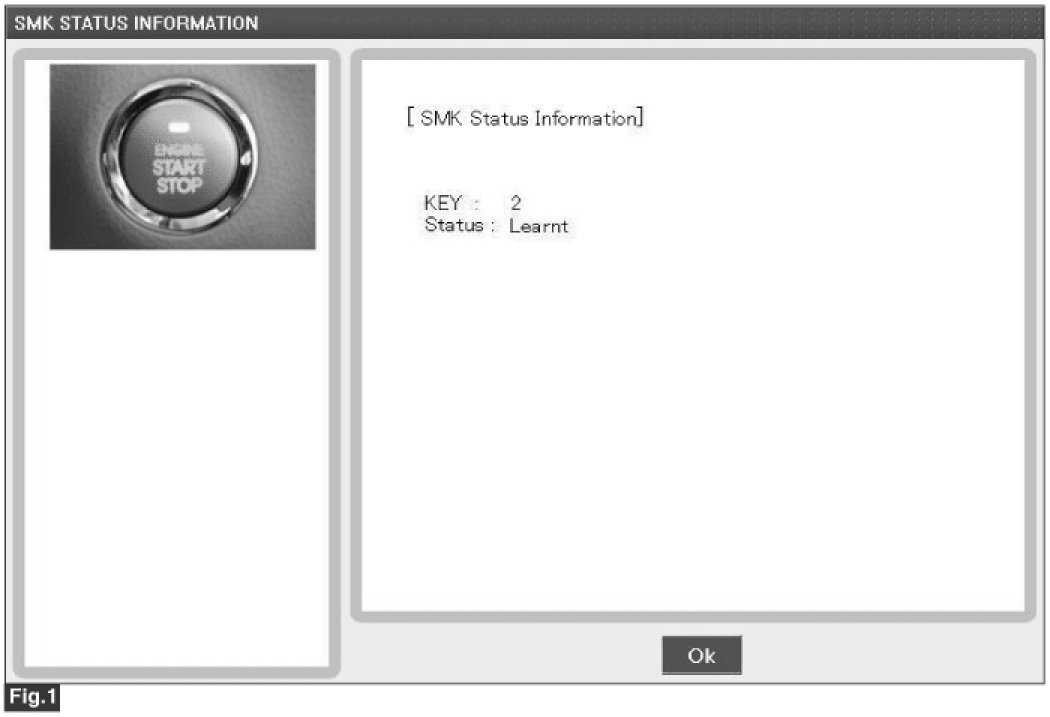

Fig.1) It shows that 2(two) FOB key is registered, Smart Key PCM is learnt status.

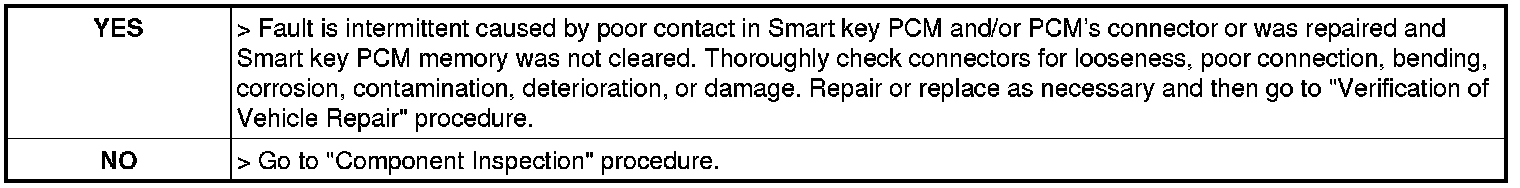

4. Is the smart Key PCM learnt ?
