General Information

Smart Key Code Saving
P1695 Immobilizer-EMS Memory Error - General Information

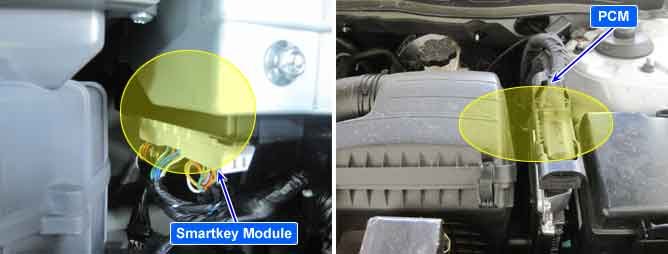

Component Location





General Description

Information related immobilizer,that are classified as 2(two) parts independently, is memorized in EEPROM. PCM check these 2(two) information berfore proceeding immobilizer authentication. With synchronized both information, PCM starts immobilizer authentication procedure. If both information is not synchronized, PCM stops immobilizer authentication, Limphome function will not be activated, and memorizes DTC P1695. If DTC P1695 is retrieved again, after performing new key teaching procedure, PCM should be replaced with new one.

DTC Description

If key/password information in PCM is not matching or there is write error on EEPROM as hardware, DTC P1696 is set.

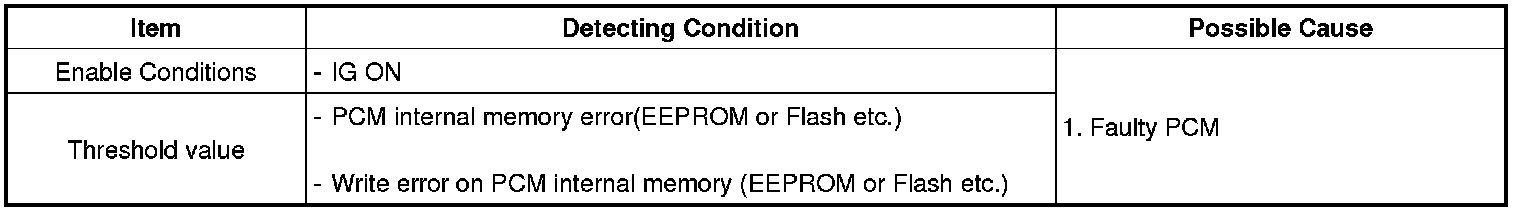

DTC Detecting Condition

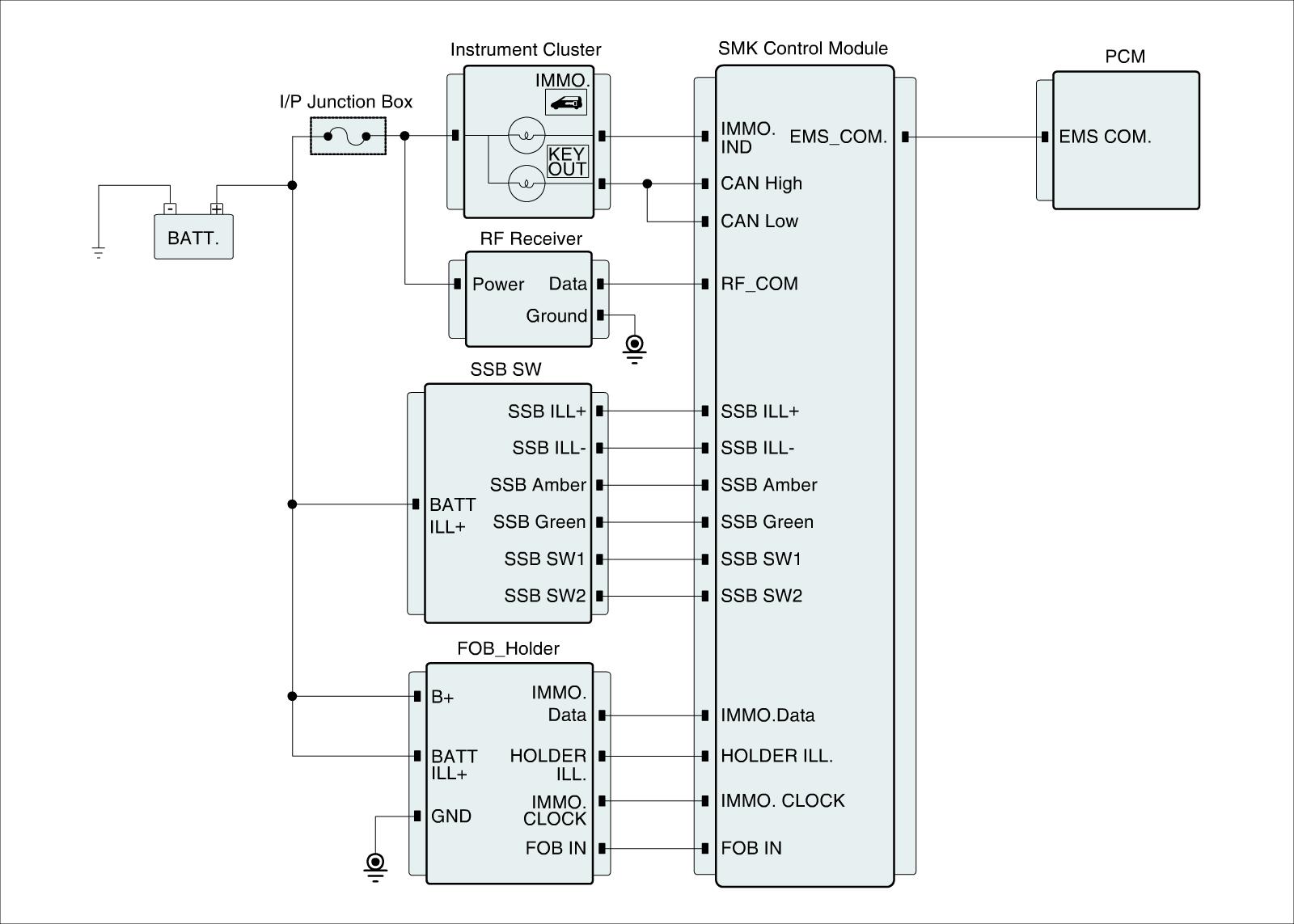

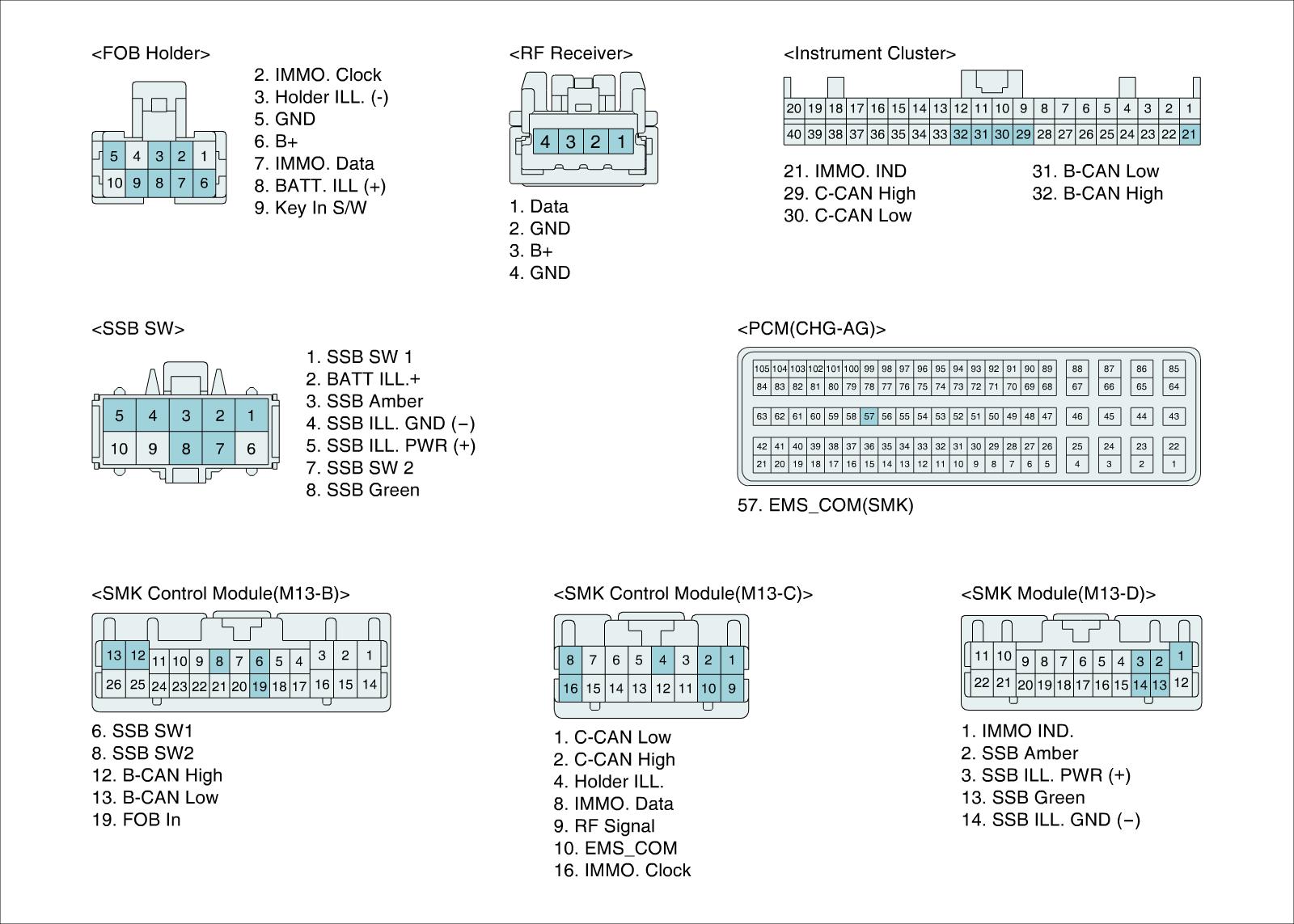

Diagnostic Circuit Diagram










Signal Waveform & Data




Fig.1) It shows that ECU is learnt status.
