Component Inspection

Immobilizer
P1695 Immobilizer-EMS Memory Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. Check PCM.
(1) IGN "ON" & Engine "OFF".
(2) Neutralize PCM and Register transponder key by scantool.

NOTE:
Pin code is requied to Neutralize PCM and to Register transponder key

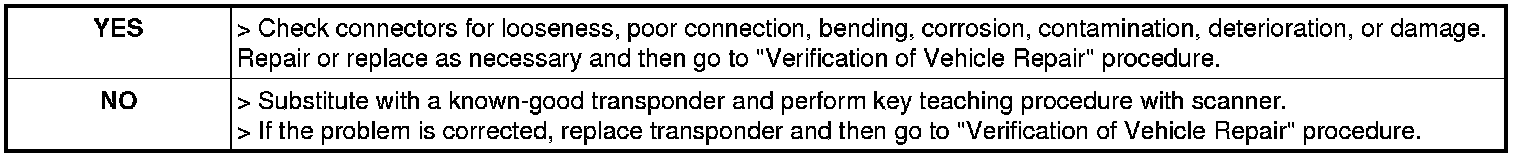

(3) Are Neutralizing and Registering completed normally ?






NOTE:
PCM substitued for old one must be in "Virgin" or "Neutral" status and Pin code is required to Neutralize PCM and to Register transponder key
