Component Inspection

Immobilizer
P1692 Immobilizer Indicator Lamp Error - Inspection/Repair:_:Component Inspection

Visual/Physical Inspection

Check immobilizer lamp circuit
1. Ignition "ON" & Engine "OFF".
2. Check if immobilizer lamp operates properly.

NOTE:
Right after ignition "ON", Immobilizer lamp lights up for 30sec.
If lamp blinks 5 times after ignition "ON", a fault exists in immobilizer system.

3. Is the immobilizer lamp operating properly?






Component Inspection

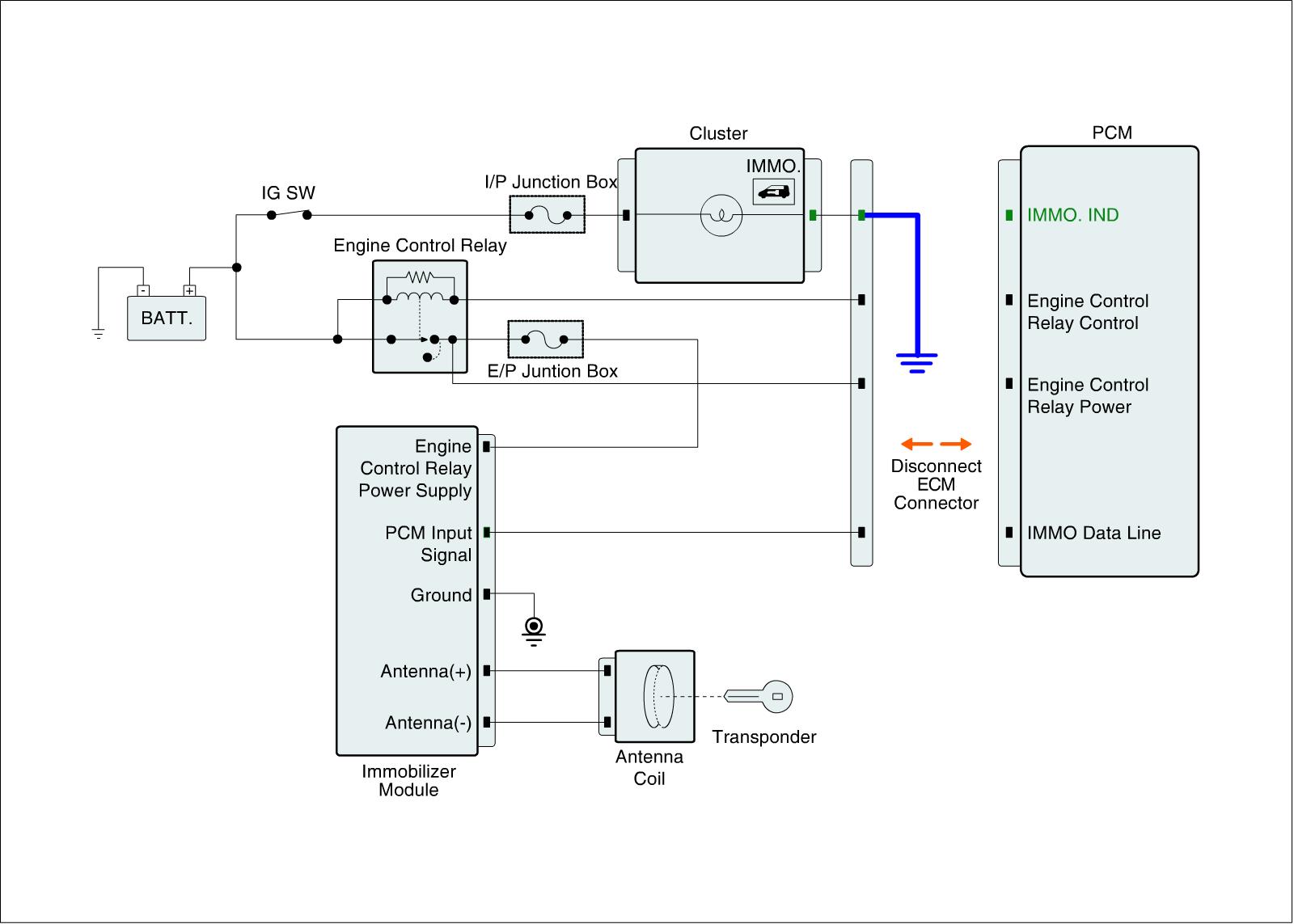

Check immobilizer lamp.
1. IG KEY OFF.
2. Connect SMARTRA connector and disconnect PCM connector.
3. Ground indicator terminal of PCM harness connector with wire.
4. IG KEY ON & Engine "OFF".

Specification :Immobilizer lamp "ON"

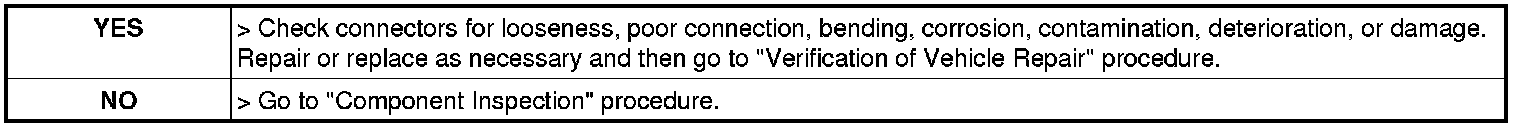

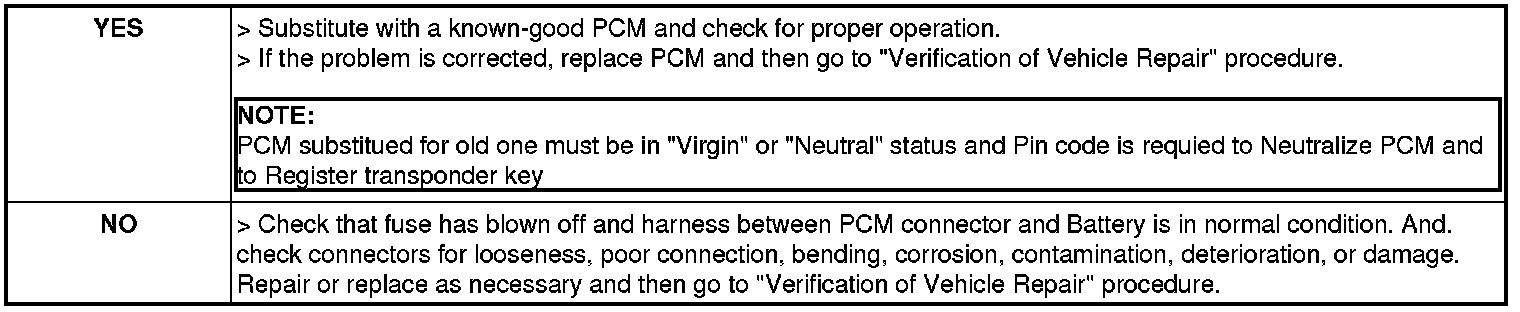

5. Is the Immobilizer lamp "ON" ?
