Component Inspection

Immobilizer
P1691 Immobilizer-Antenna Coil Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. Check coil antenna.
(1) Ignition "OFF".

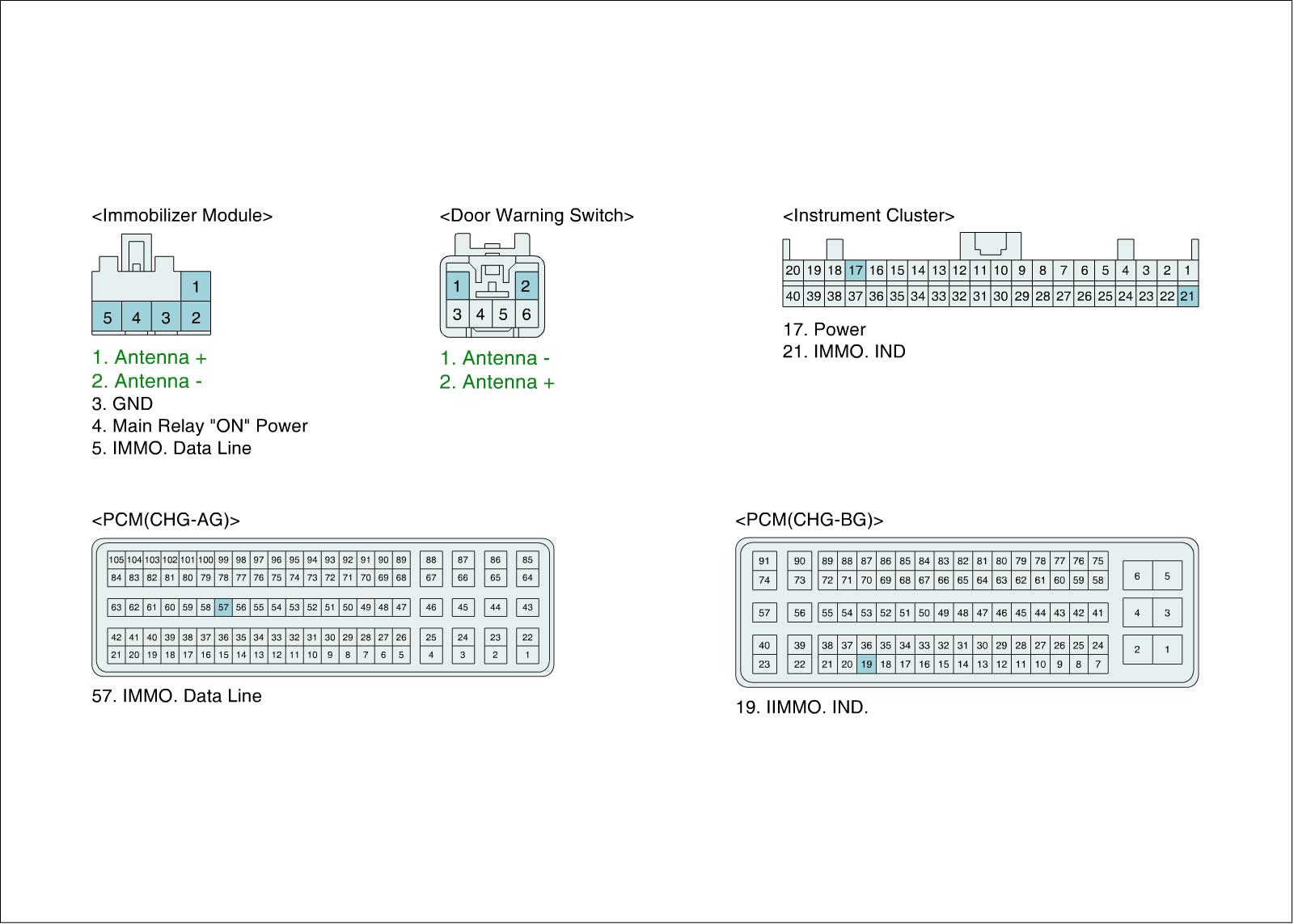

(2) Disconnect SMARTRA connector.

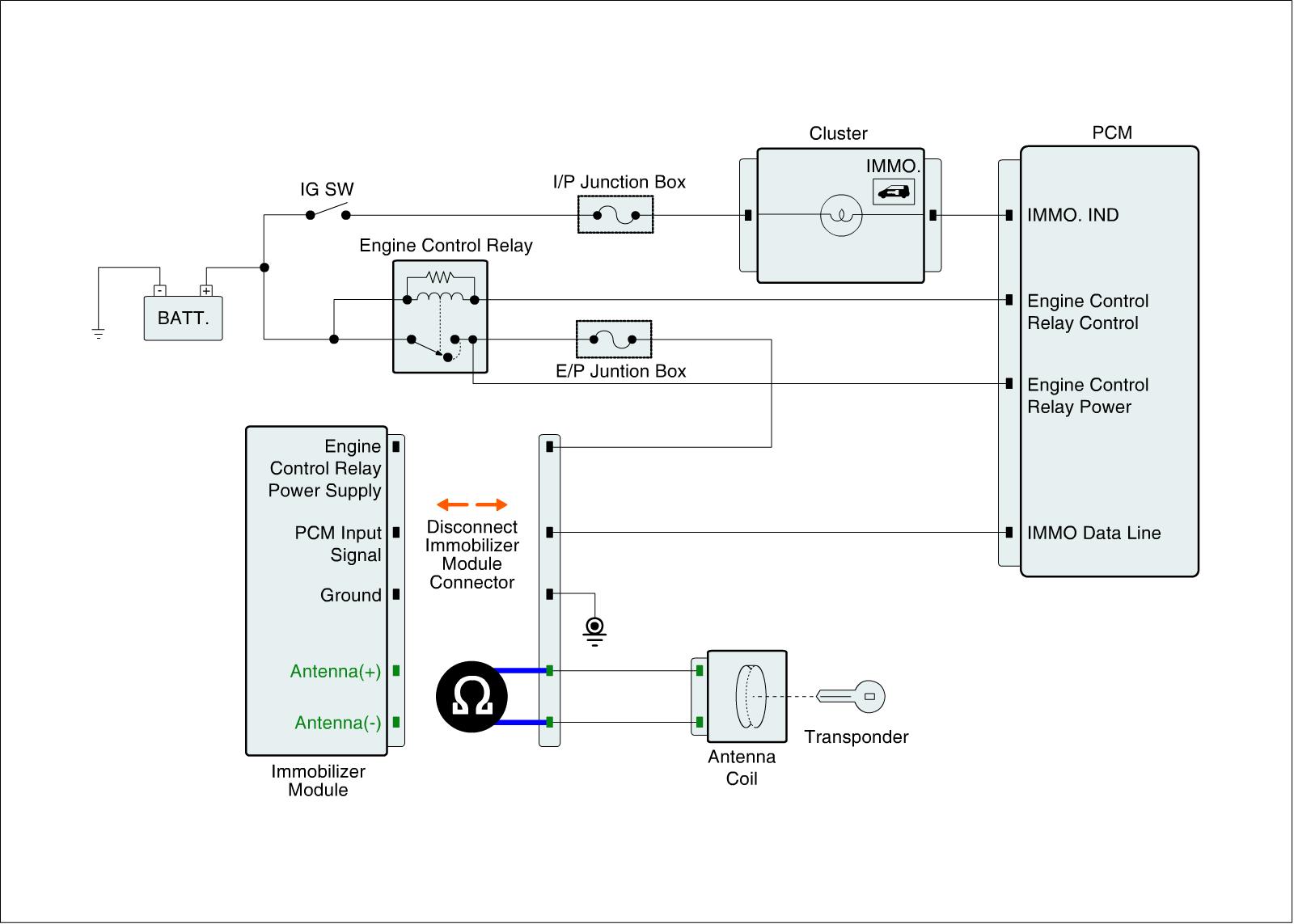

(3) Measure resistance between antenna coil(+) and (-) terminal of SMARTRA harness connector.

Specification :Approx 8.5 Ohms

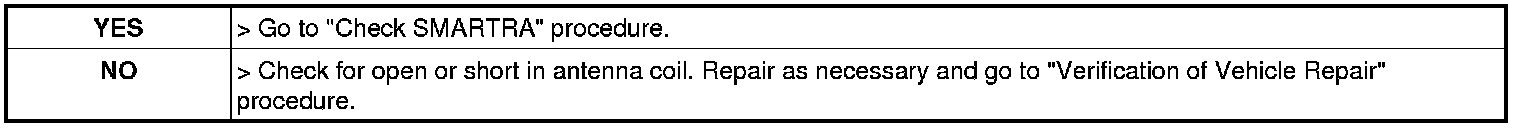

(4) Is the measured resistance within specifications ?





2. Check SMARTRA.
(1) IGN "ON" & Engine "OFF".
(2) Neutralize Both "SMARTRA" and "PCM" and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize SMARTRA and to Register transponder key

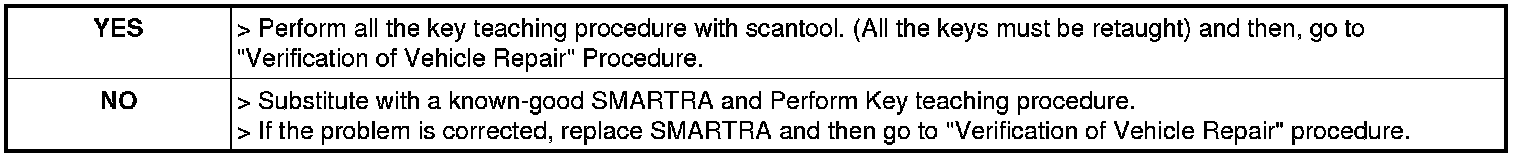

(3) Are Neutralizing and Registering completed normally ?
