Component Inspection

Immobilizer
P1690 Immobilizer-Smartra No Response - Inspection/Repair:_:Component Inspection

Component Inspection

1. Check SMARTRA.
(1) IG"ON" & Engine "OFF".
(2) Neutralize Both "SMARTRA" and "PCM" and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize SMARTRA and to Register transponder key

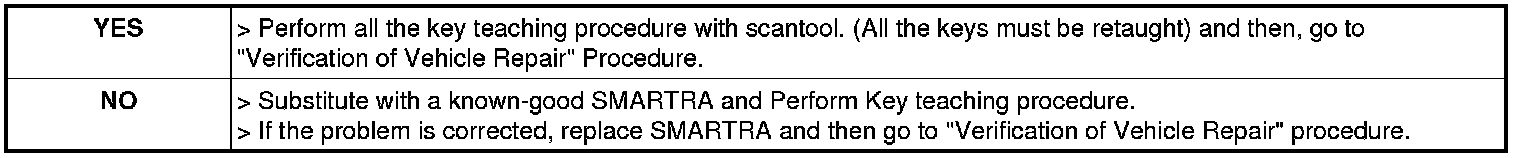

(3) Are Neutralizing and Registering completed normally ?
