Scantool Diagnostics

Immobilizer
P1676 Immobilizer-Smartra Message Error - Scantool Diagnostics

Monitor Scantool Data

1. Check transponder and ECU status.
(1) IGN "ON" & Engine "OFF" with key intended to register.
(2) Monitor the "ECU, KEY, Smartra STATUS" Parameter on the Scantool.

Specification :'LEARNT'




Fig.1) This data show that 3 keys have been taught, ECU has been learnt, the Key in key cylinder has been learnt and SMARTRA3 has been learnt

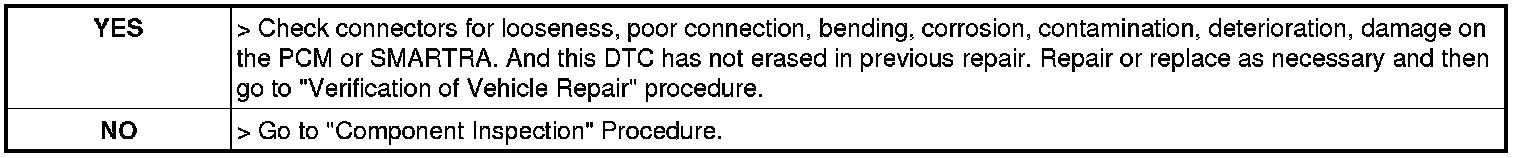

(3) Has the KEY status learnt ?
