Component Inspection

Immobilizer
P1676 Immobilizer-Smartra Message Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. Check SMARTRA.
(1) IGN "ON" & Engine "OFF".
(2) Neutralize SMARTRA with scantool.
(3) Neutralize PCM and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize SMARTRA & PCM and to Register transponder key

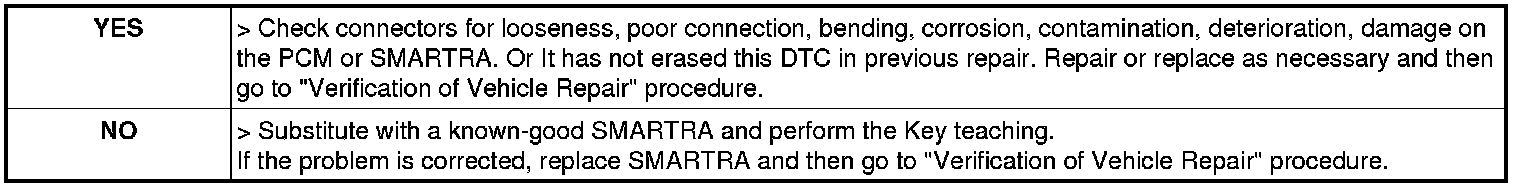

(4) Are Neutralizing and Registering Key completed normally ?






NOTE:
If the SMARTRA3 is only replaced using an existing key and PCM, after replacing the "virgin" or "neutral" SMARTRA3, reteaching is possible by key Learning mode of GDS. In this case, all existing key must be retaught.

If SMATRA3 is replaced to another one (used at other vehicle), it can only recycle its neutralized first before replacing.
