Scantool Diagnostics

Automatic Transaxle
P0955 Auto Shift Manual Mode Circuit - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Selet "Currnet Data"mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
4. Change shft lever to "Sports Mode".

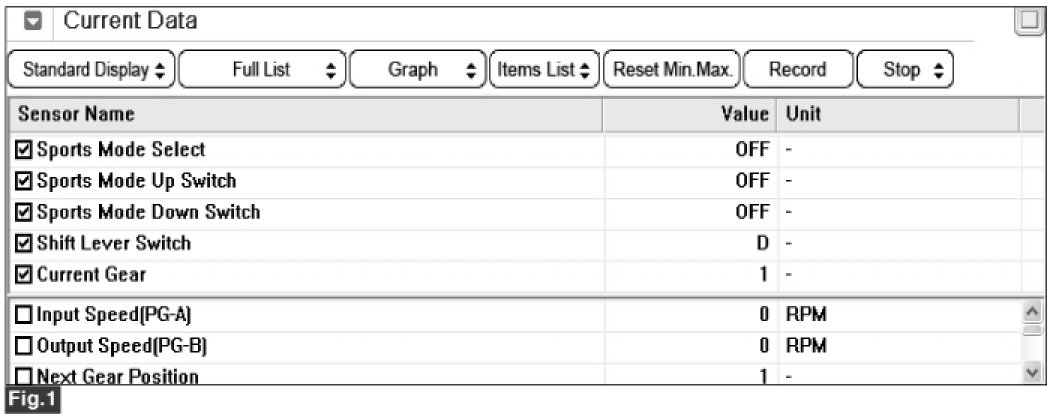

Fig 1) "D" range
Fig 2) "Sports Mode ON"
Fig 3) "Sports Mode Up Switch ON"

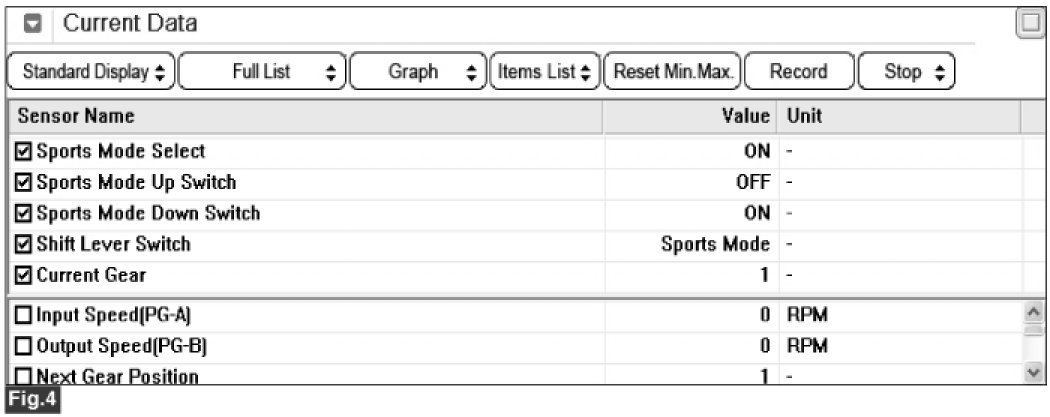

Fig 4) "Sports Mode Dwon Switch ON"
5. Is Sports Mode Switch working within specification?
