General Information

Automatic Transaxle
P0880 TCM Power Signal Error Open/Short (GND) - General Information

Component Location





General Description

PCM(TCM) monitored supplied voltage to ATM solenoid valve. This voltage is without specific, then gear is fixed 4th speed.

DTC Description

This code is set when input voltage of solenoide is without specifiction.

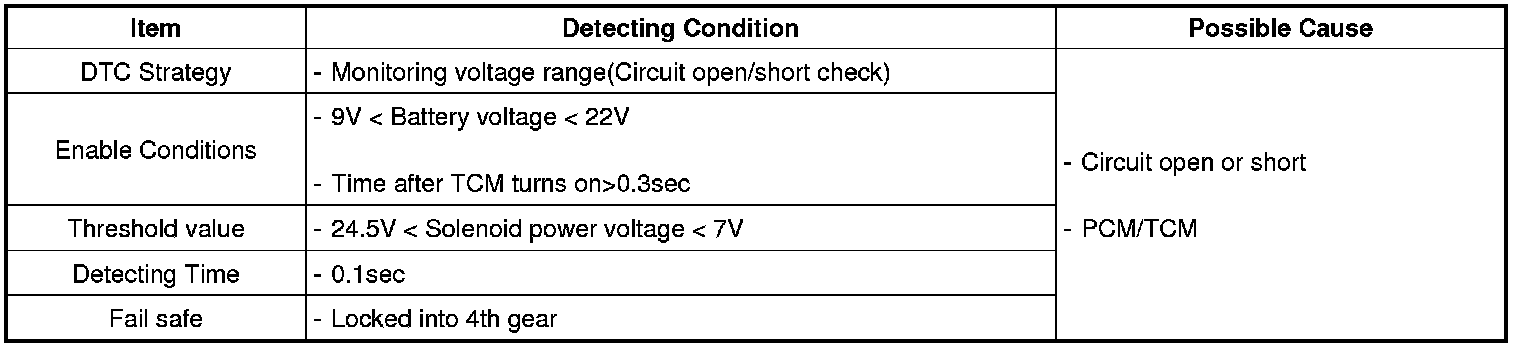

DTC Detecting Condition

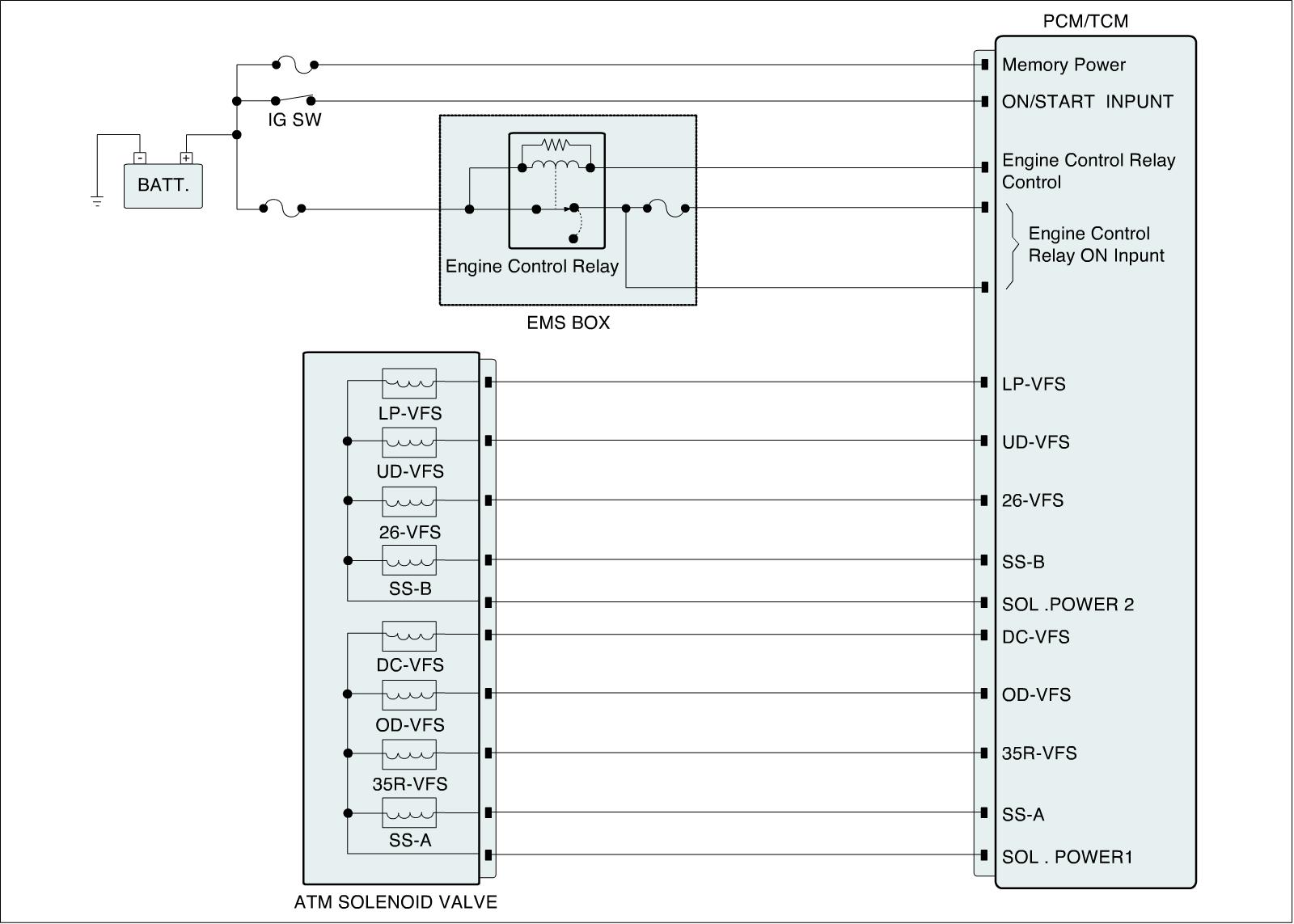

Diagnostic Circuit Diagram
