Scantool Diagnostics

Automatic Transaxle
P0773 Shift Control Solenoid Valve \'E\' Electrical (SS-A) - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Selet "Currnet Data"mode and monitor "Shift Control Solenoid Valve(SS-A)" parameter current value.

Specification :See below data

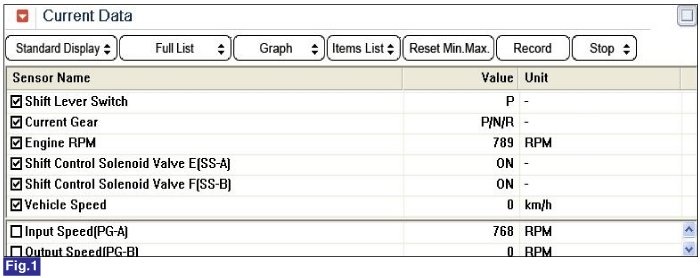

Fig 1) "P,N" range

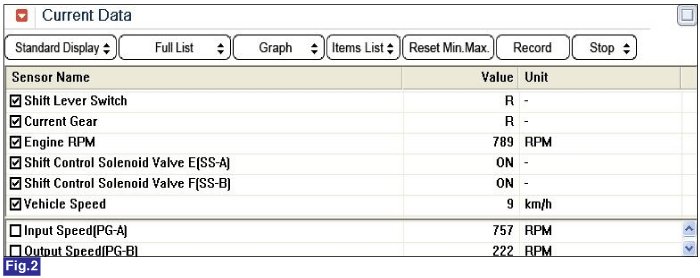

Fig 2) "R" range

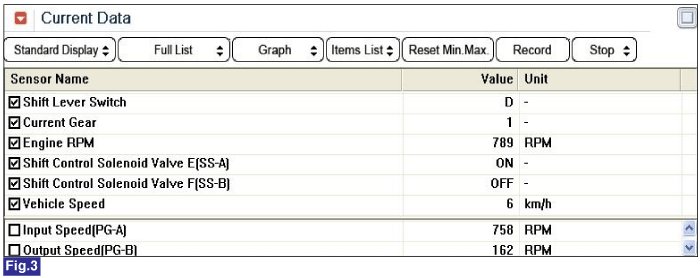

Fig 3) "D" range 1st gear

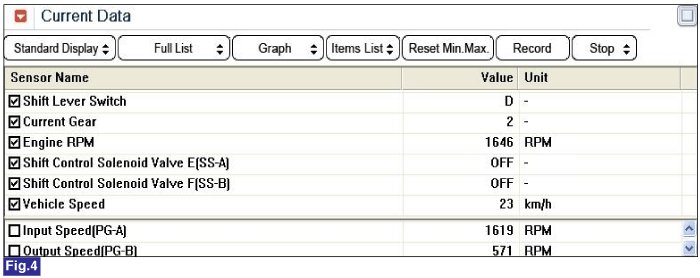

Fig 4) "D" range 2nd gear

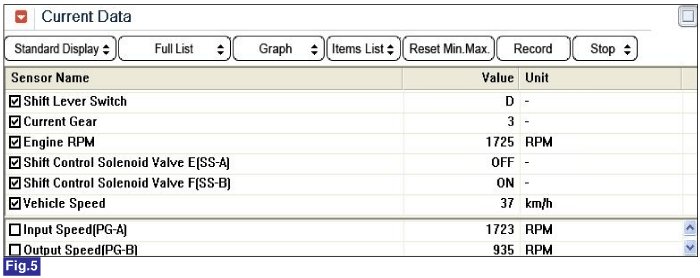

Fig 5) "D" range 3rd gear
Fig 6) "D" range 4th gear

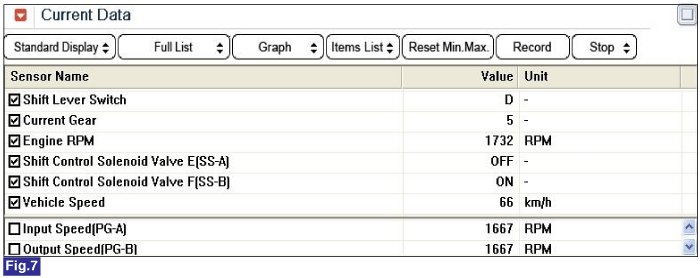

Fig 7) "D" range 5th gear

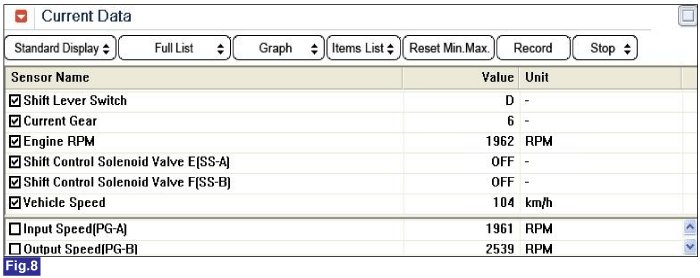

Fig 8) "D" range 6th gear

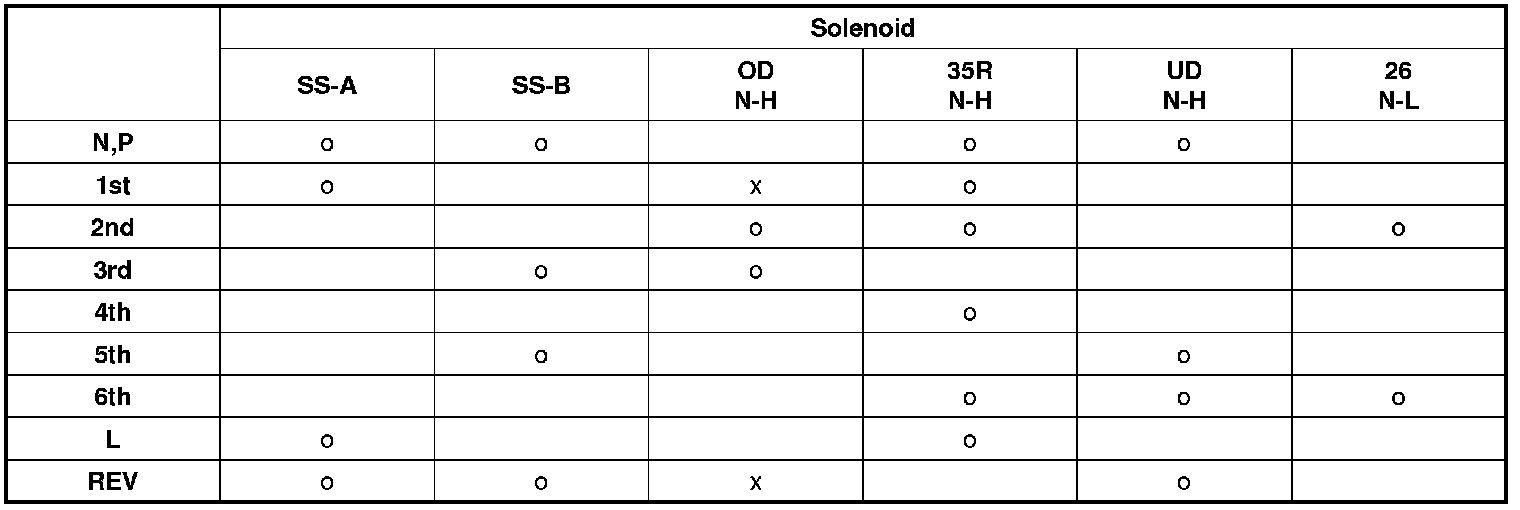

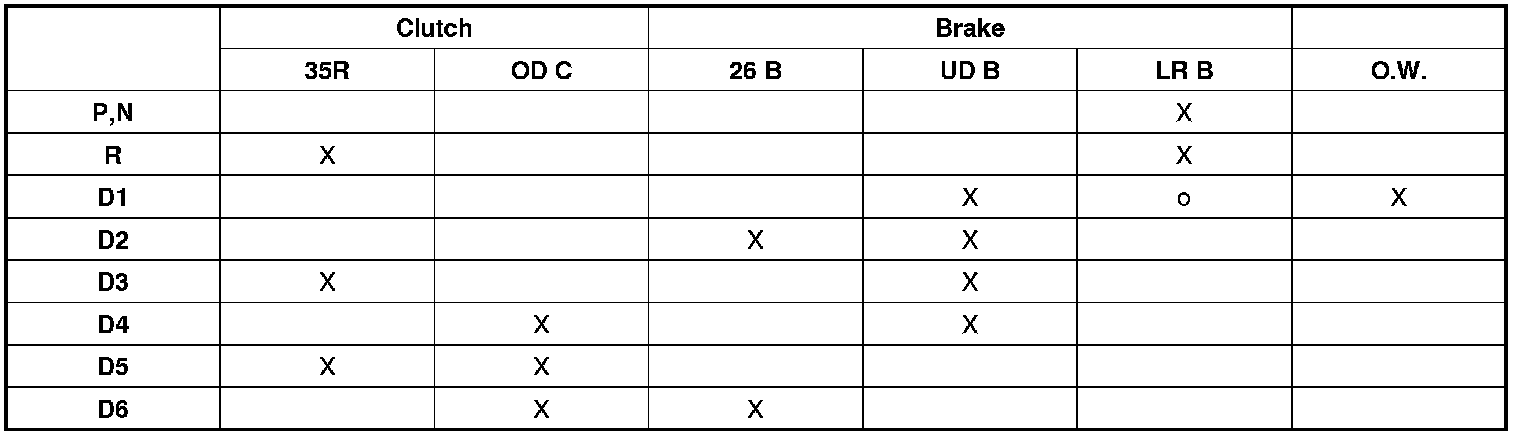

Operating step table at each status





o : Connected status
x : Connedted at Vehicle speed above 8km/h





o : Operated at Vehicle speed under 5km/h

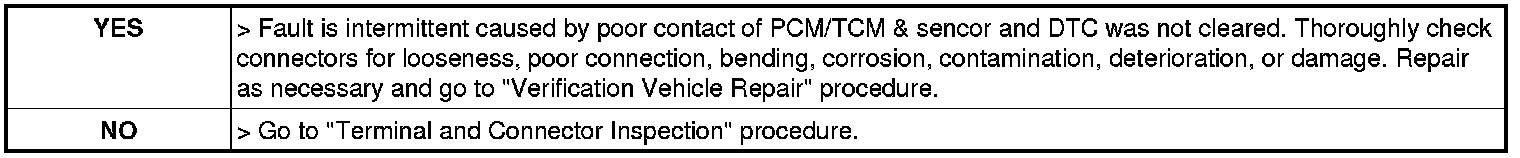

5. Is Shift Control Solenoid Valve(SS-A) within specification?
