Component Inspection

Automatic Transaxle
P0773 Shift Control Solenoid Valve \'E\' Electrical (SS-A) - Inspection/Repair:_:Component Inspection

Component Inspection

Shift control solenoid valve(OD/C-VFS) Inspection
1. Ignition off & Engine Off.

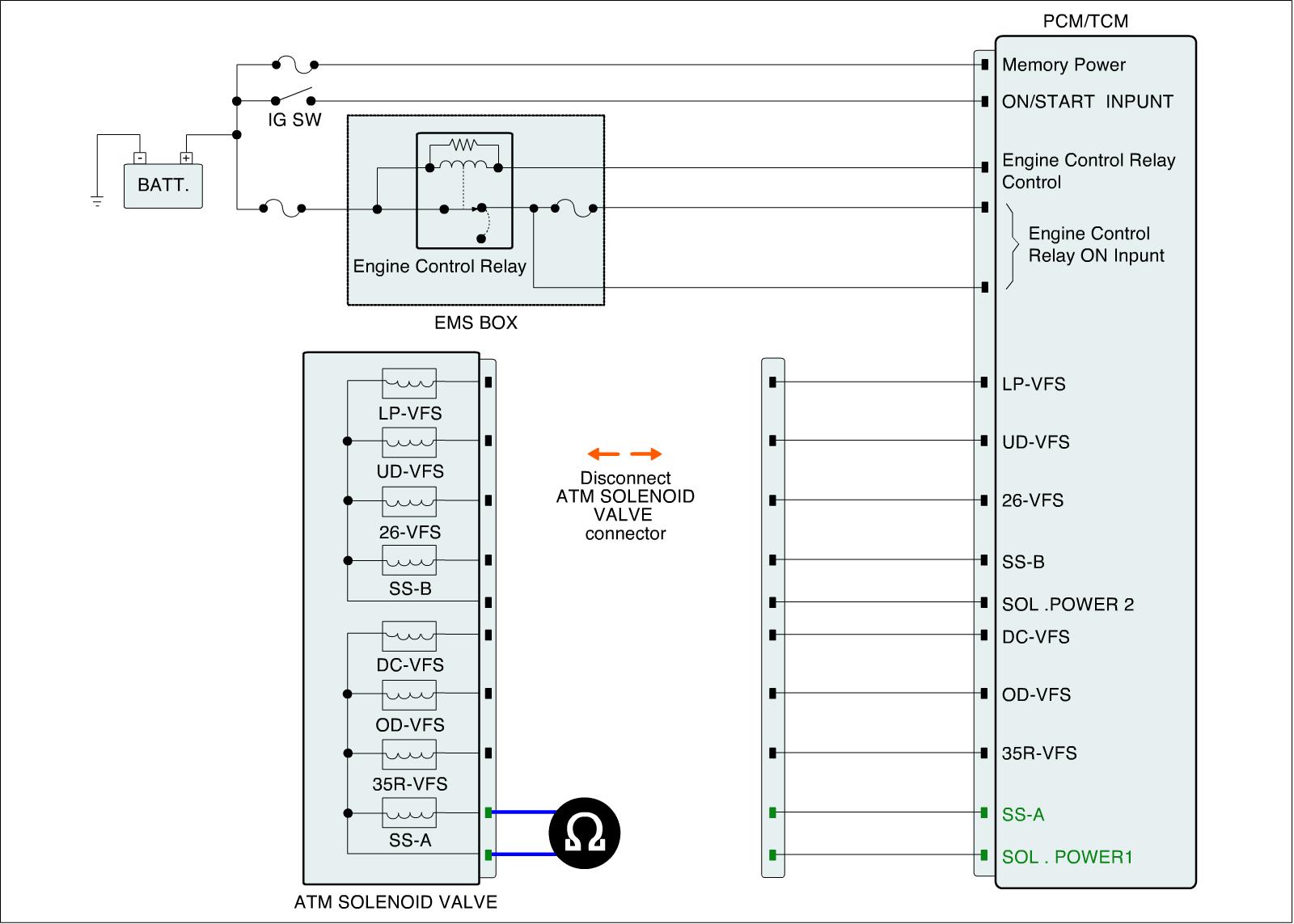

2. Disconnect "ATM solenoid valve connector.
3. Measure a resistance between "Shfit control solenoid valve(OD/C-VFS) " terminal and power at ATM solenoid valve connector.

Specification :5.1 ± 0.3 Ohms( 25°C )

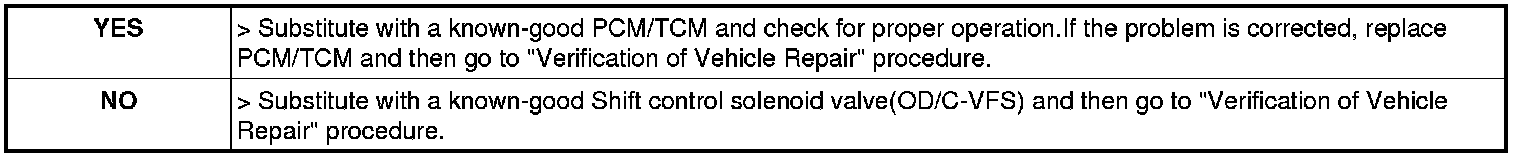

4. Is measured resistance within specification?
