Scantool Diagnostics

Automatic Transaxle
P0768 Shift Control Solenoid Valve \'D\' Electrical (OD/C) - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Selet "Currnet Data"mode and monitor "Shift Control Solenoid Valve(OD/C-VFS)" parameter current value.

Specification :See below data

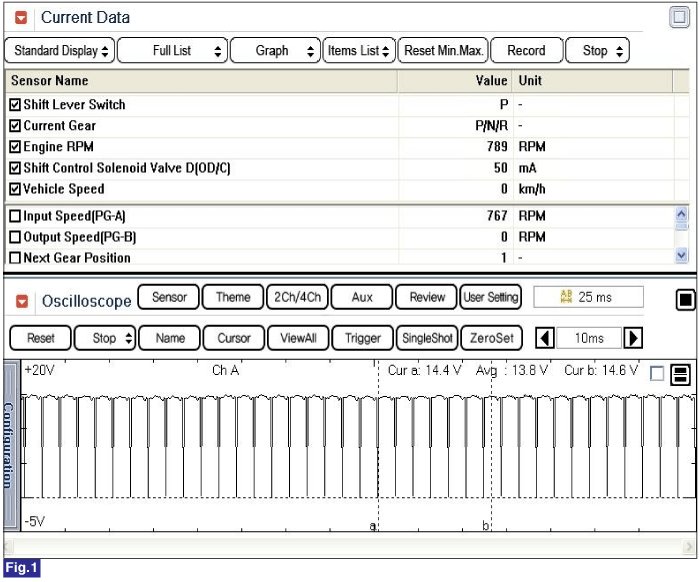

Fig 1) "P,N" range

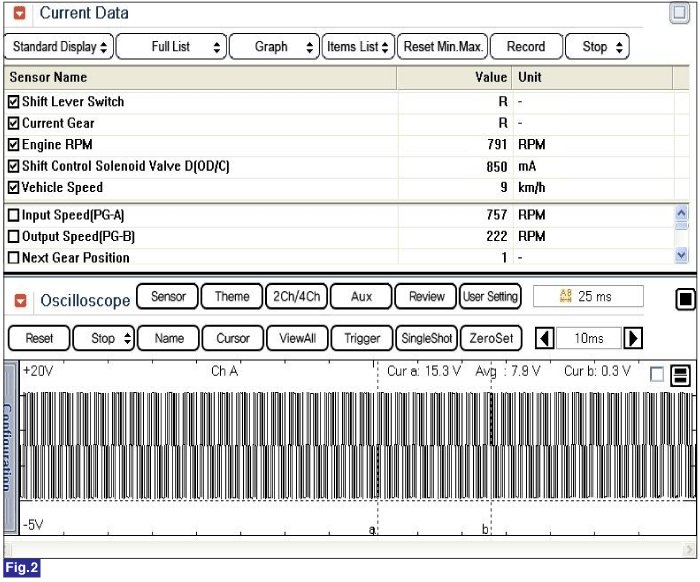

Fig 2) "R" range (more than 8kph)

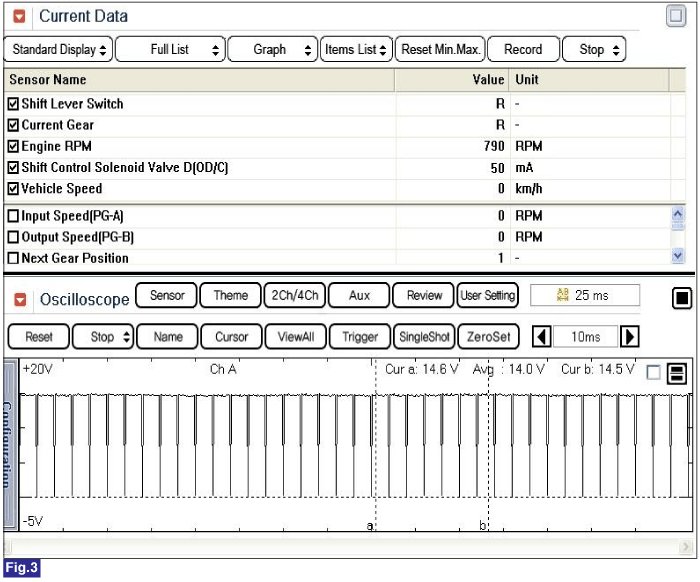

Fig 3) "R" range (less than 8kph)

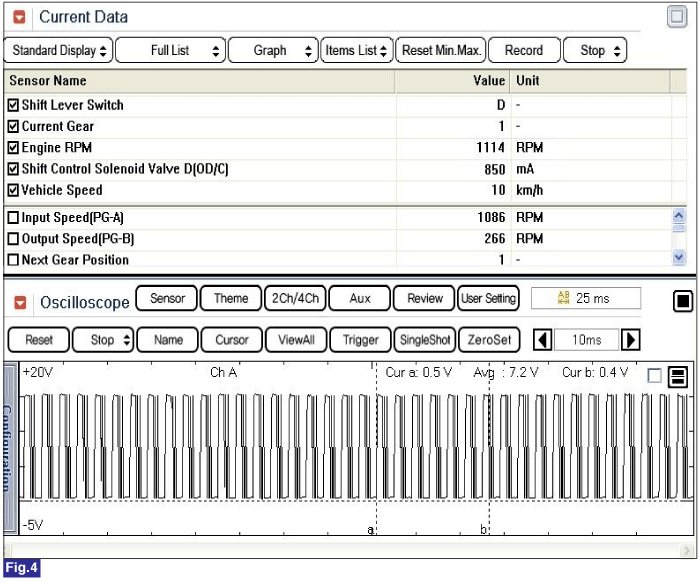

Fig 4) "D" range 1st gear (more than 8kph)
Fig 5) "D Range 1st" grar(less than 8kph)

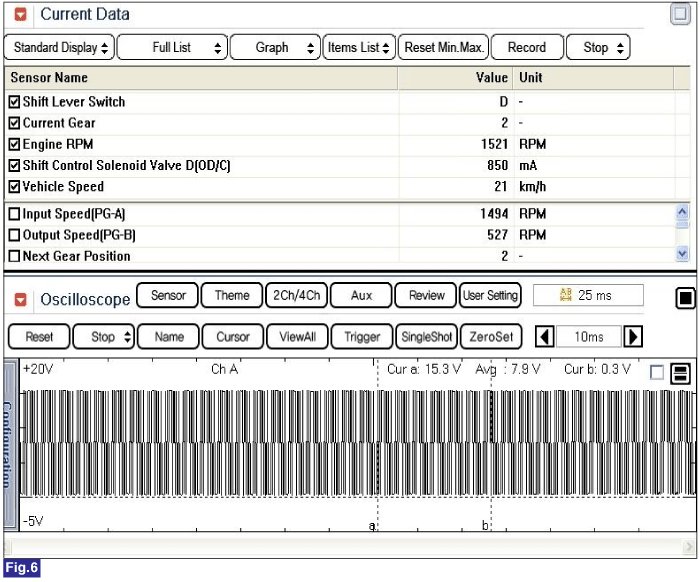

Fig 6) "D" range 2nd gear

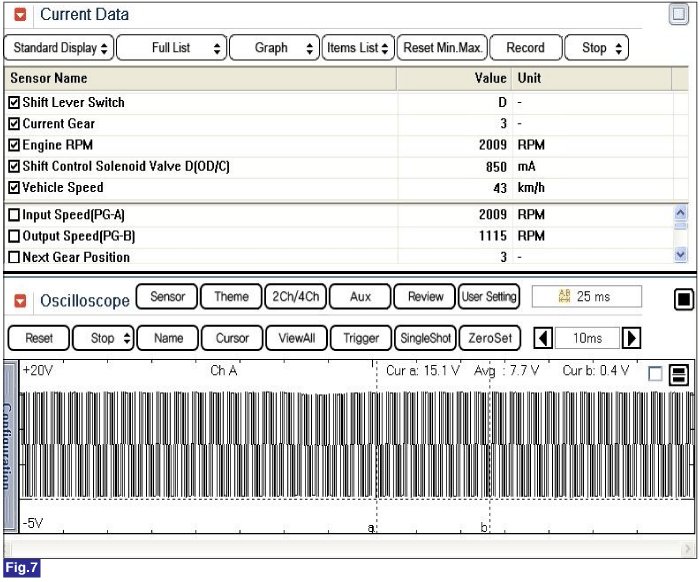

Fig 7) "D" range 3rd gear

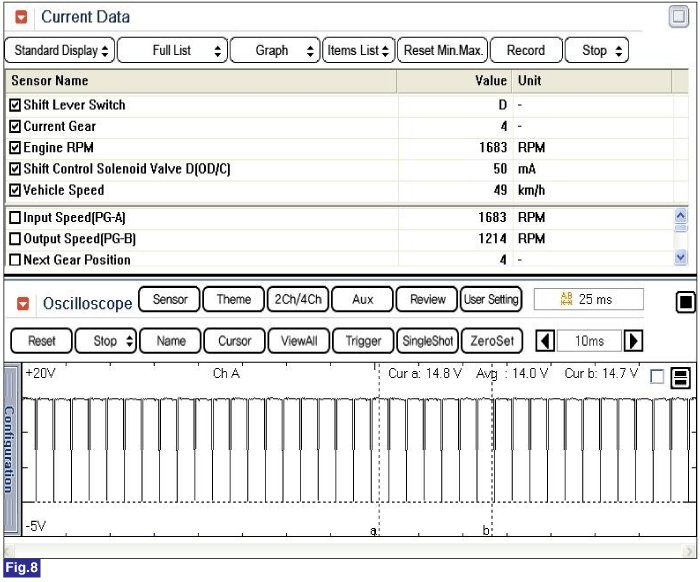

Fig 8) "D" range 4th gear
Fig 9) "D" range 5th gear

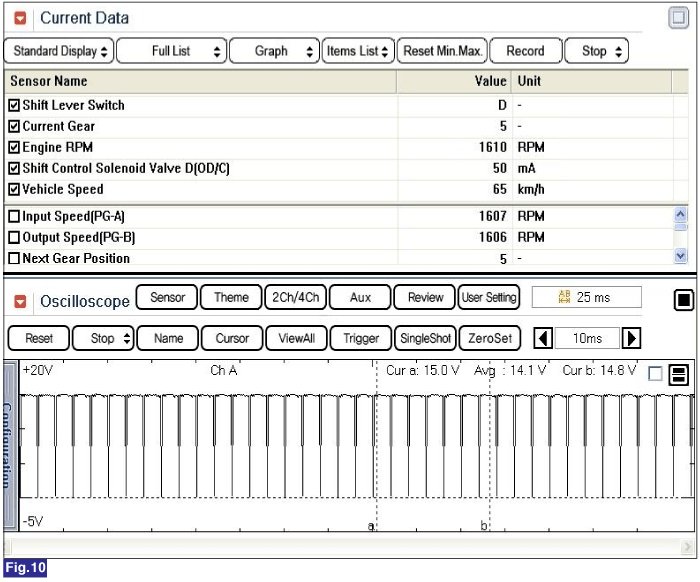

Fig 10) "D" range 6th gear
Operating step table at each status





o : Connected status
x : Connedted at Vehicle speed above 8km/h





o : Operated at Vehicle speed under 5km/h

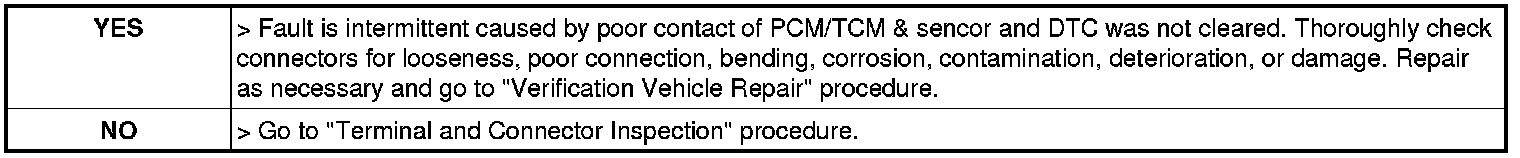

5. Is Shift Control Solenoid Valve(OD/C-VFS) within specification?
