Component Inspection

Automatic Transaxle
P0768 Shift Control Solenoid Valve \'D\' Electrical (OD/C) - Inspection/Repair:_:Component Inspection

Component Inspection

Shift control solenoid valve(OD/C-VFS) Inspection
1. Ignition off & Engine Off.
2. Disconnect "ATM solenoid valve connector.

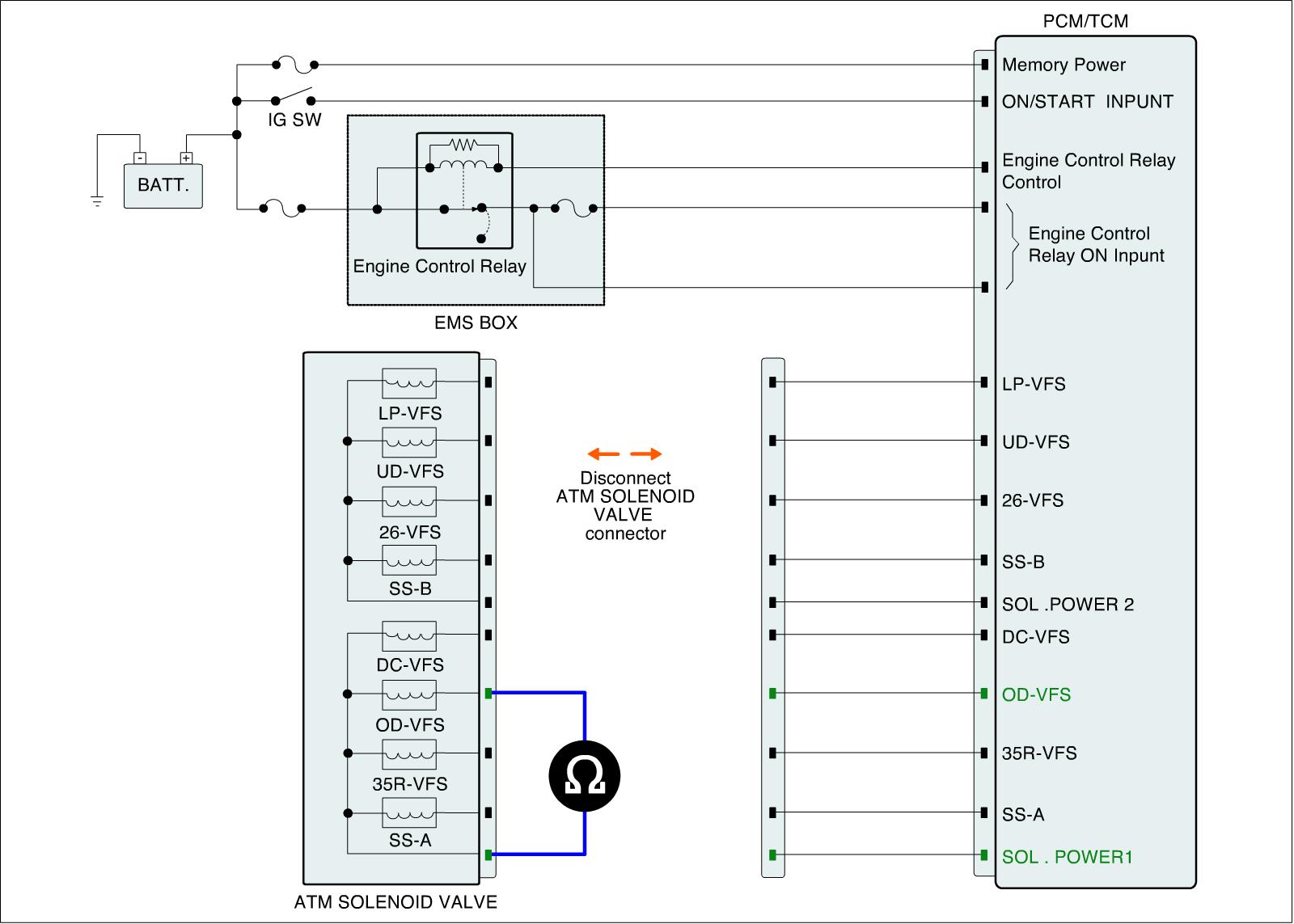

3. Measure a resistance between "Shfit control solenoid valve(OD/C-VFS) " terminal and power at ATM solenoid valve connector.

Specification :5.1 ± 0.3 Ohms( 25°C )

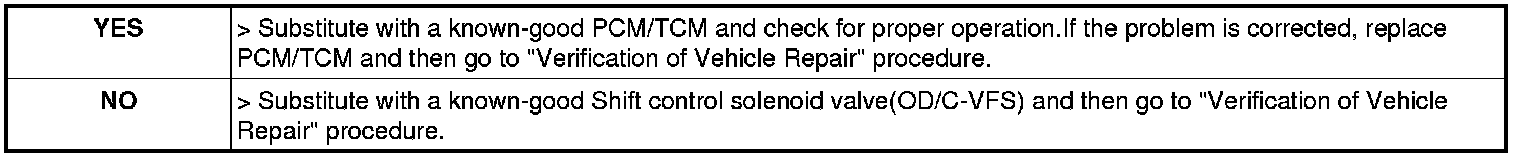

4. Is measured resistance within specification?
