P0753 Shift Control Solenoid Valve \'A\' Electical (UD/B) - General Information

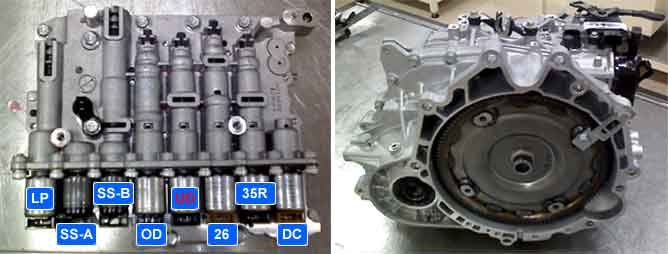

Component Location





General Description

PCM/TCM control UD-VFS(Shift Control Solenoid Valve) solenoid valve by changed current for reducing UD brake shock.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

DTC Detecting Condition

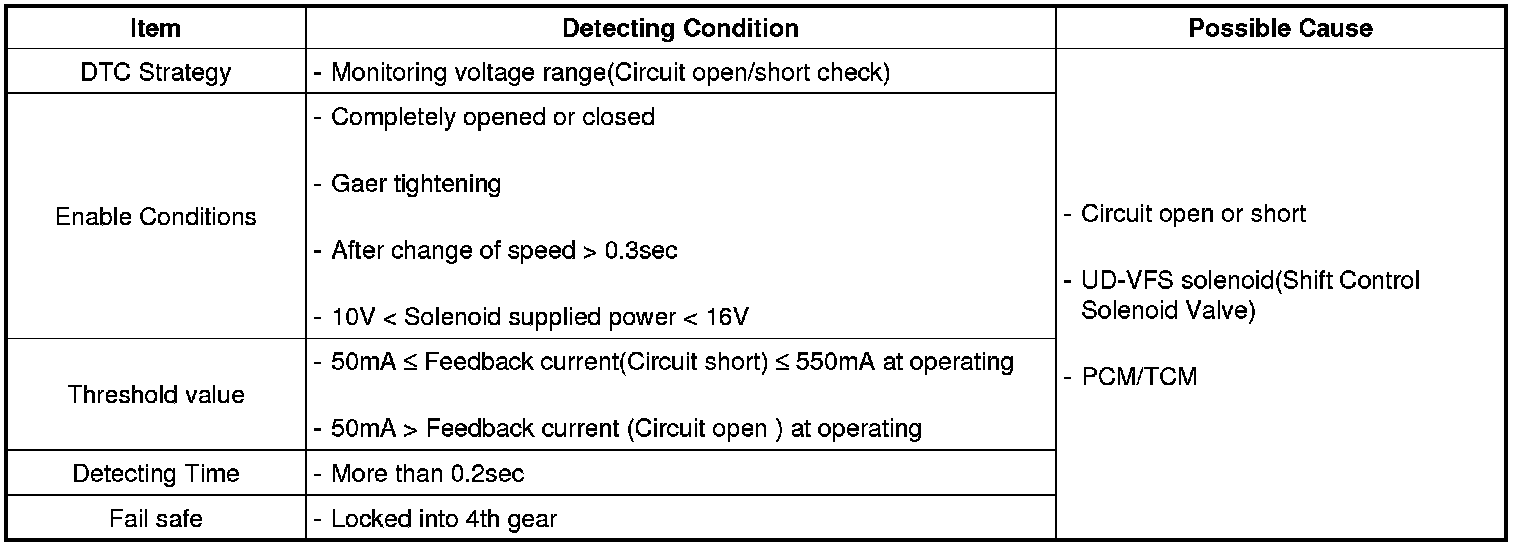

Specification

Operating step table at each status





o : Connected status
x : Connedted at Vehicle speed above 8km/h





o : Operated at Vehicle speed under 5km/h

- Working temperature : -40°C~150°C
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C normal temperature )

Diagnostic Circuit Diagram










Signal Waveform & Data

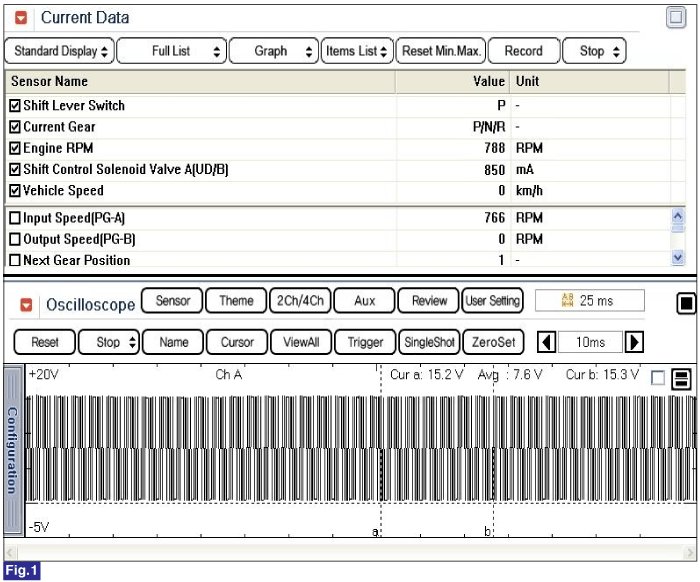

Fig 1) Wave form of UD-VFS
