Scantool Diagnostics

Automatic Transaxle
P0748 Pressure Control Solenoid Valve(VFS) \'A\' Electrical - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Selet "Currnet Data"mode and monitor "Pressure Control Solenoid Valve" parameter.

Specification :See below data

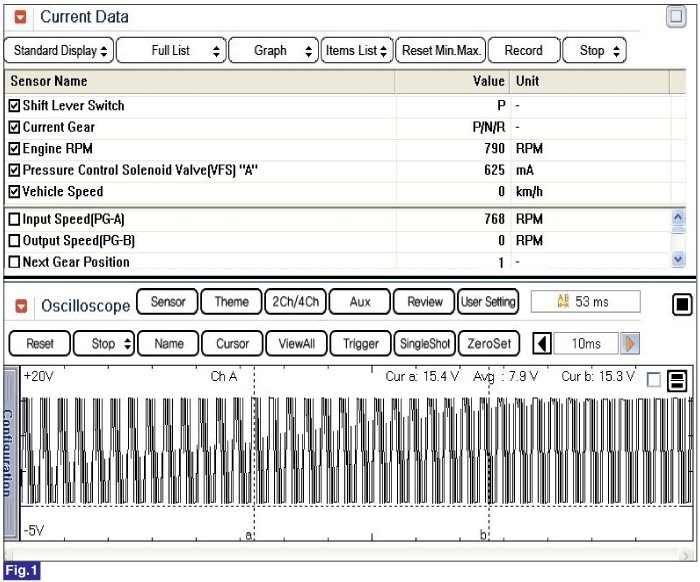

Fig 1) "P,N" range

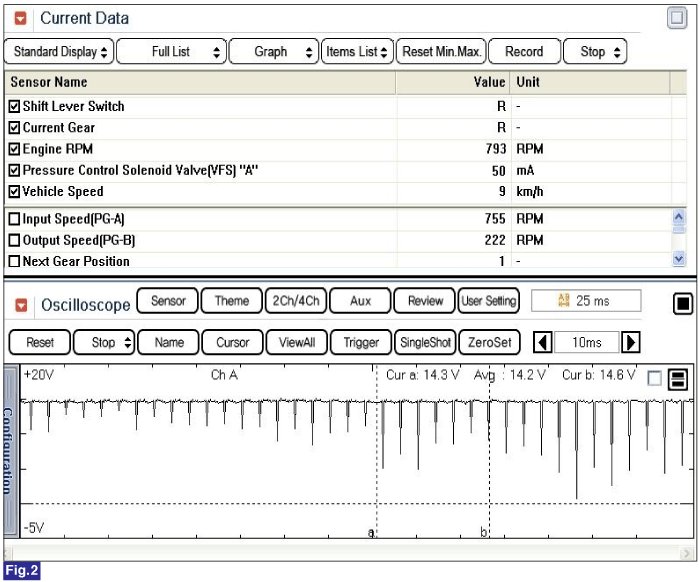

Fig 2) "R" range
Fig 3) "D" range 1st gear

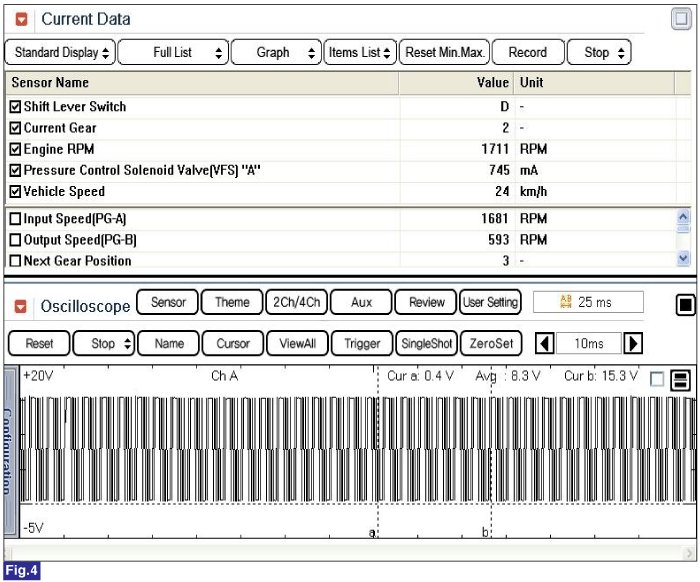

Fig 4) "D" range 2nd gear

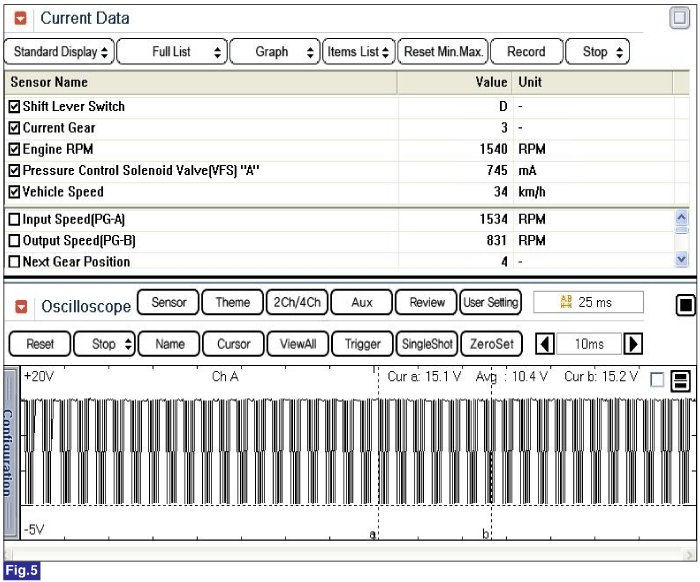

Fig 5) "D" range 3rd gear

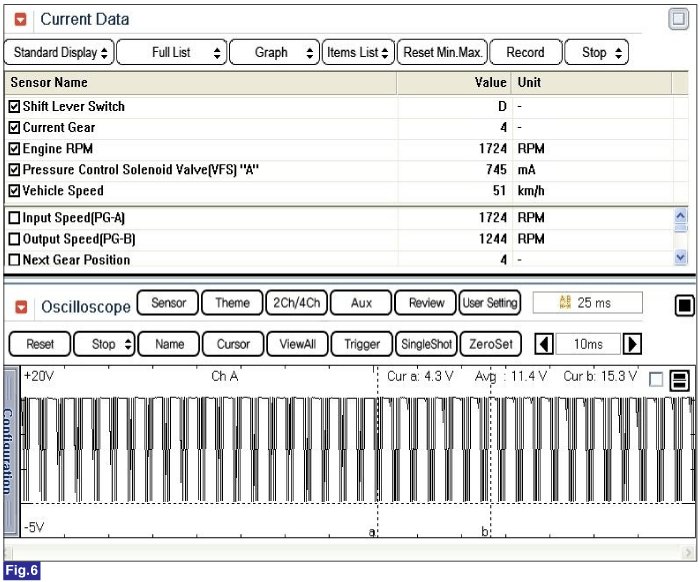

Fig 6) "D" range 4th gear
Fig 7) "D" range 5th gear

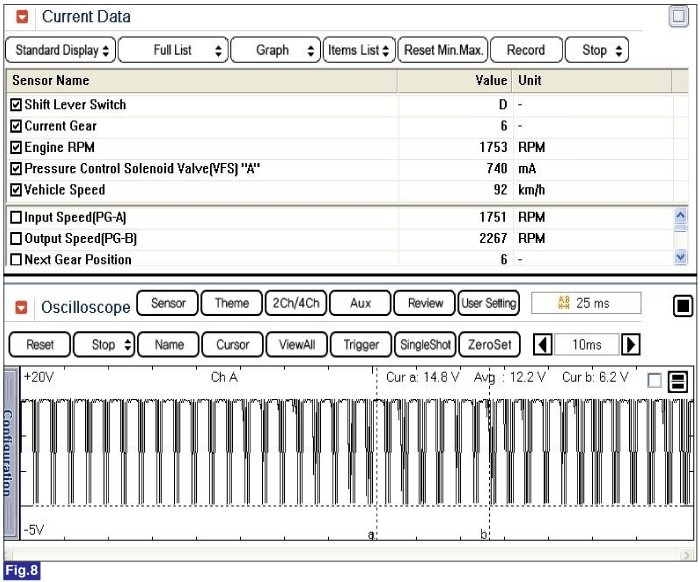

Fig 8) "D" range 6th gear

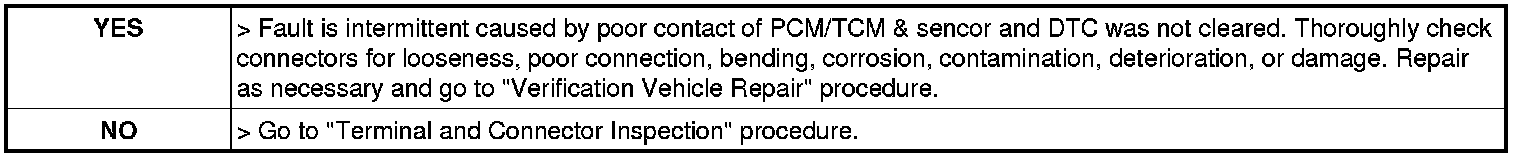

5. Is Pressure Control Solenoid Valve within specification?
