General Information

Automatic Transaxle
P0748 Pressure Control Solenoid Valve(VFS) \'A\' Electrical - General Information

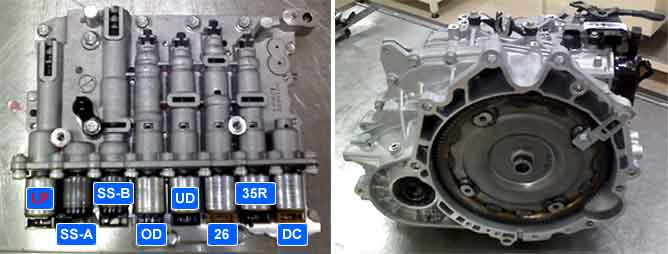

Component Location





General Description

PCM/TCM control Pressure control solenoid valve by changed current for reducing shift shock.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

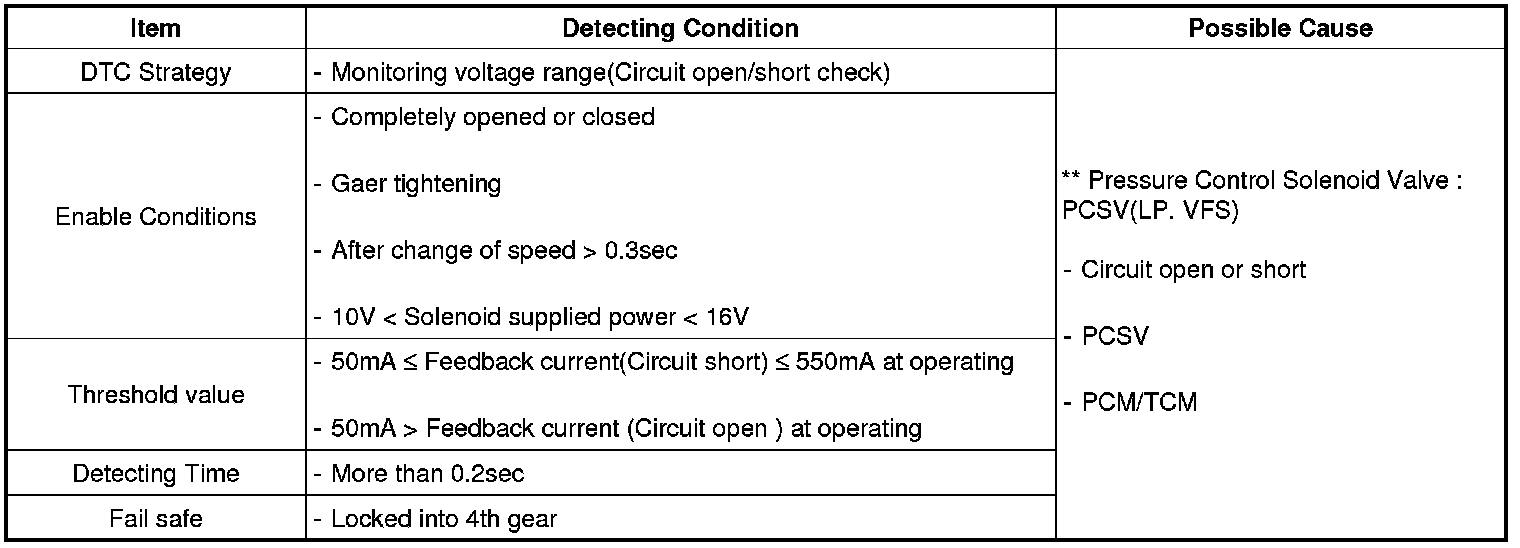

DTC Detecting Condition





Specification

- Working temperature : -40°C~150°C
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C normal temperature )

Diagnostic Circuit Diagram










Signal Waveform & Data

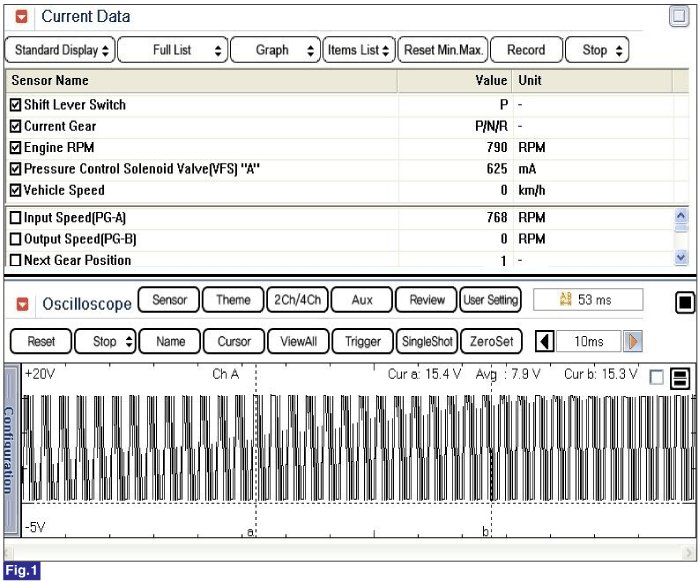

Fig 1) Wave form of LP-VFS
