P0743 Torque Converter Clutch Circuit Electrical - General Information

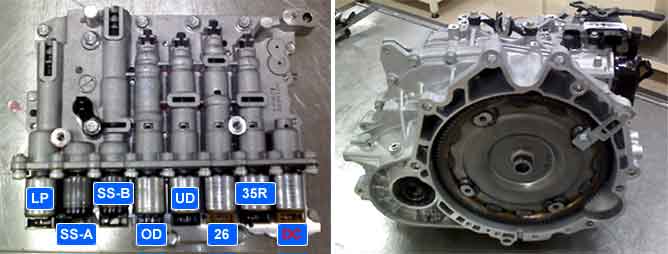

Component Location





General Description

PCM/TCM control Damper clutch perpomence by supplied oil pressue.
Damper clutch is for fuel reduction by decreasing oil pressue component's resistance in T/C.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

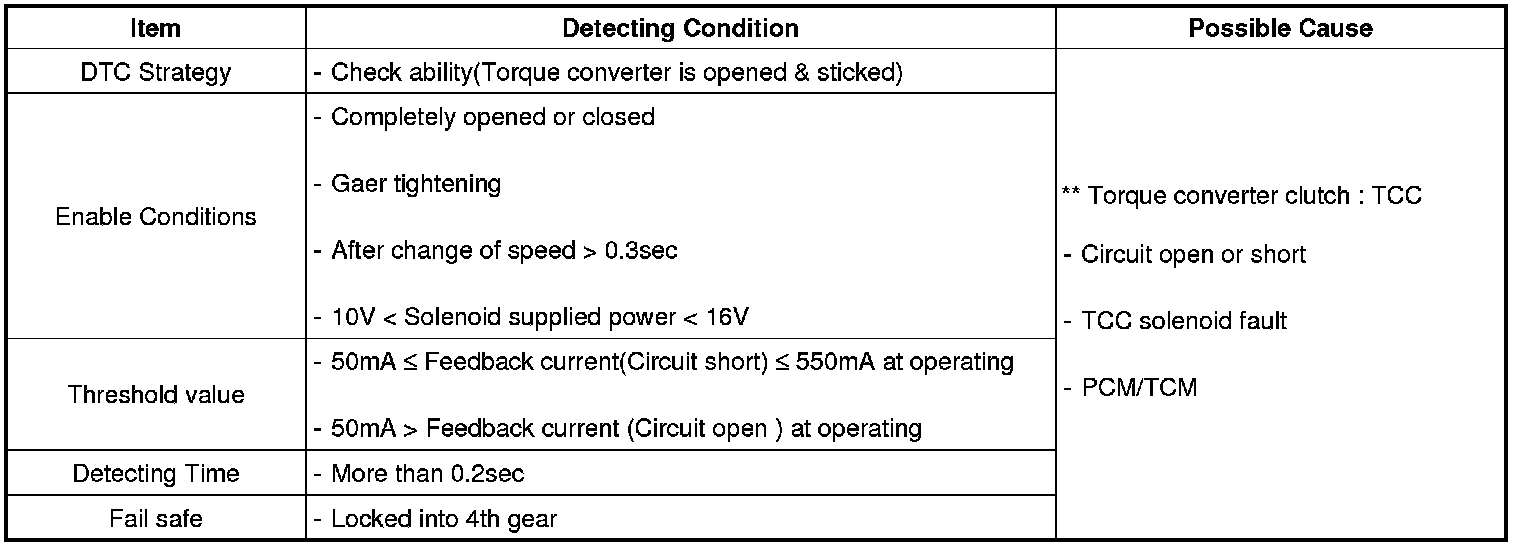

DTC Detecting Condition





Specification

- Working temperature : -40°C~150°C
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C normal temperature )

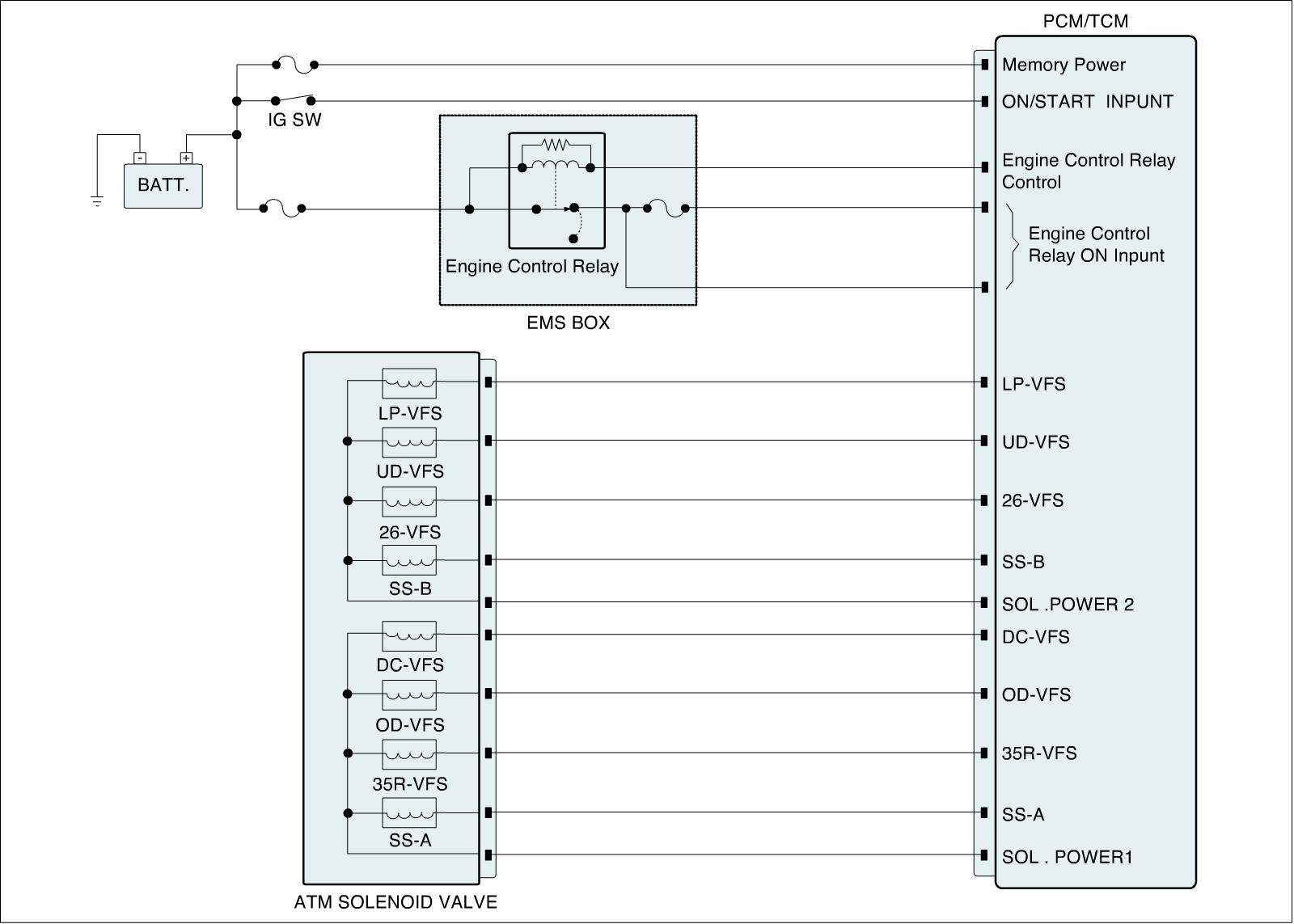

Diagnostic Circuit Diagram










Signal Waveform & Data

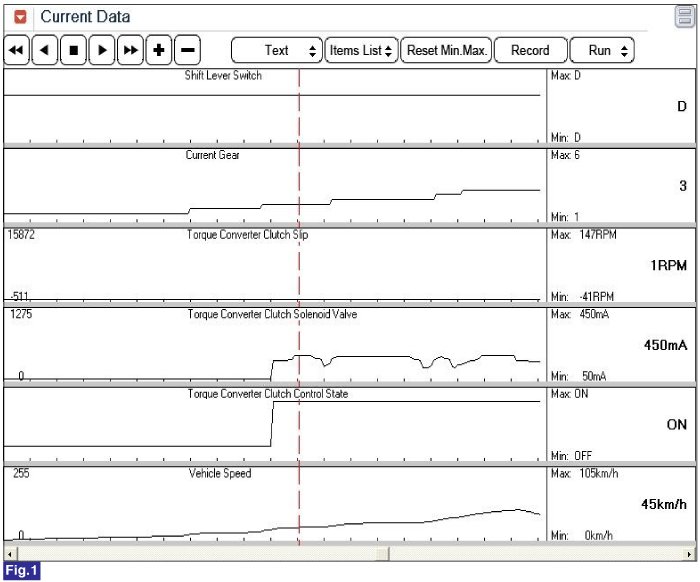

Fig 1) "D" range 3rd gear

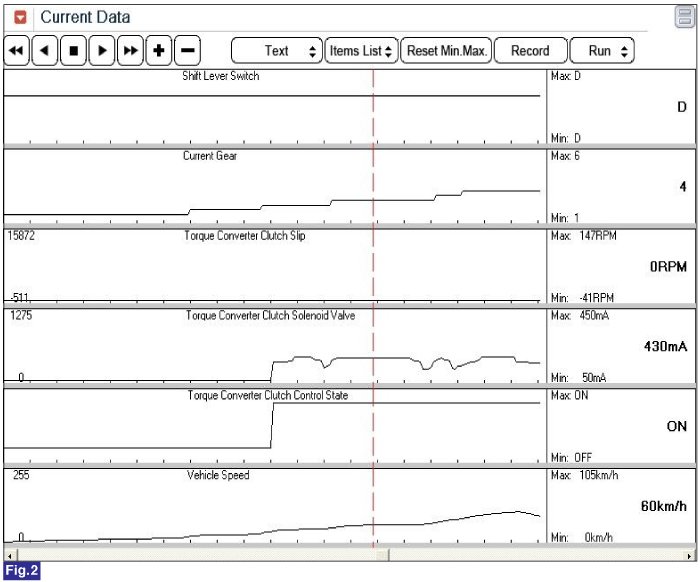

Fig 2) "D" range 4th gear

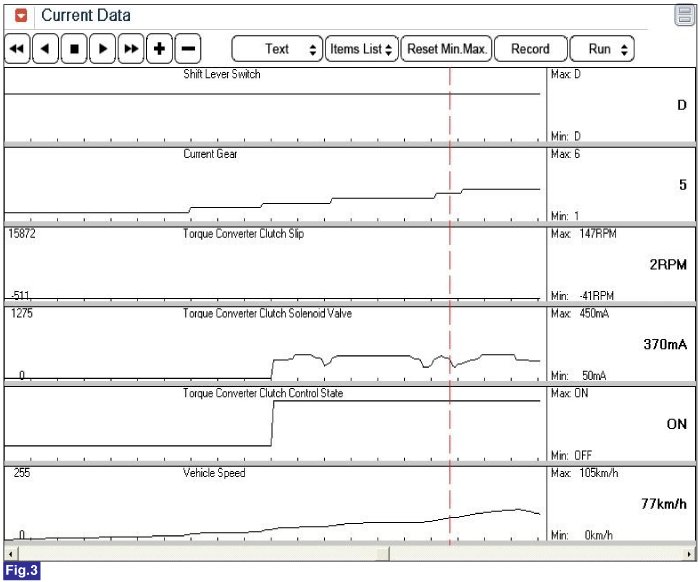

Fig 3) "D" range 5th gear

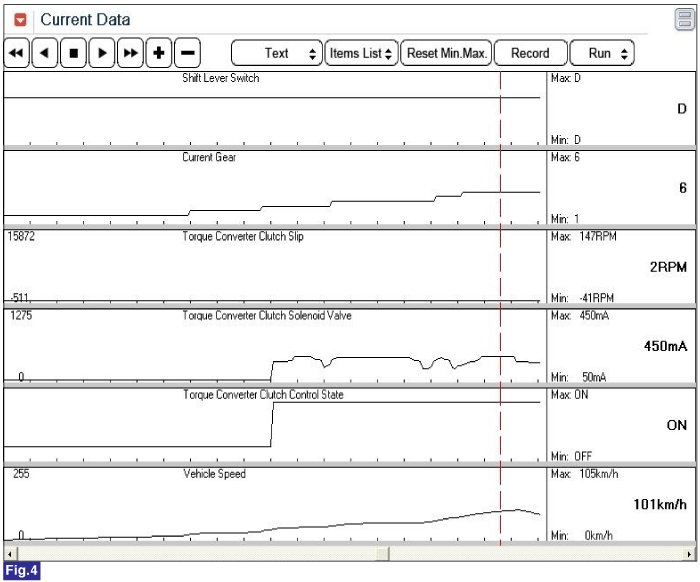

Fig 4) "D" range 6th gear
* Working above 3rd speed, but it may be working or not by driving variation at 3rd speed.
