P0741 Torque Converter Clutch Circuit Performance or Stuck Off - General Information

Component Location





General Description

PCM/TCM control Damper clutch perpomence by supplied oil pressue.
Damper clutch is for fuel reduction by decreasing oil pressue component's resistance in T/C.

DTC Description

This code is set when Damper clutch is opened & sticked.

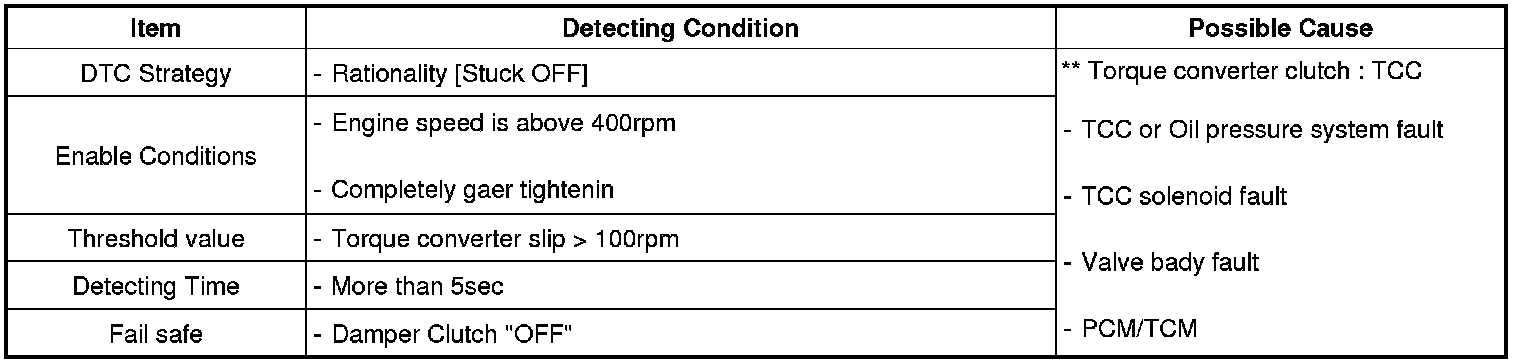

DTC Detecting Condition





Specification

- Supplied pressure 5.5 kgf/cm2 (Controlled pressure area 0 - 5.5)
- Working temperature : -40°C~150°C
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C normal temperature)
- Hysteresis : 0.3 kgf/cm2

Diagnostic Circuit Diagram










Signal Waveform & Data
















Fig 1) "D" range 3rd gear
Fig 2) "D" range 4th gear
Fig 3) "D" range 5th gear
Fig 4) "D" range 6th gear
* Working above 3rd speed, but it may be working or not by driving variation at 3rd speed.
