Component Inspection

Automatic Transaxle
P0741 Torque Converter Clutch Circuit Performance or Stuck Off - Inspection/Repair:_:Component Inspection

Component Inspection

DC solenoid valve Inspection
1. Ignition OFF.
2. Disconnect ATM solenoid valve connector.

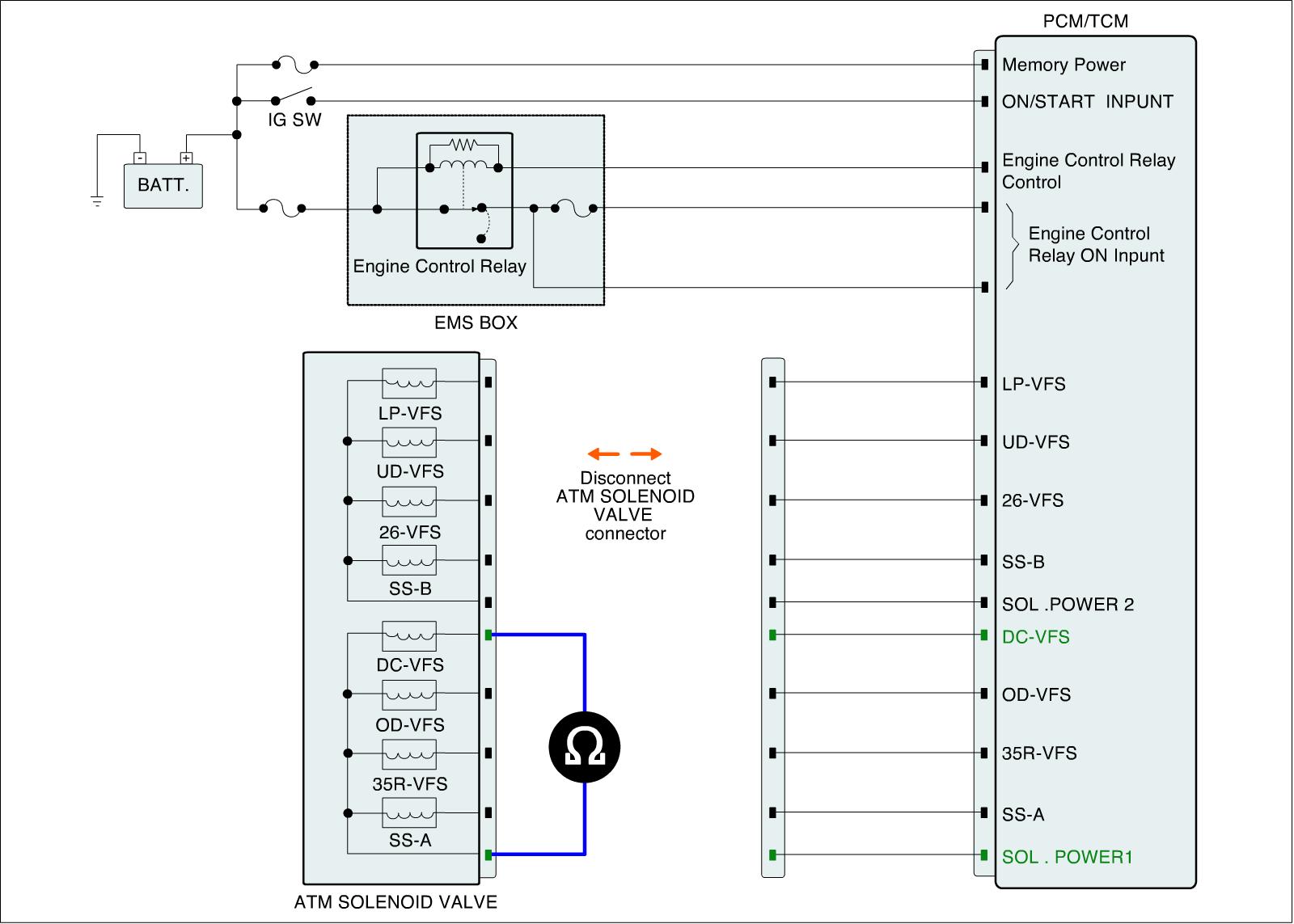

3. Measure resistance between DC solenoide vale terminal of ATM solenoid valve component and ON/START power.

Specification :5.1 ± 0.3 Ohms( 25°C )

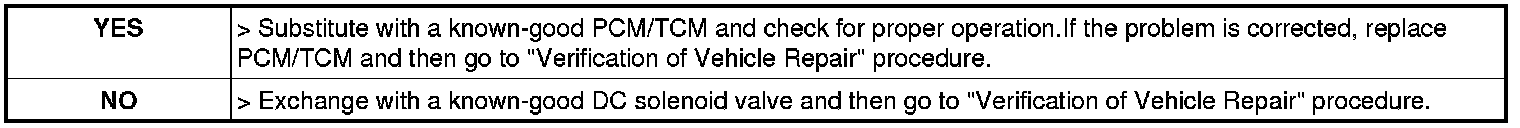

4. Is measured resistance within specification?
