Component Inspection

Automatic Transaxle
P0735 Gear 5 Incorrect Ratio - Inspection/Repair:_:Component Inspection

Component Inspection

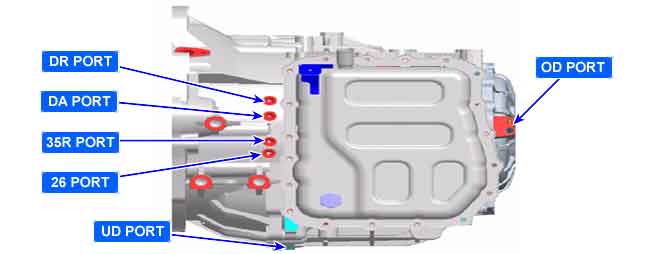

1. Connect oil pressure gage at "3/5/R Clutch" port and "OD Clutch" port.
2. Engine ON.
3. Driving with 5th speed of gear at sports mode.

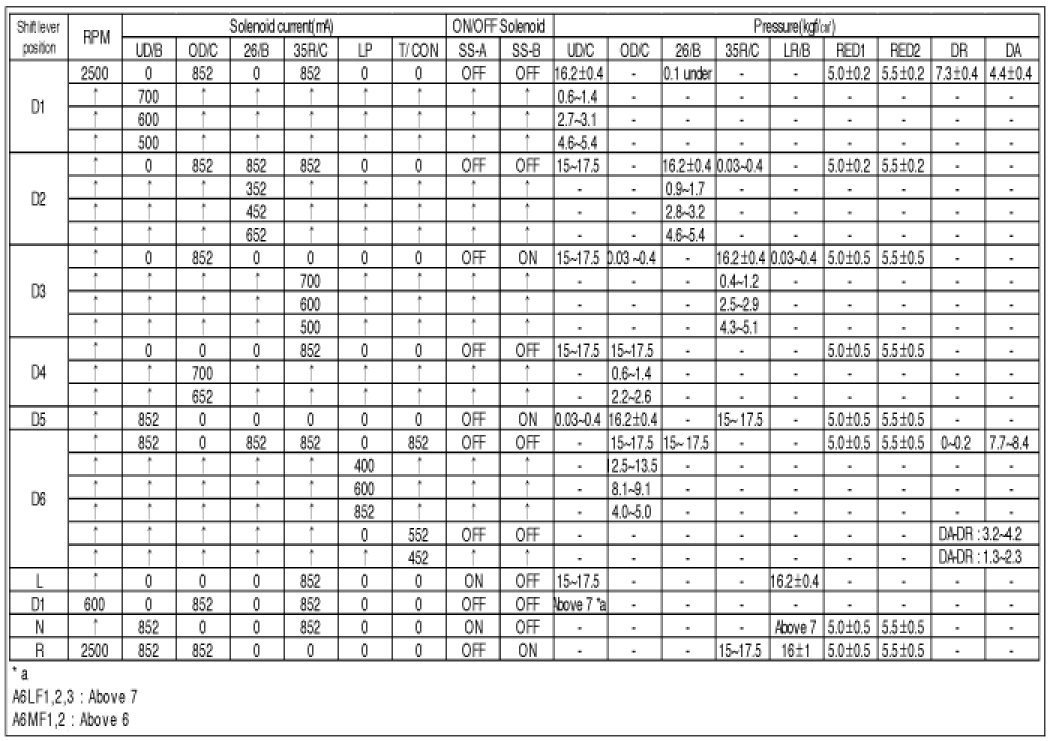

4. Check by below specification table.

Specification :See below specification table




** Above specification value can be different by vehicle model/measured variation.
5. Is measured oil pressure value within specification?
