P0722 Output Speed Sensor Circuit No Signal - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Selet "Currnet Data"mode and monitor "Output speed sensor(PG-B)" parameter.
4. Driving above 20 Km/h.

Specification :Increasing Gradually




































Fig 1) "P,N" range
Fig 2) "R" range
Fig 3) "D" range 1st gear
Fig 4) "D Range 1st" grar,VEHICLE SPEED=0
Fig 5) "D" range 2nd gear
Fig 6) "D" range 3rd gear
Fig 7) "D" range 4th gear
Fig 8) "D" range 5th gear
Fig 9) "D" range 6th gear

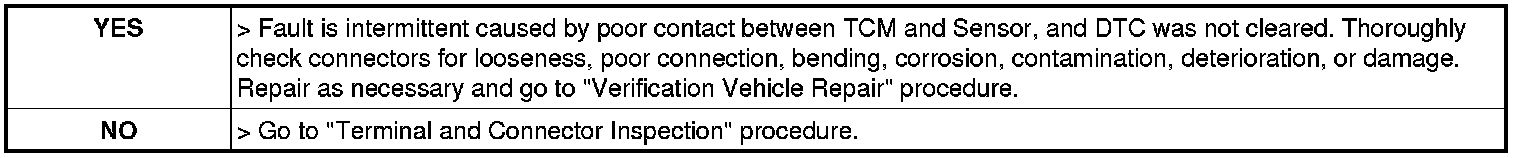

5. Is measured "Output speed sensor" value within specification?
