P0717 Input/Turbine Speed Sensor \'A\' Circuit No Signal - General Information

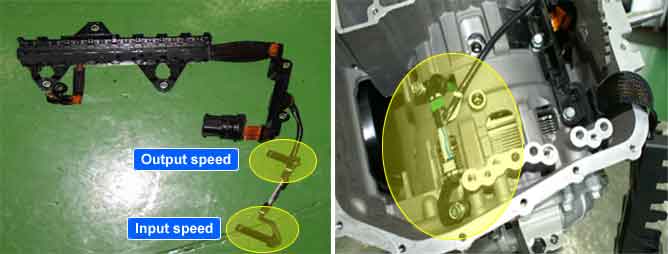

Component Location





General Description

Input/output speed sensor is one body and installed in transmission. It's used hall sensor of an electric current type, and current is changed by magnetic variation. Each sensors are composite 2 pins and PCM/TCM supplied power to sensor and controled by PCM/TCM.

DTC Description

This code is set when vehicle speed is above 20km/h but input speed signal is not detected by Input speed sensor.

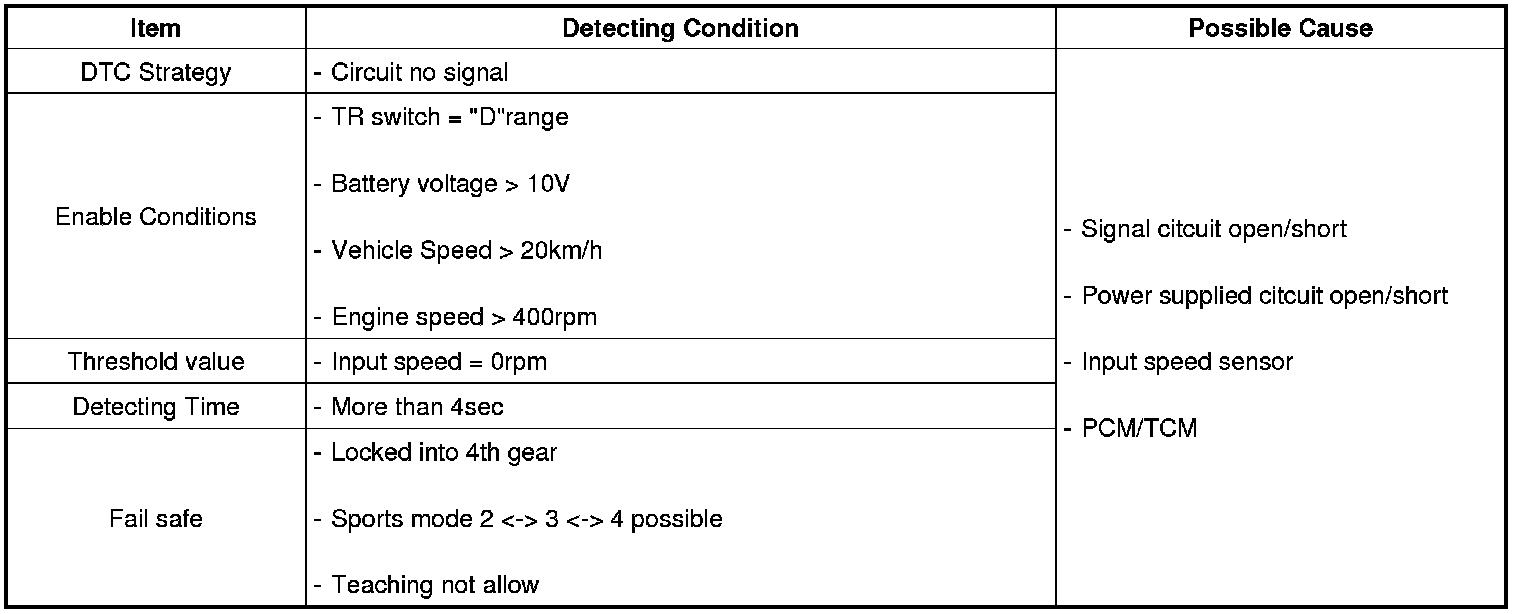

DTC Detecting Condition

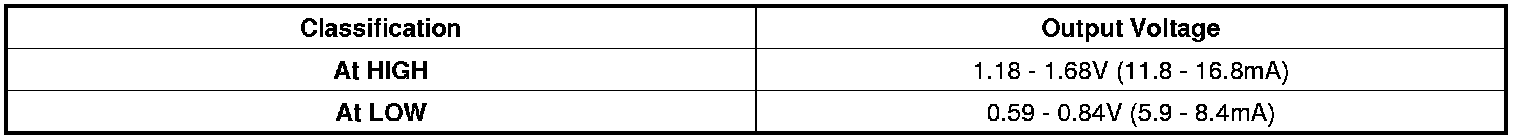

Specification

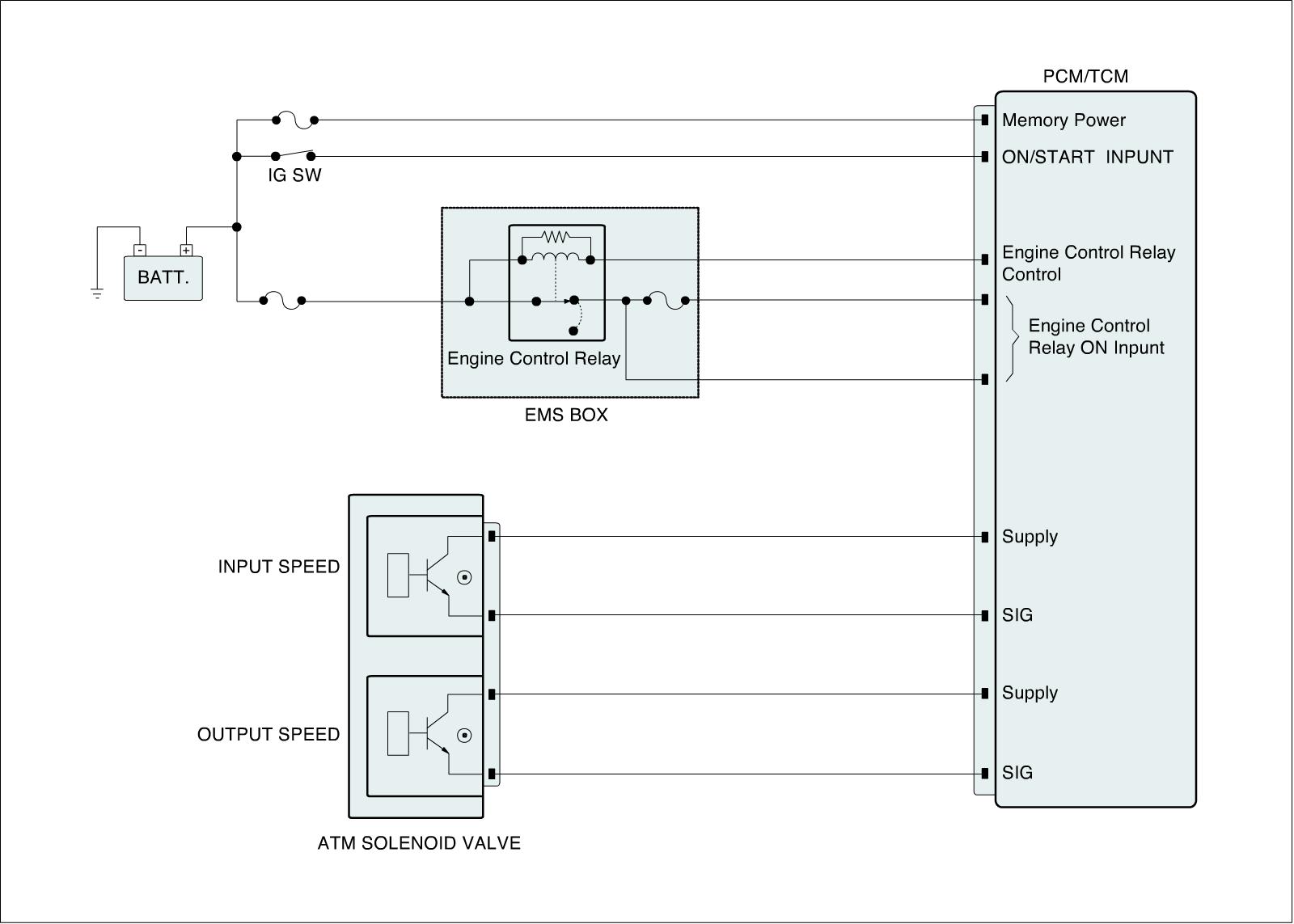

Diagnostic Circuit Diagram










Signal Waveform & Data

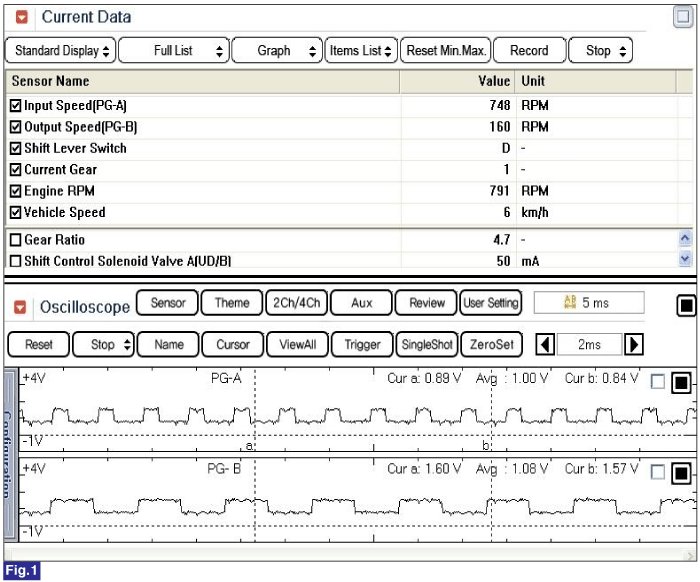

Fig 1) Input/Output speed sensor at low speed

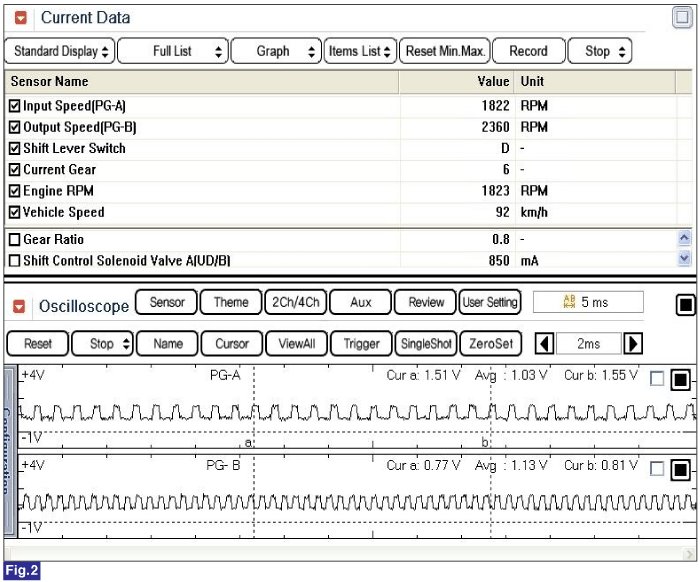

Fig 2) Input/Output speed sensor at high speed
