General Information

Automatic Transaxle
P0713 Transmission Fluid Temperature Sensor \'A\' Circuit High Input - General Information

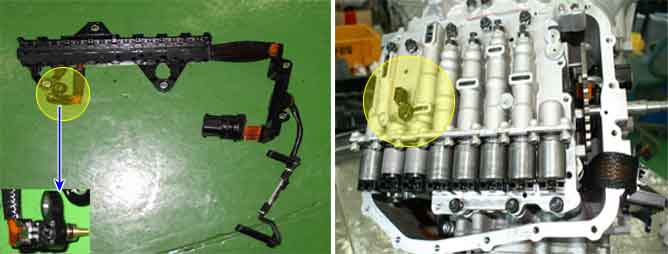

Component Location





General Description

Transmission oil temperature sensor is installed at valve body. This sensor is used thermistor which is changed by temperature variation. If PCM/TCM supplied about 5 voltage to sensor, then sensor output value is changed by ATF temperature variation. Transmission oil temperature sensor is very important for Transmission and sensor value is input to PCM/TCM and That information (sensor value) is important used for Damper clutch, Detected Non performance area, Controlled oil temperature variation and oil pressure at change of speed and other use.

DTC Description

This code is set when oil temperature sensor value is input higher specification to PCM/TCM.

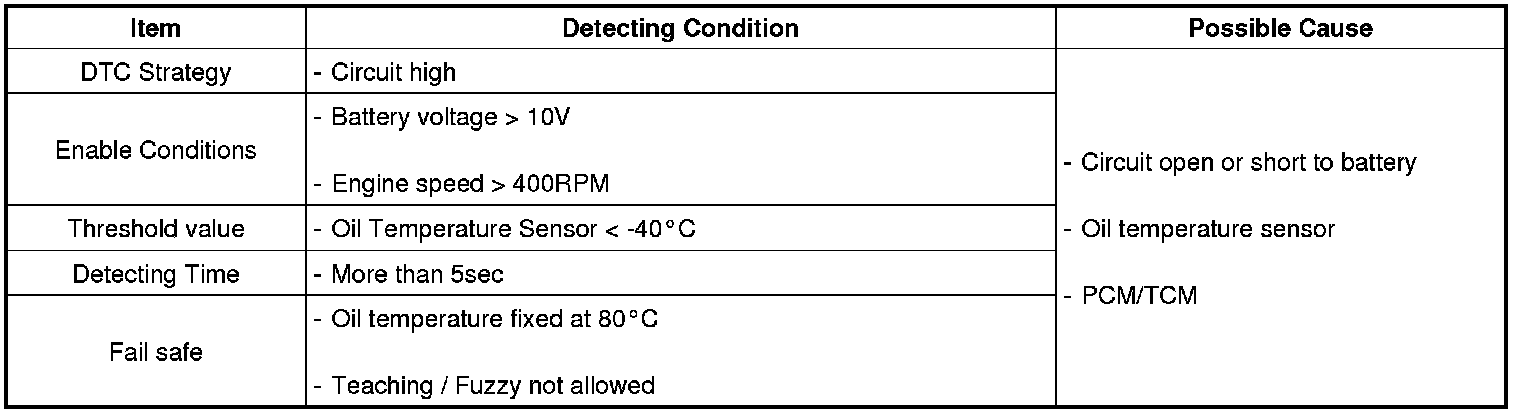

DTC Detecting Condition

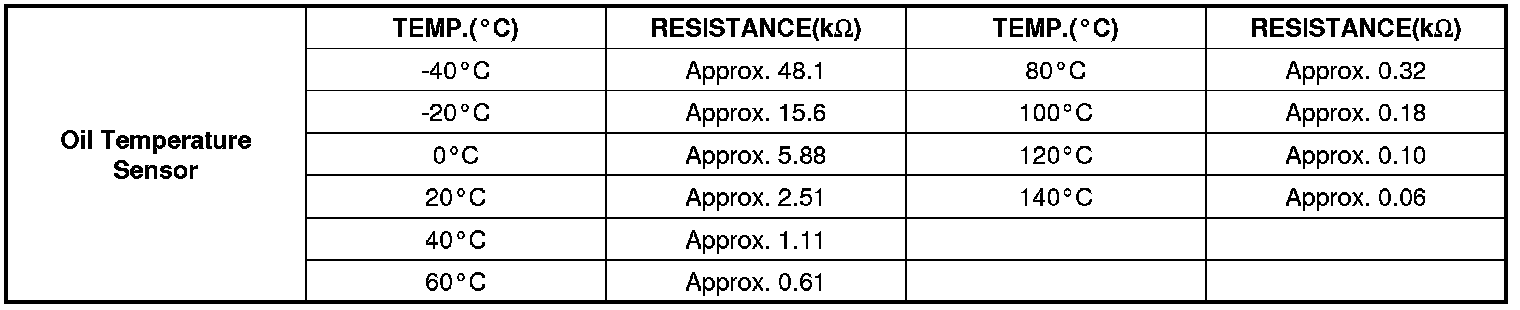

Specification

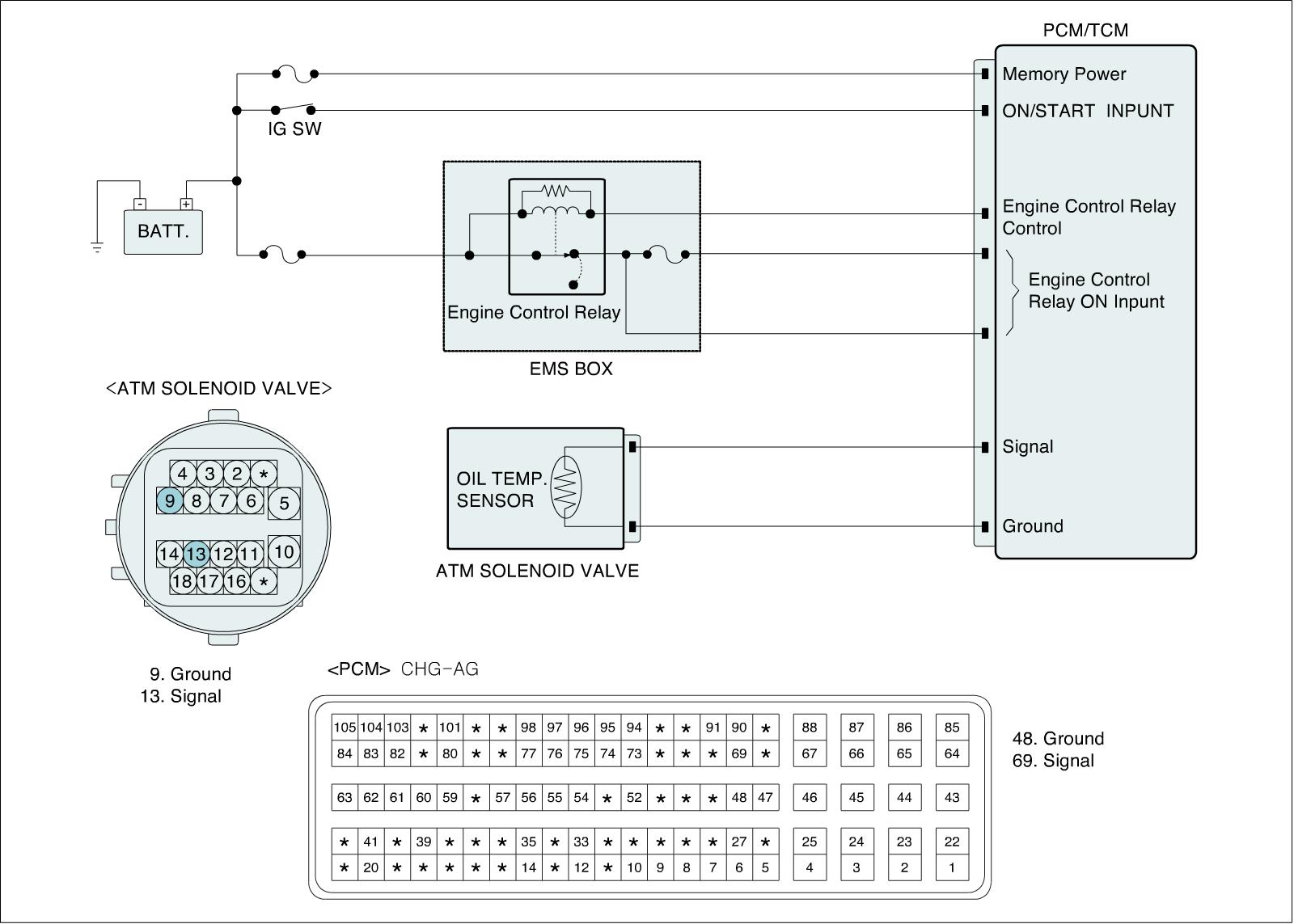

Diagnostic Circuit Diagram
