Scantool Diagnostics

Automatic Transaxle
P0712 Transmission Fluid Temperature Sensor \'A\' Circuit Low Input - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Selet "Currnet Data"mode and monitor "Oil temperature sensor" parameter.

Specification :Increasing Gradually








Fig 1) Normal Data
Fig 2) Open Data

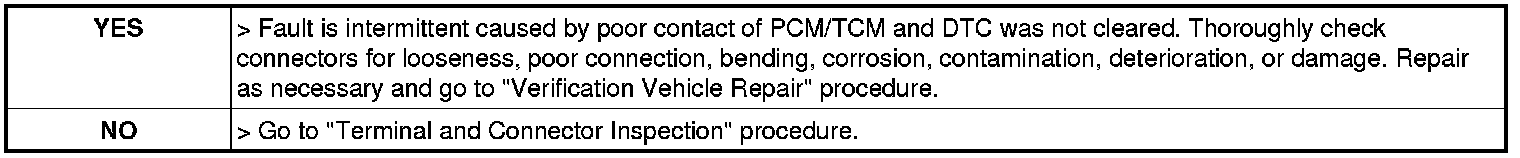

4. Is the Oil temperature sensor within specification?
