P0712 Transmission Fluid Temperature Sensor \'A\' Circuit Low Input - Inspection/Repair:_:Component Inspection

Component Inspection

"Oil temperature sensor" Inspection
1. Ignition off.
2. Disconnected Oil temperature sensor connector.
3. Measure the resistance across the two terminals of the Oil temperature sensor.

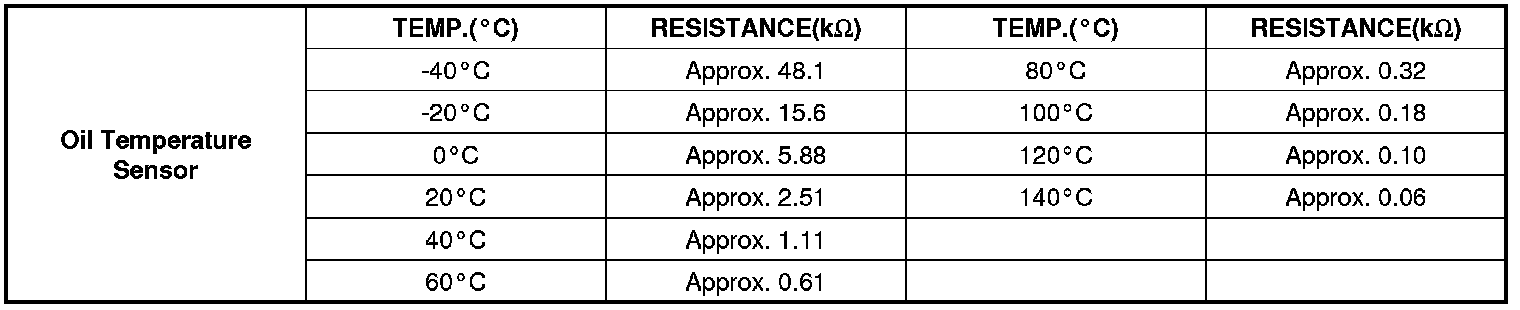

Specification :See blow Oil temperature sensor specification table




[Reference data]





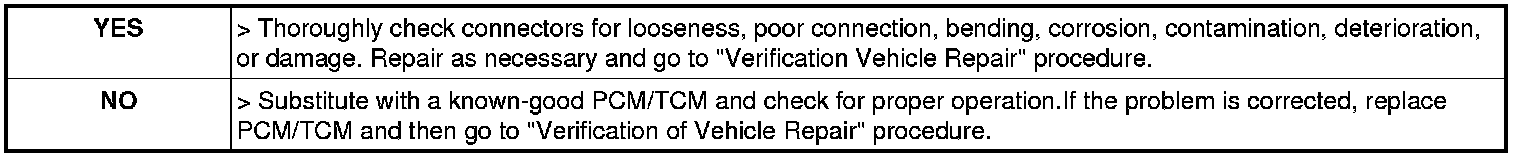

4. Is the measured resistance within specifications?





PCM/TCM Inspection
1. Ignition off & Engine Off.
2. Connect Oil temperature sensor connector.
3. Connect GDS to Data Link Connector(DLC) and select Simulation mode.
4. Input 0 -> 5 vlotage at Oil temperature sensor signal line by simulation mode and Monitoring Oil temperature sensor.








Fig 1) Simulation Output 1.00V -> 73°C
Fig 2) Simulation Output 2.00V -> 34°C
** It is subject to change vehicle condition.
5. Is measured Oil temperature sensor value changed by input voltage?
