Scantool Diagnostics

Automatic Transaxle
P0705 Transmission Range Sensor Circuit Malfunction - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & engine "OFF".
3. Selet "Currnet Data"mode and monitor "Inhibitor switch" parameter.
4. Change a shift lever from P-range to D-range.

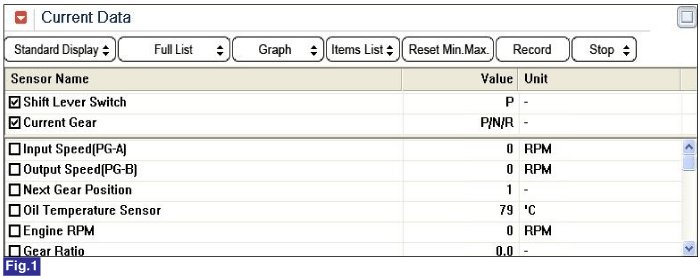

Fig 1) P range
Fig 2) R range
Fig 3) N range

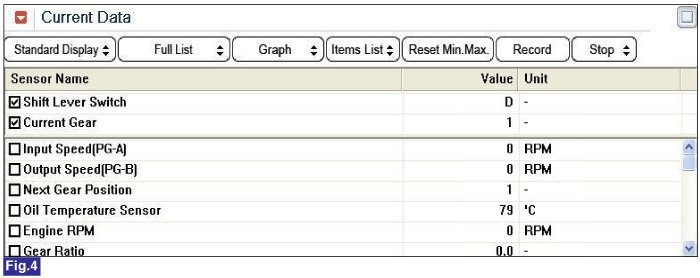

Fig 4) D range

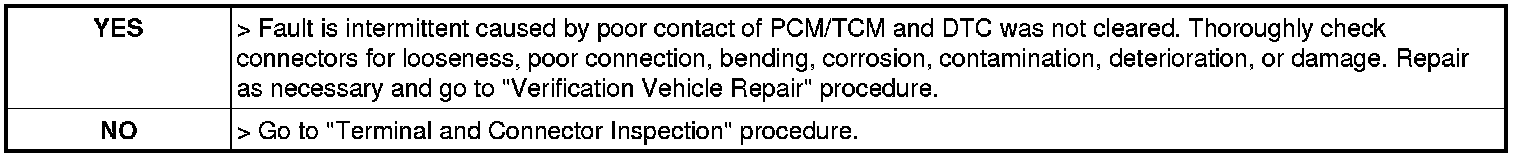

5. Is the Inhibitor switch value chaged in specification?
