General Information

Automatic Transaxle
P0705 Transmission Range Sensor Circuit Malfunction - General Information

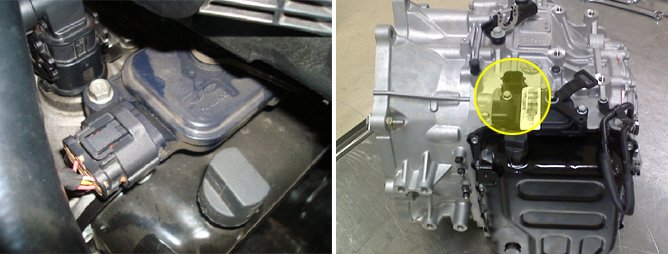

Component Location





General Description

Shift lever positions P-range(Parking), R-range(Reverse), N-range(Neutral) and D-range(Driving) are changed by driver need and lever position is sent to PCM/TCM to control a gear ration.

DTC Description

This code is set when undefined code is input to PCM/TCM without specific of transmission pattern table.

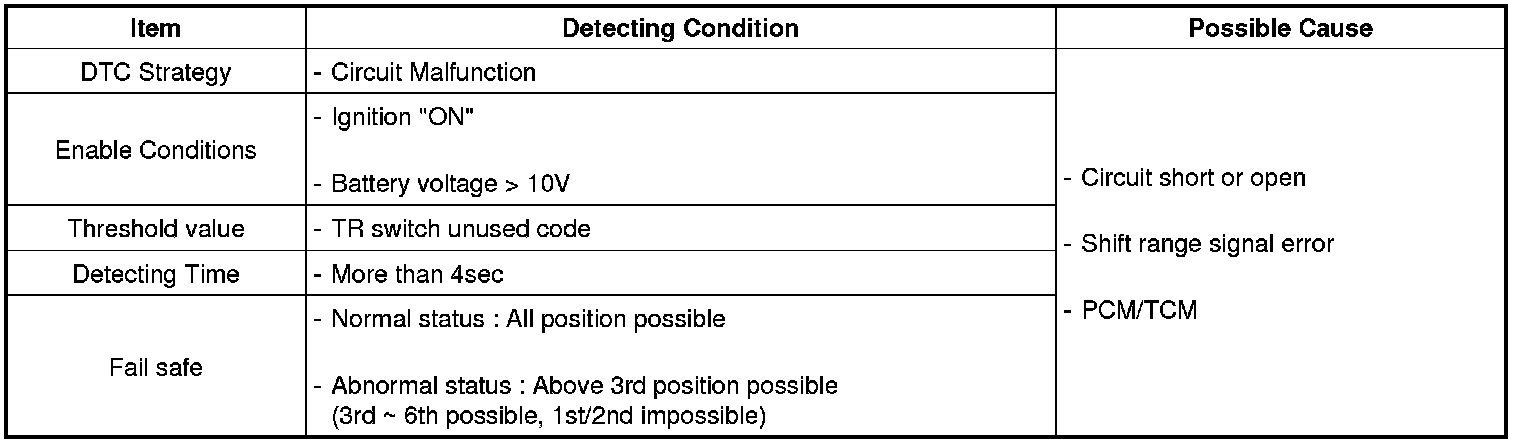

DTC Detecting Condition

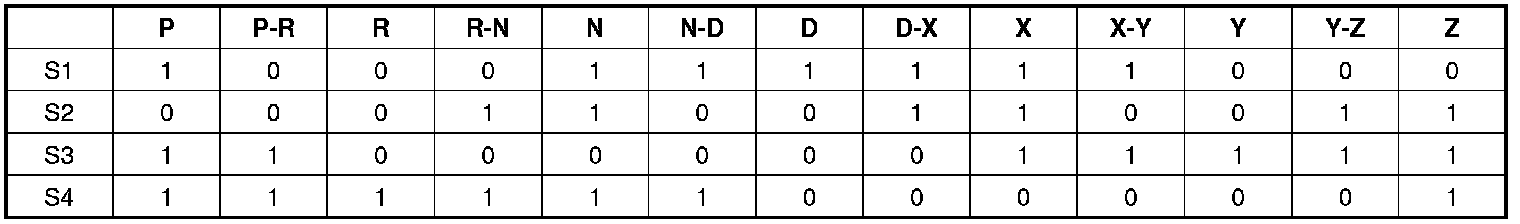

Specification

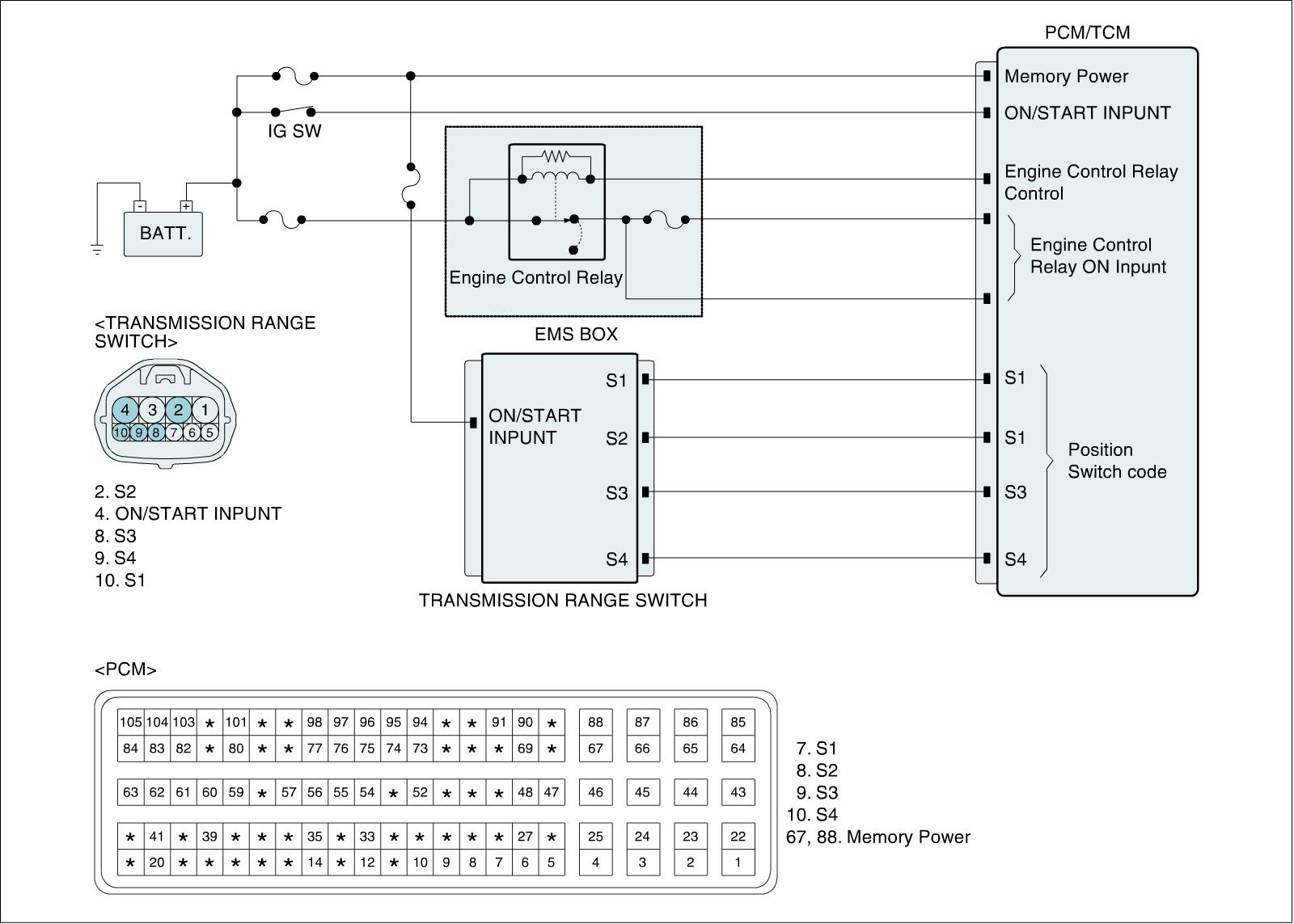

Diagnostic Circuit Diagram

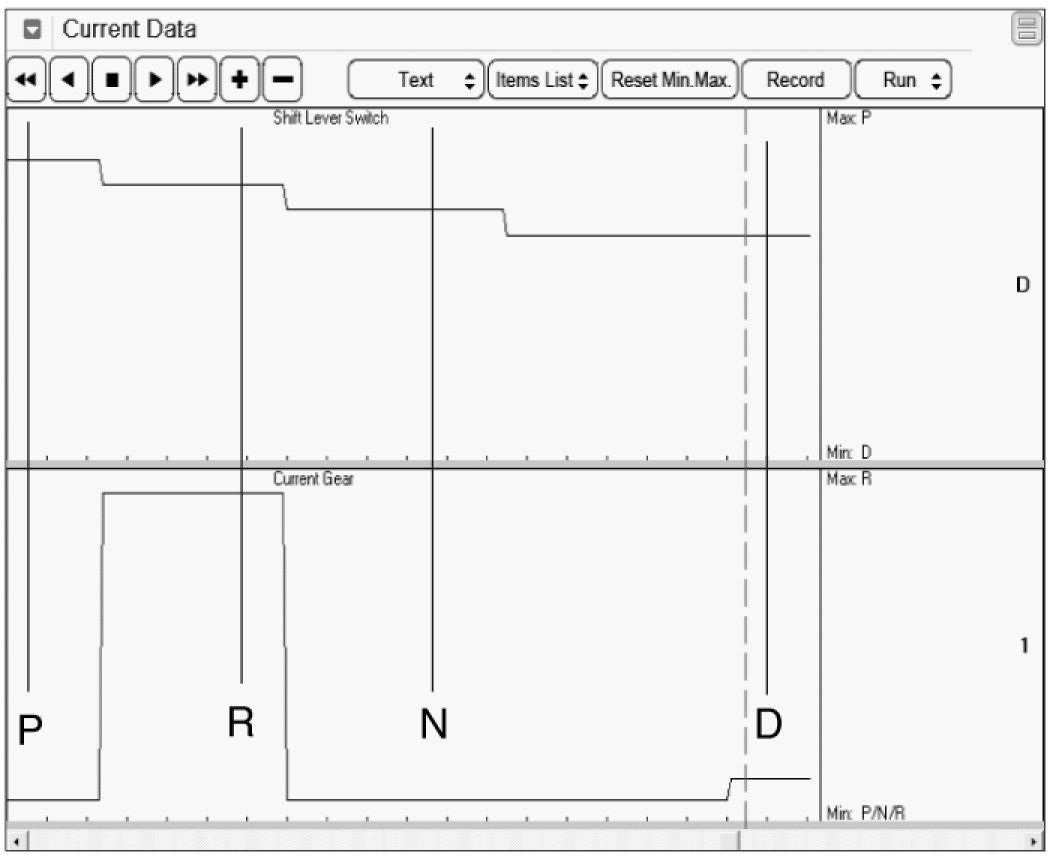

Signal Waveform & Data
