P0699 Sensor Reference Voltage \'C\' Circuit High - General Information

Component Location





General Description

The PCM provides a 5volt reference voltage to the Acceleration Position Sensor1(APS1). The PCM monitors reference voltage deviation from the power supply circuit of the APS1.

DTC Description

PCM sets DTC P0699 if the PCM detects reference voltage higher than threshold value.

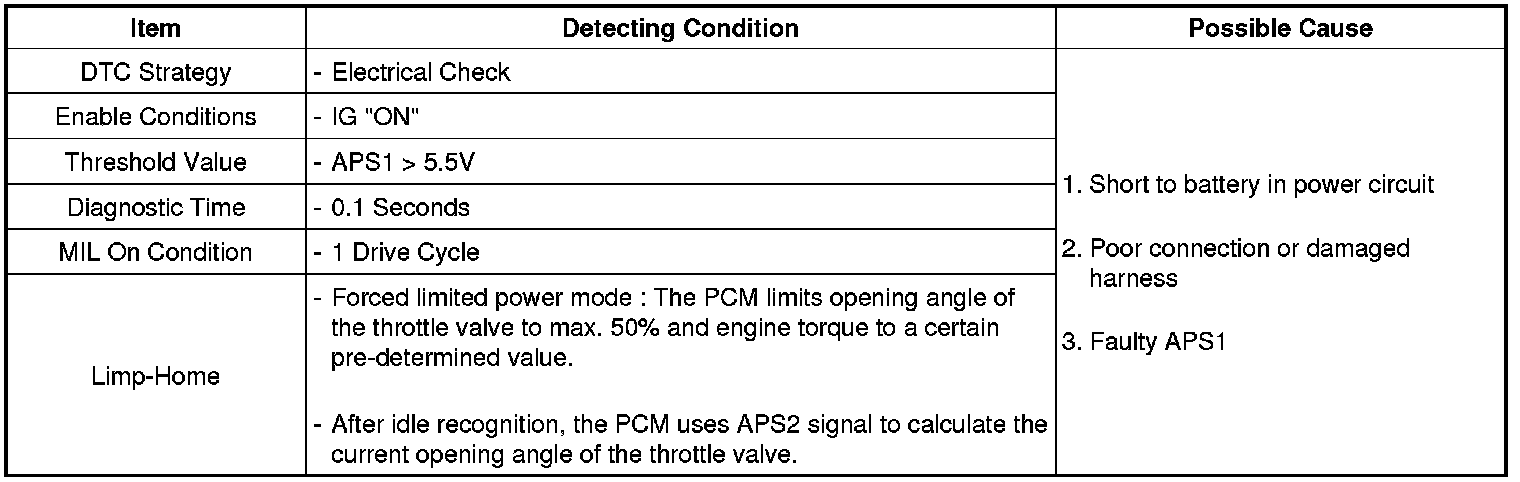

DTC Detecting Condition





Diagnostic Circuit Diagram
