General Information

Engine Control
P0698 Sensor Reference Voltage \'C\' Circuit Low - General Information

Component Location





General Description

The PCM provides a 5volt reference voltage to the Acceleration Position Sensor1(APS1). The PCM monitors reference voltage deviation from the power supply circuit of the APS1.

DTC Description

PCM sets DTC P0698 if the PCM detects reference voltage is lower than threshold value.

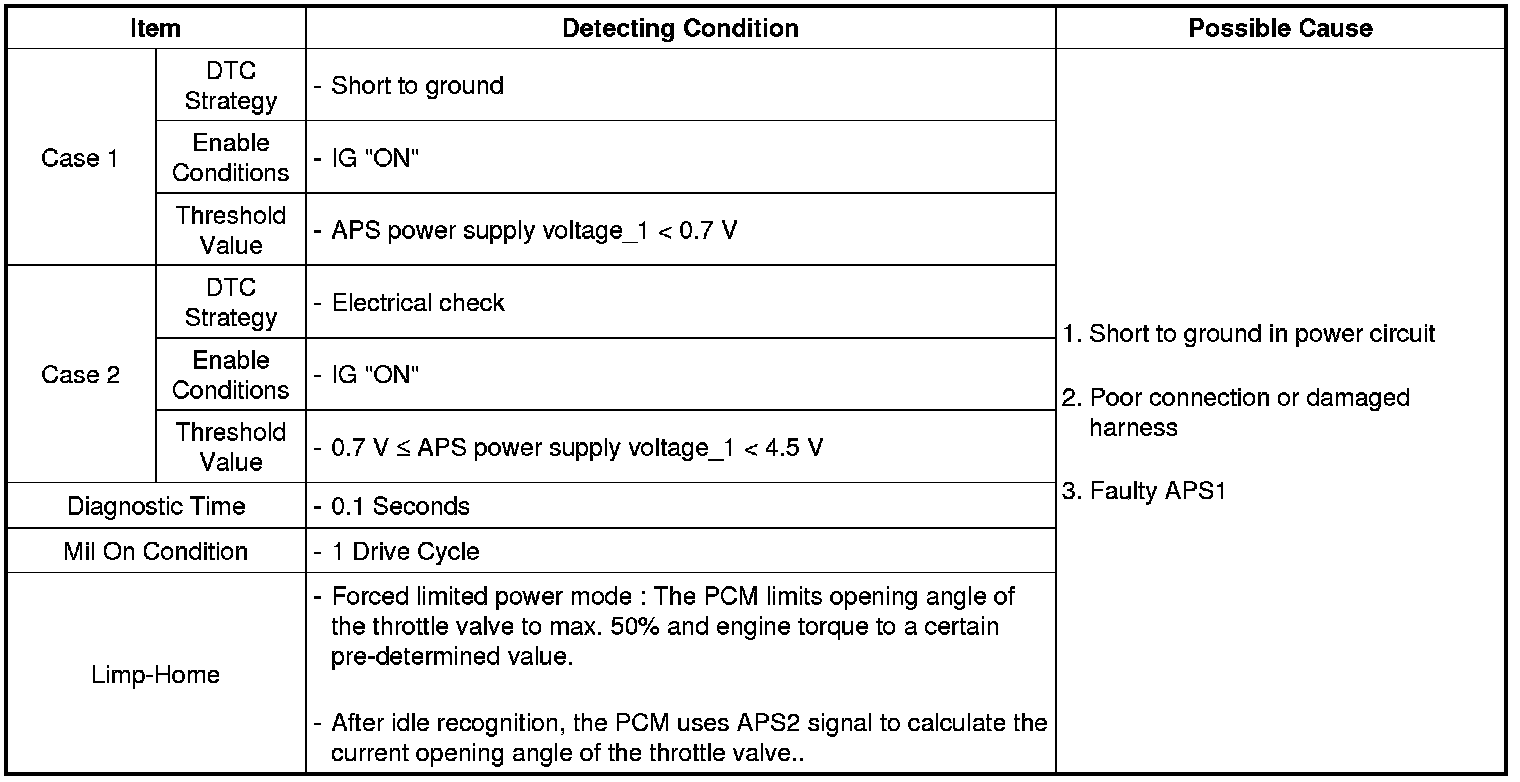

DTC Detecting Condition





Diagnostic Circuit Diagram
