General Information

Engine Control
P0652 Sensor Reference Voltage \'B\' Circuit Low - General Information

Component Location





General Description

The PCM provides a 5 volt reference voltage to the Throttle Position Sensor(TPS). The PCM monitors reference voltage deviation from the power supply circuit of the TPS.

DTC Description

PCM sets P0652 when detects a reference voltage is out of normal range.

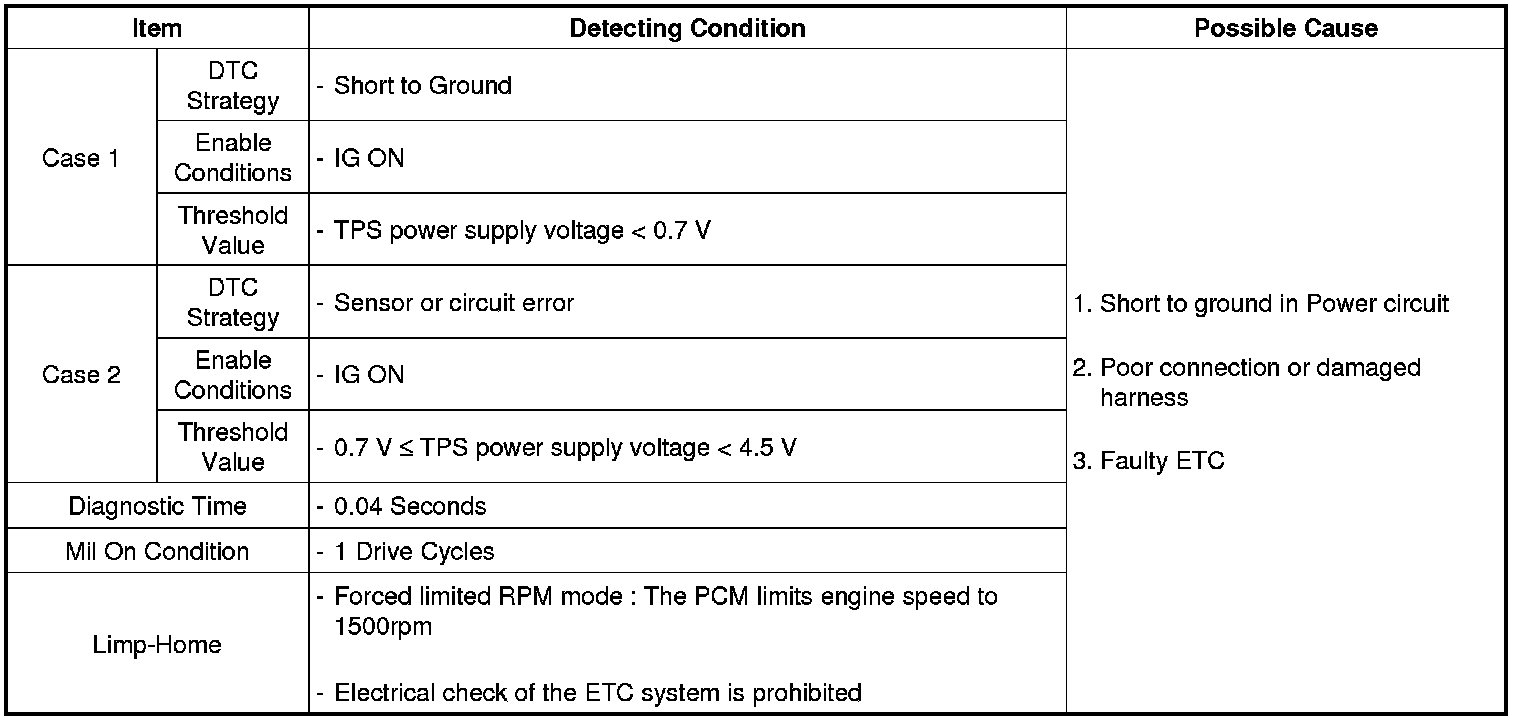

DTC Detecting Condition





Diagnostic Circuit Diagram
