Component Inspection

Engine Control
P0643 Sensor Reference Voltage \'A\' Circuit High - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG key ON.

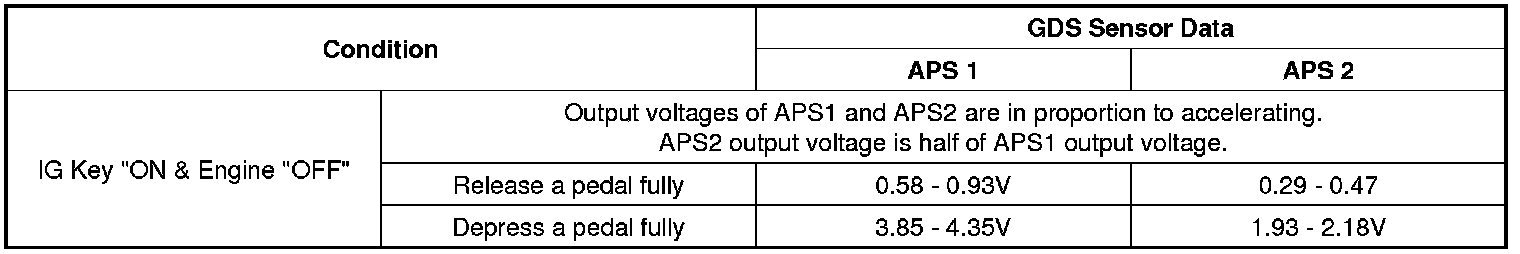

2. Check sensor data as below.




3. Data Analysis

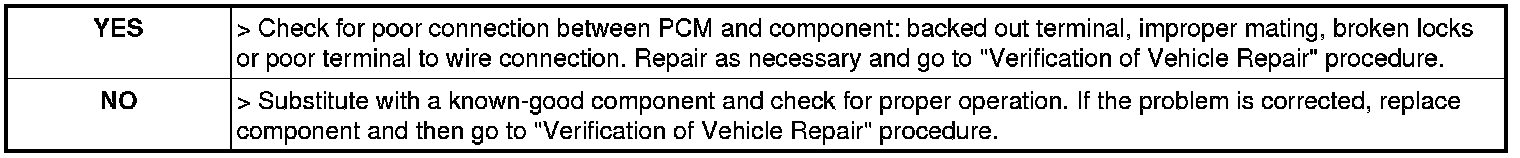

4. Is data in accordance with "Data Anaysis"?
