Component Inspection

Engine Control
P0642 Sensor Reference Voltage \'A\' Circuit Low - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG key ON.

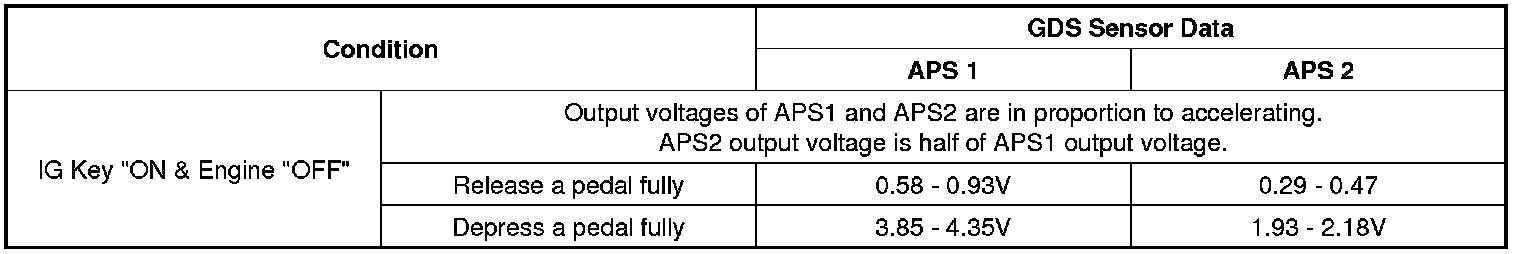

2. Check sensor data as below.

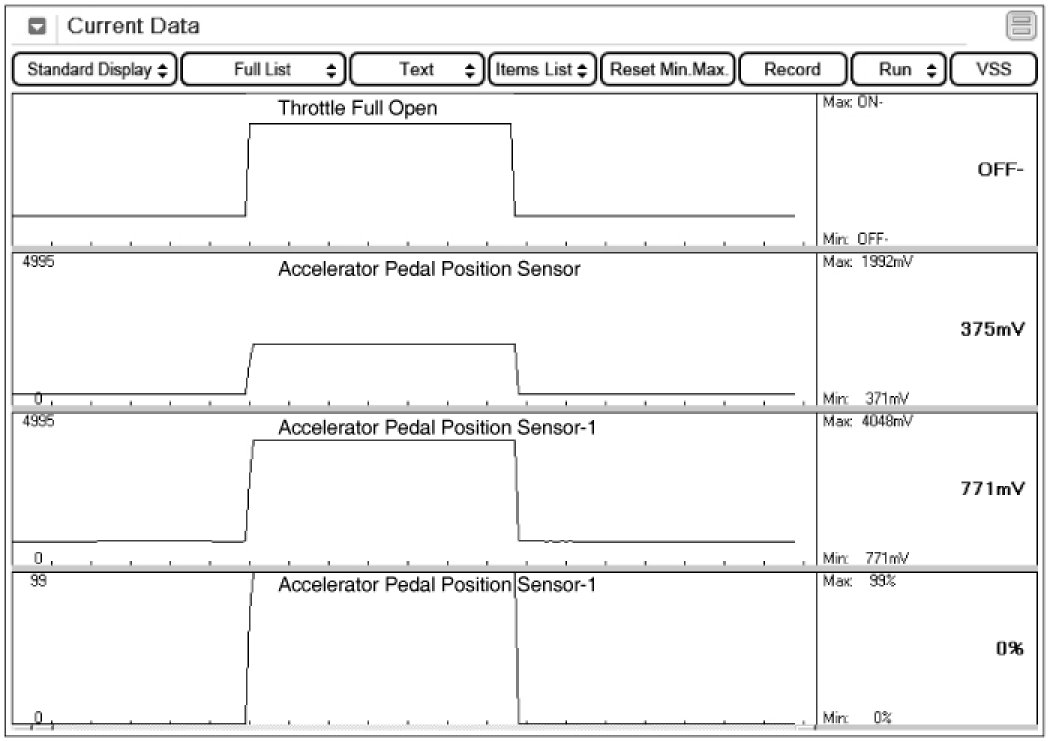

3. Data Analysis

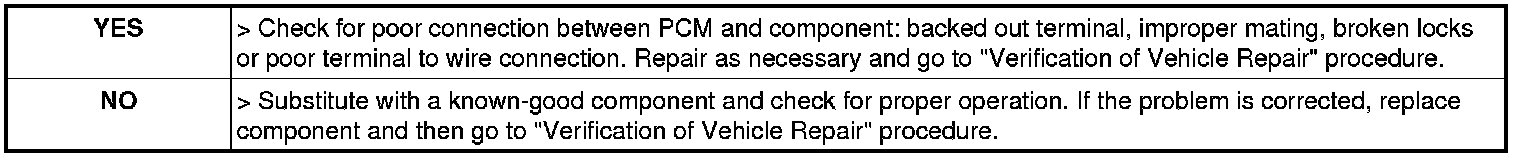

4. Is data in accordance with "Data Anaysis"?
