P0620 Alternator Control Circuit - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Engine start.

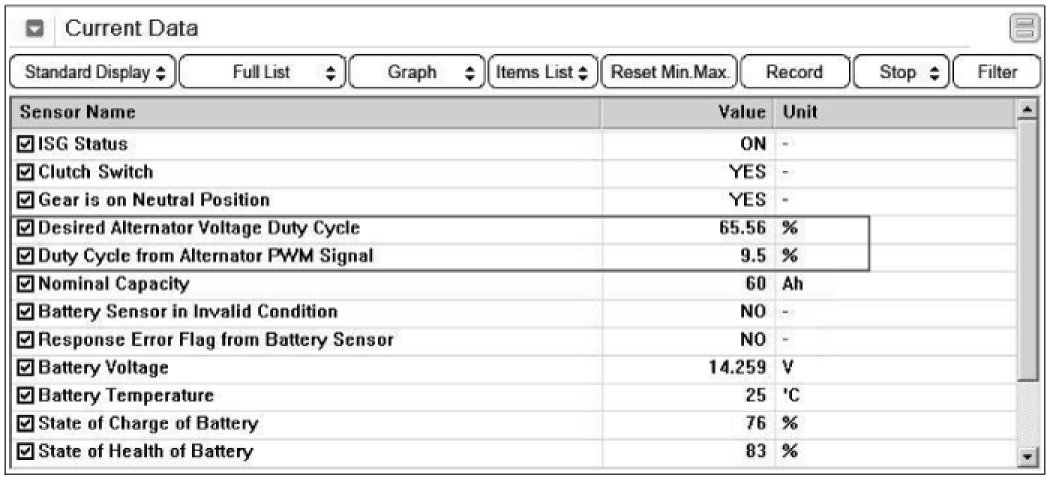

3. Monitor "Alternator duty cycle, PWM signal" parameter on GDS.

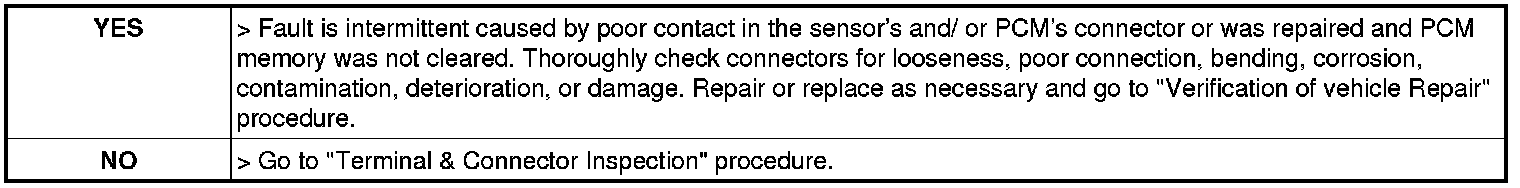

4. Are the parameters displayed correctly?
