W/Harness Inspection

Engine Control
P0605 Internal Control Module Read Only Memory(ROM) Error - Inspection/Repair:_:W/Harness Inspection

Back Up Voltage Inspection

1. Ignition "OFF".
2. Disconnect PCM connector.
3. Ignition "ON".
4. Measure voltage between terminal 6 of the PCM harness connector and chassis ground.

Specification :Remain stable at battery voltage

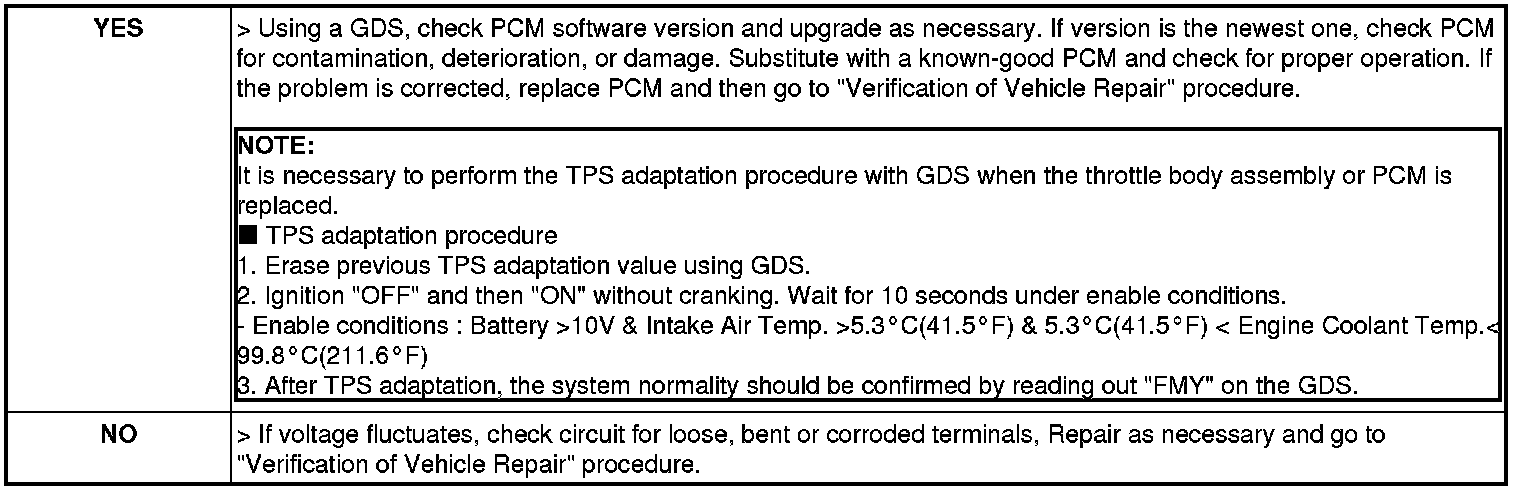

5. Are circuits remaining stable at battery voltage?
