Scantool Diagnostics

Automatic Transaxle
P0601 Internal Control Module Memory Check Sum Error - Scantool Diagnostics

Monitor GDS Data

1. Ignition ON & Engine OFF.
2. Connect GDS to Data Link Connector(DLC).
3. Selet "Diagnostic Trouble Codes(DTCs)"mode and monitor "DTC Status" parameter.
4. Clear recorded DTC using GDS.
5. Ignition switch OFF <-> Ignition switch ON 2 - 3 times and Selet "Diagnostic Trouble Codes(DTCs)"mode and monitor "DTC Status" parameter.

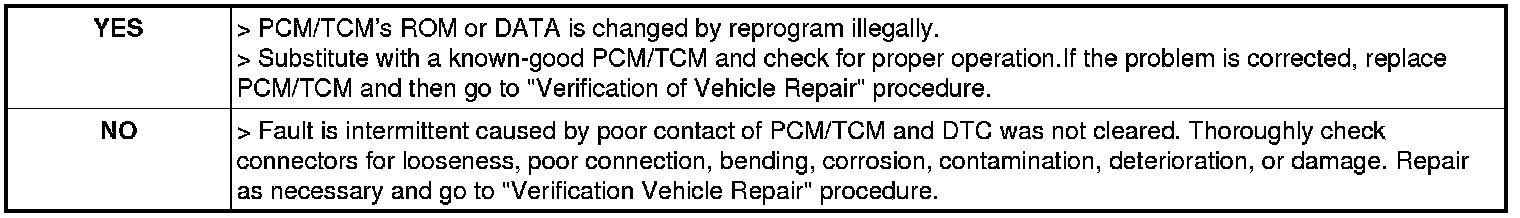

6. Is the DTC present ?
