System Inspection

Engine Control
P0562 System Voltage Low - Inspection/Repair:_:System Inspection

System Inspection

1. Start the engine and raise the engine speed to 2,500 - 3,000 RPM.
2. Turn ON all electrical loads by turning on the headlamps, and by turning on the high blower motor, etc.
3. Monitor the battery(ignition) voltage parameter on the Scantool data list.

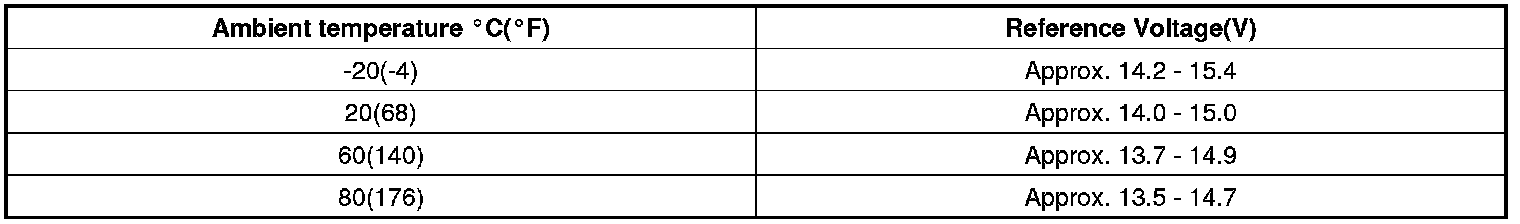

Specification :

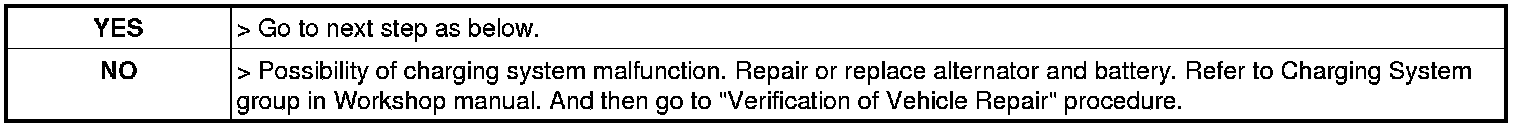

4. Is the battery voltage within the specification?
