Component Inspection

Engine Control
P0532 A/C Refrigerant Pressure Sensor \'A\' Circuit Low Input - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG 'OFF'.

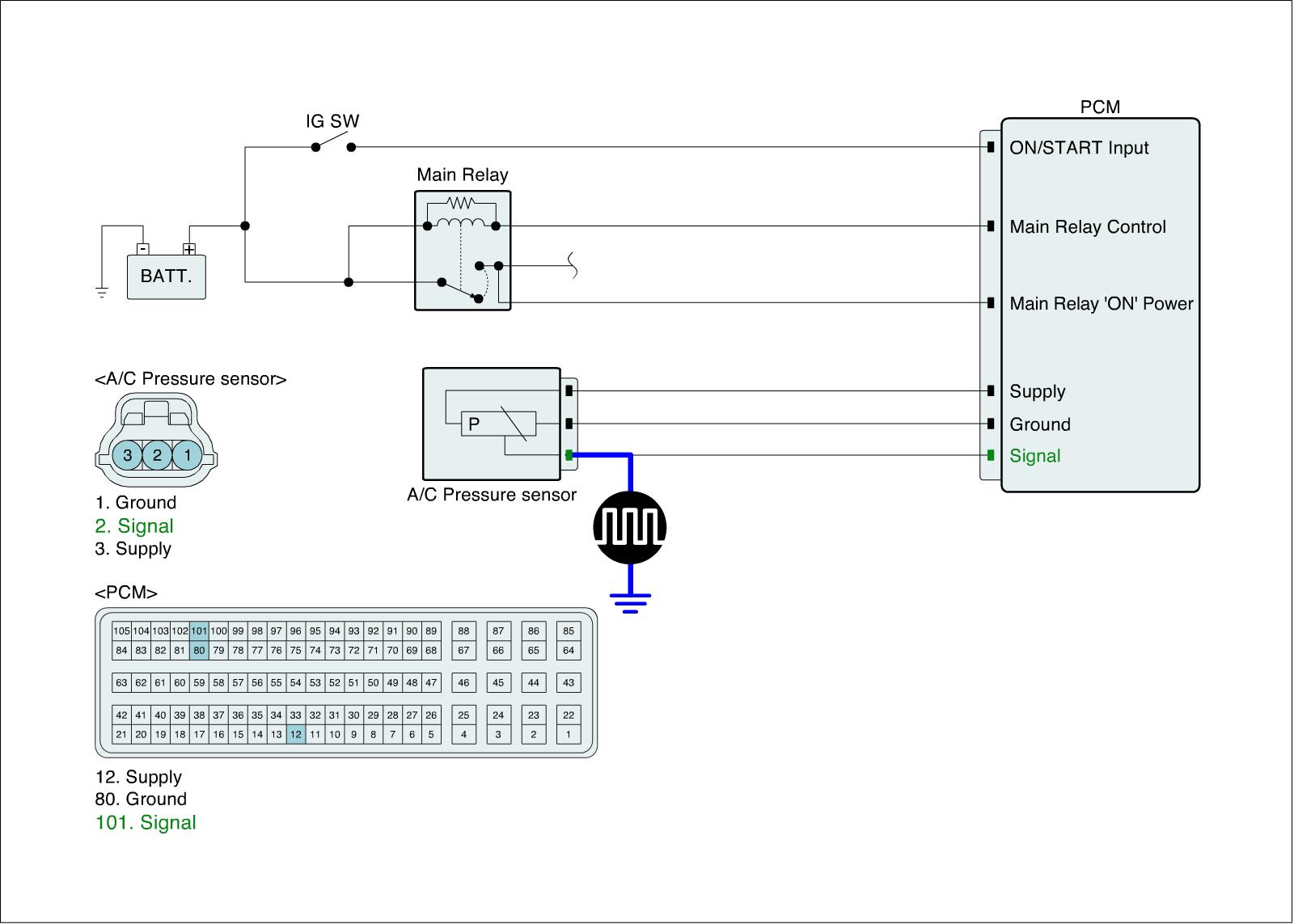

2. Connect prove to signal terminal as below and select 'Ocilloscope' menu on GDS.
Channel A (+): Signal terminal of A/C pressure sensor, (-): Ground.
3. Engine start and check the signal with operation.

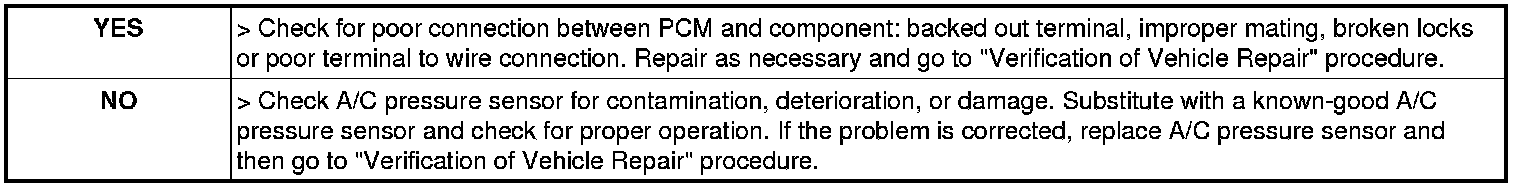

4. Is waveform within specification?
