Component Inspection





Engine Control
P0447 Evaporative Emission System-Vent Control Circuit Open - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG KEY 'OFF'.
2. Disconnect CCV harness connector.

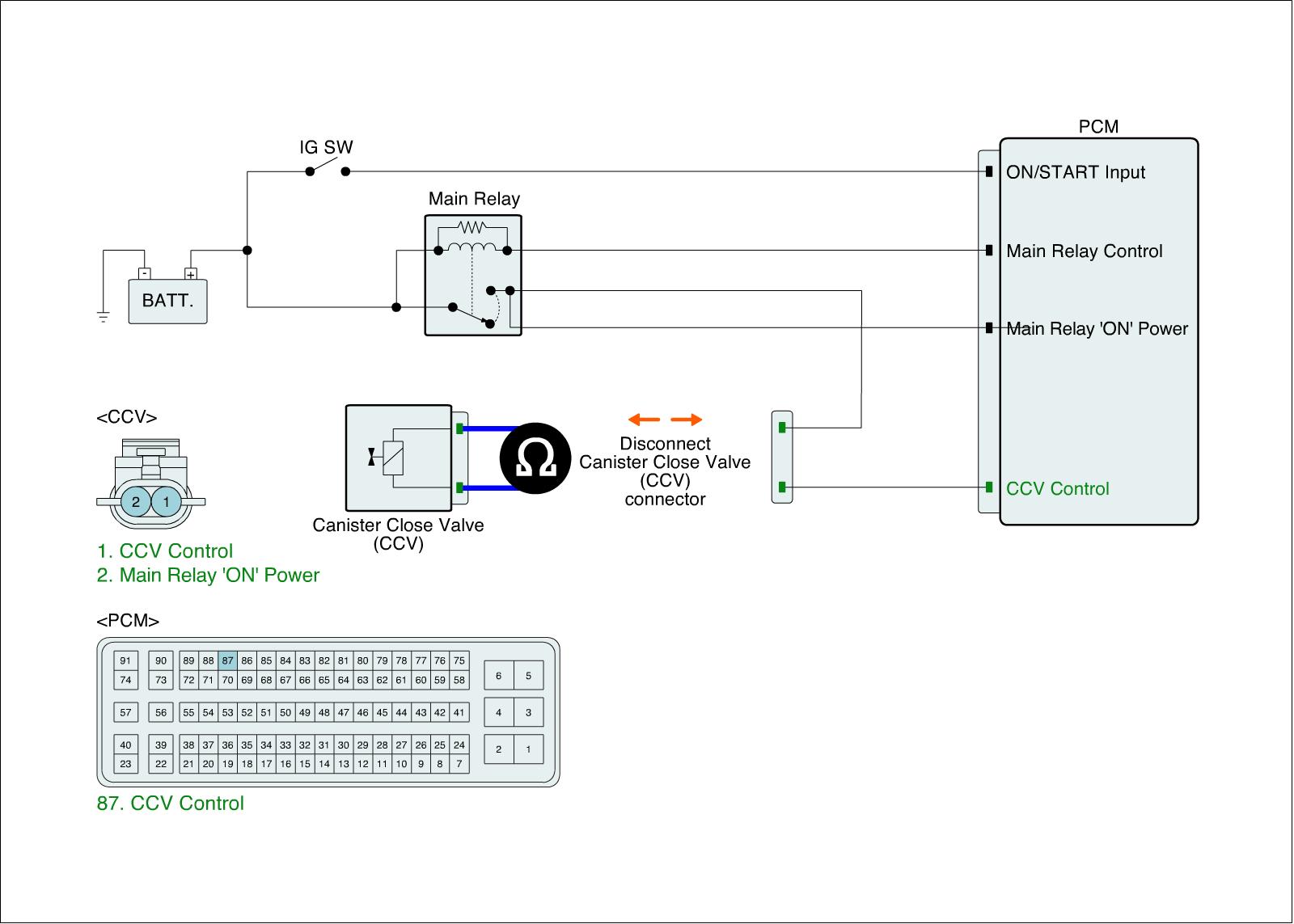

3. Measure resistance between control terminal and power terminal of CCV connector. (Component side)
Specification

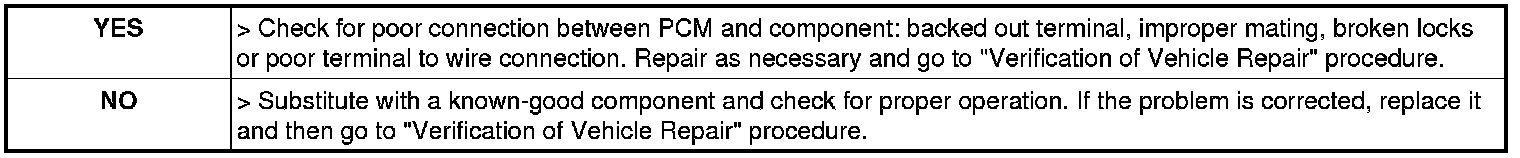

4. Is resistance within the specification?
