Component Inspection





Engine Control
P0445 Evaporative Emission System-Purge Control Valve Circuit Shorted - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect PCSV connector

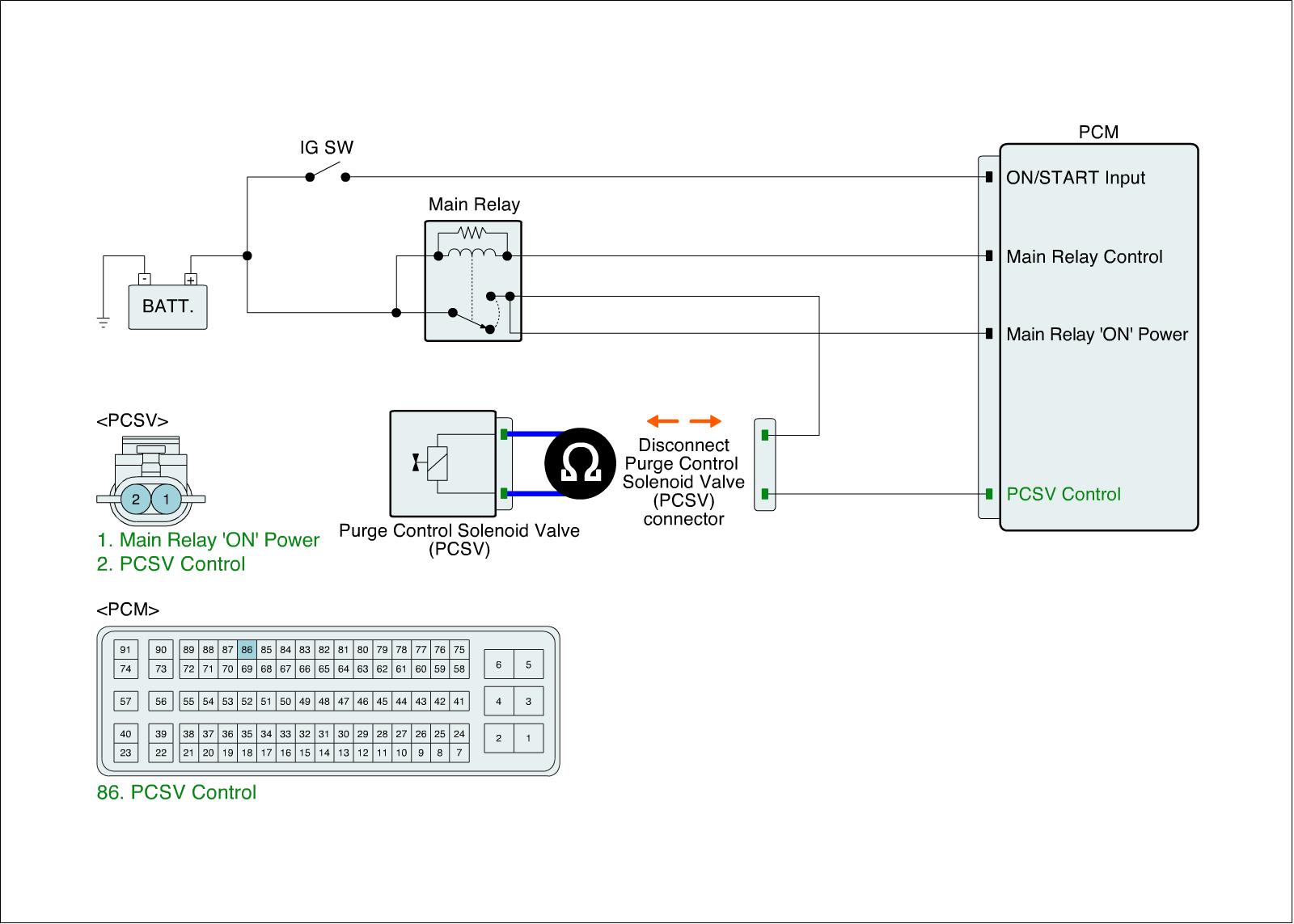

3. Measure resistance between power terminal and signal terminal of PCSV connector(Component side).

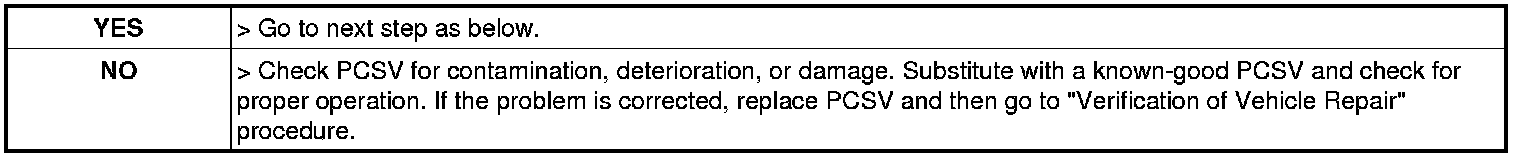

4. Is resistance within the specification?
