P0299 Turbocharger/Supercharger Underboost - Inspection/Repair:_:Component Inspection

Component Inspection

Inspect Resistance
1. Select 'Actuation Test' mode and execute 'Turbo Charger Bypass Valve' item.
2. Disconnect RCV connector.

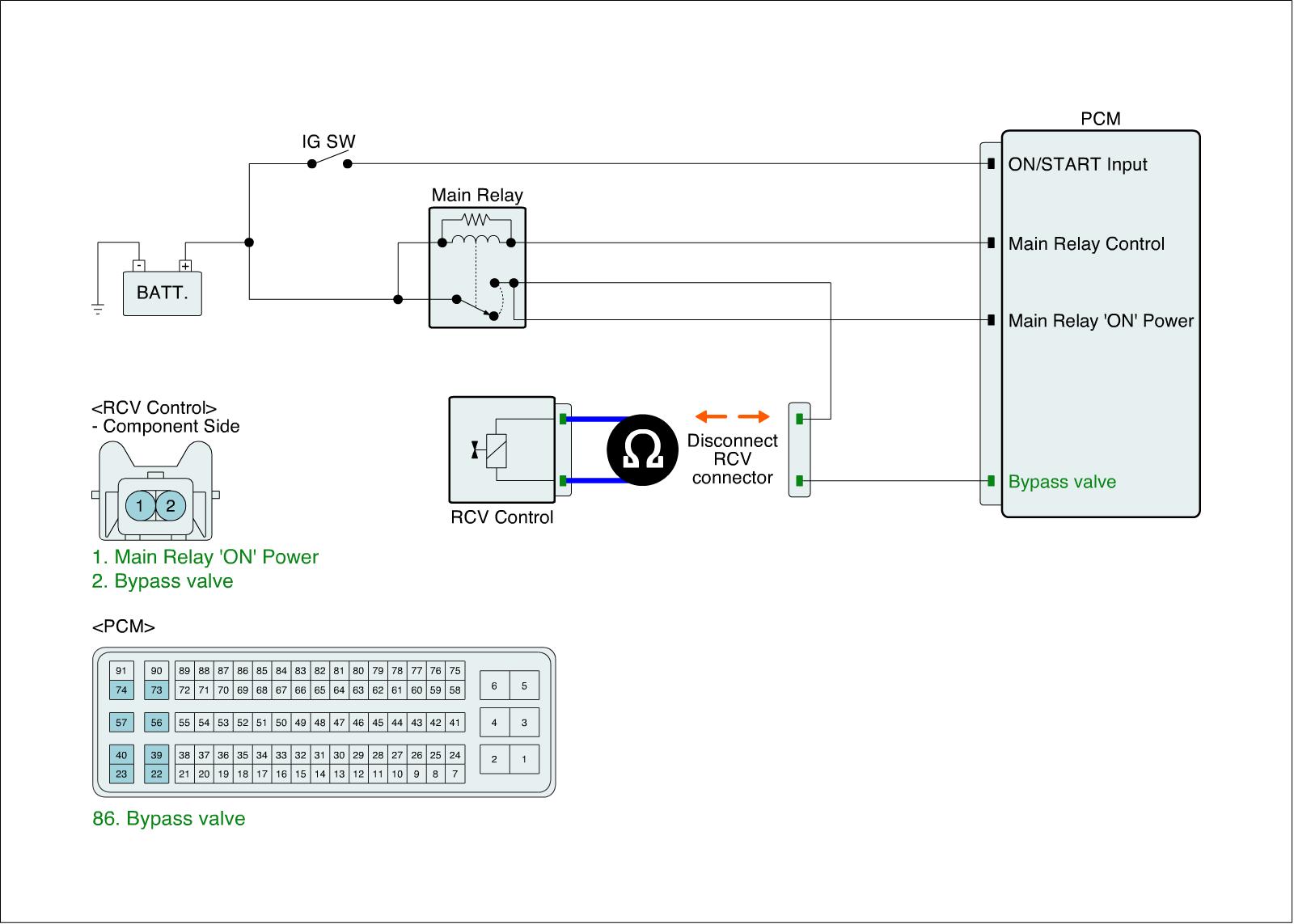

3. Measure resistance between control terminal and power terminal of the RCV connector. (Component side)
Specification :

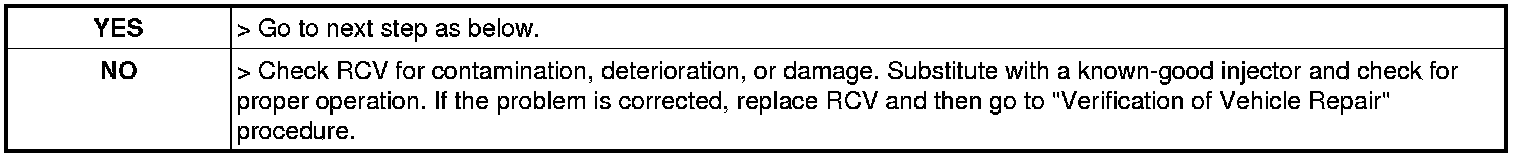

4. Is resistance within the specification?





Inspect Signal Waveform

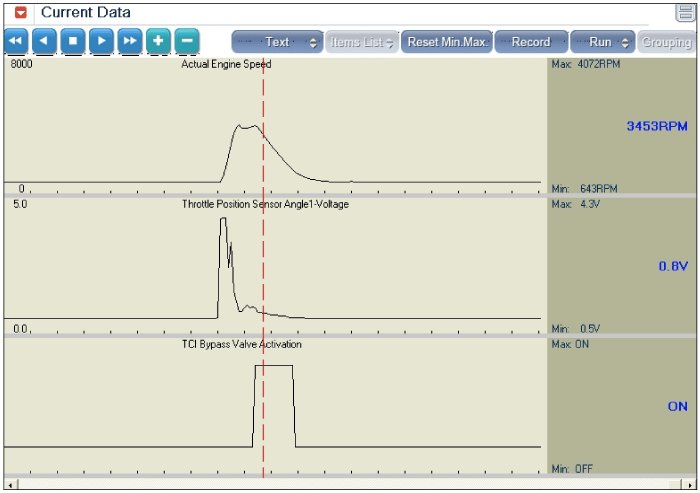

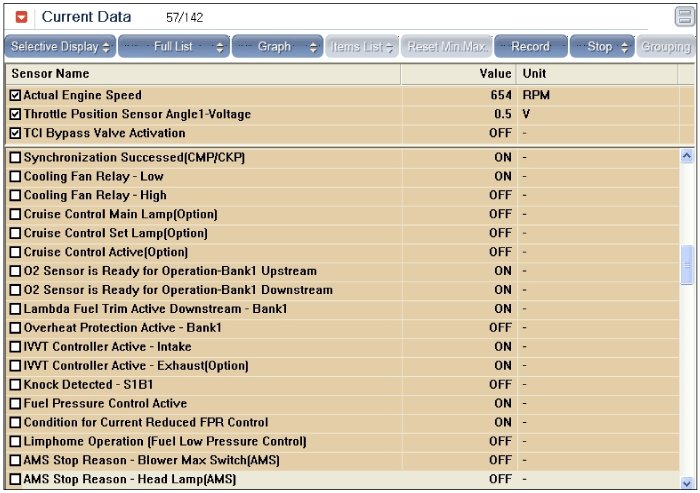

1. Monitor sensor data and signal waveform at accelerating.

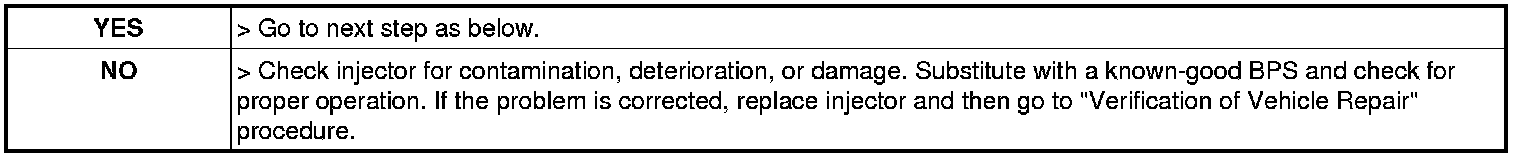

2. Is the waveform normal?
